Breakout Connectors Leads and Kits
Breakout connectors and breakout leads provide quick, easy access to sensor signals and actuator voltages and currents. Connect the breakout lead into the existing cable loom and then take the output signal from the 4 mm banana plugs into the automotive oscilloscope via one of the PicoBNC+™ Test Leads. Our breakout leads also give you access to individual wires to allow probing with a current clamp.
| Pin 1 | Green |
| Pin 2 | Red |
| Pin 3 | Blue |
| Pin 4 | Yellow |
| Pin 5 | White |
| Pin 6 | Black |
Please note that it may be possible to cause a short circuit to the oscilloscope if incorrect connections are made. Check your connections carefully, or damage might result, which will require repairs to be made at your own cost.
Always refer to wiring diagrams to identify signals. To help you to identify signals, our breakout leads are now generally manufactured using the colours in the table on the left, regardless of the number of connections.
Breakout Connector Cable Kits
PICO-PQ030

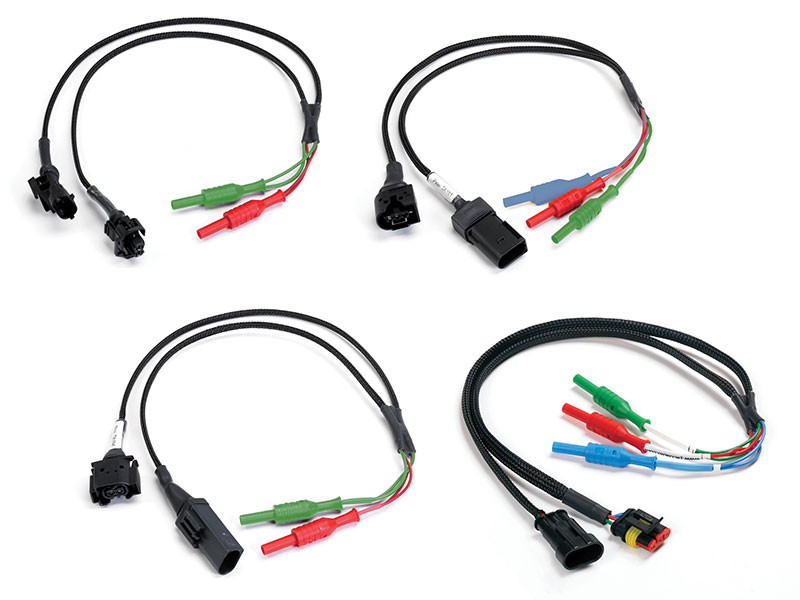

This kit includes Pico connector breakout leads for four of the more common connectors used on VW, AUDI and other manufacturers' engines.
This kit contains:

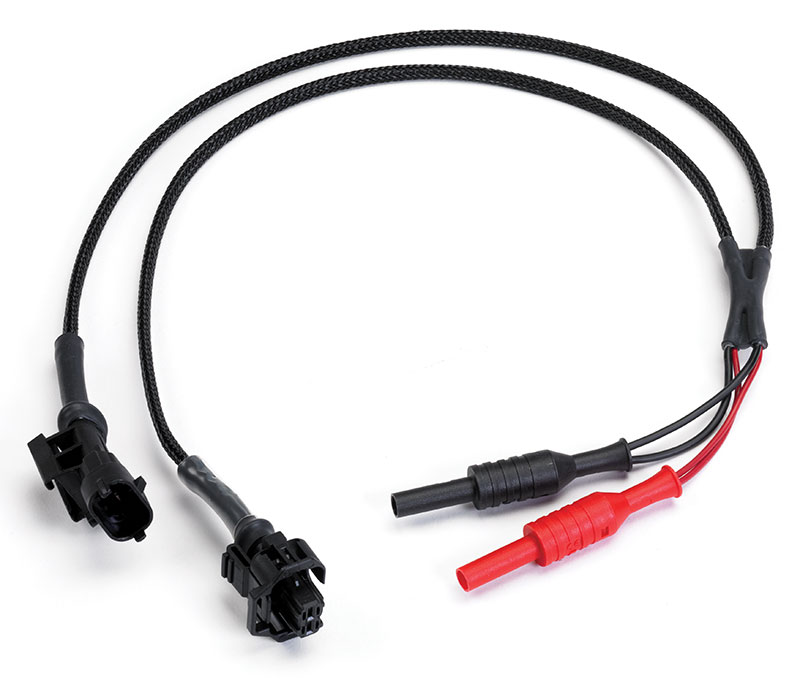

- TA190 2-pin ACS Connector Breakout Lead

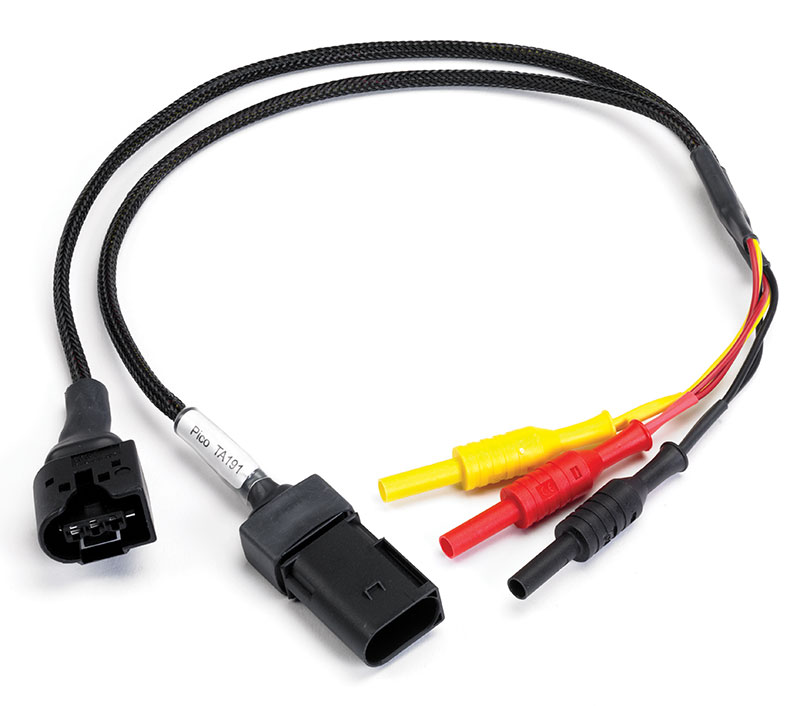

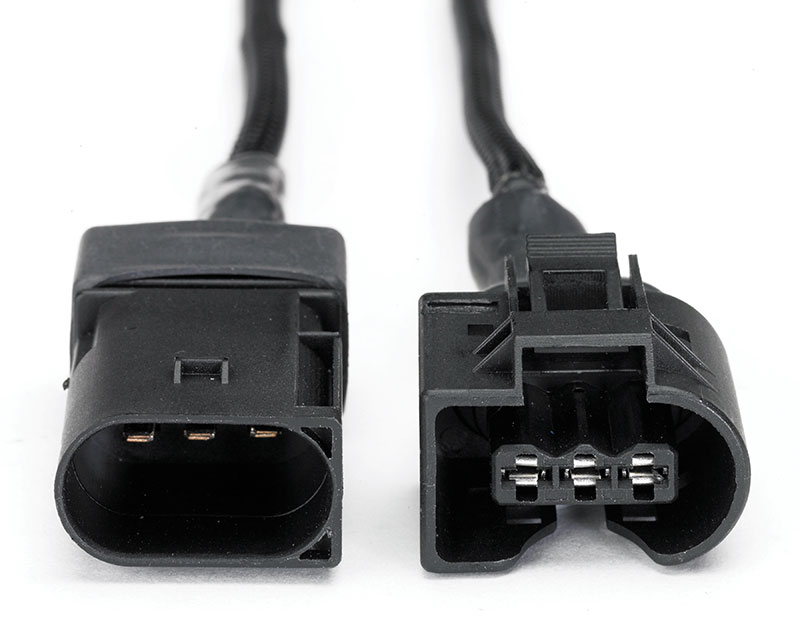

- TA191 3-pin Kostal Connector Breakout Lead

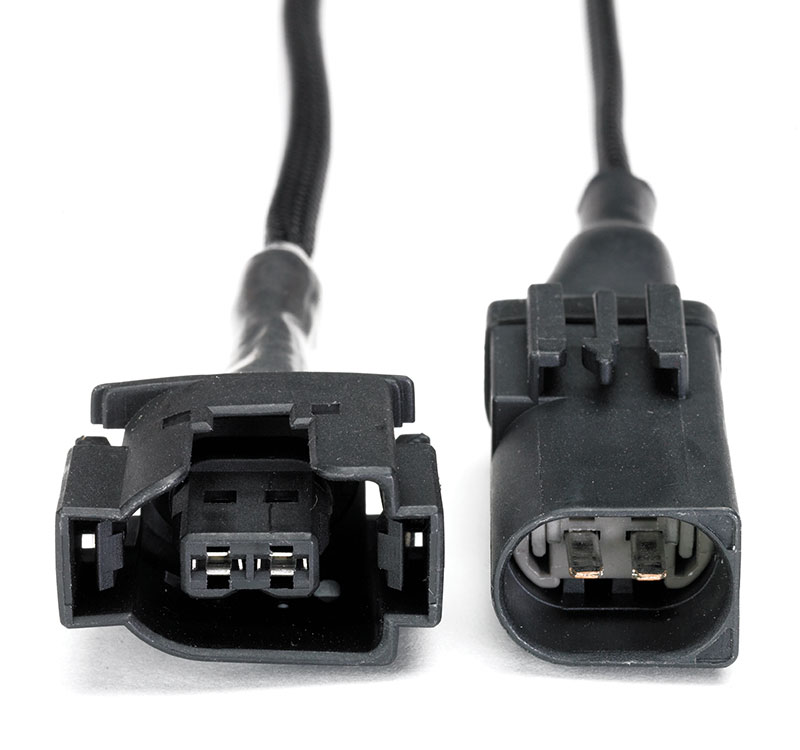

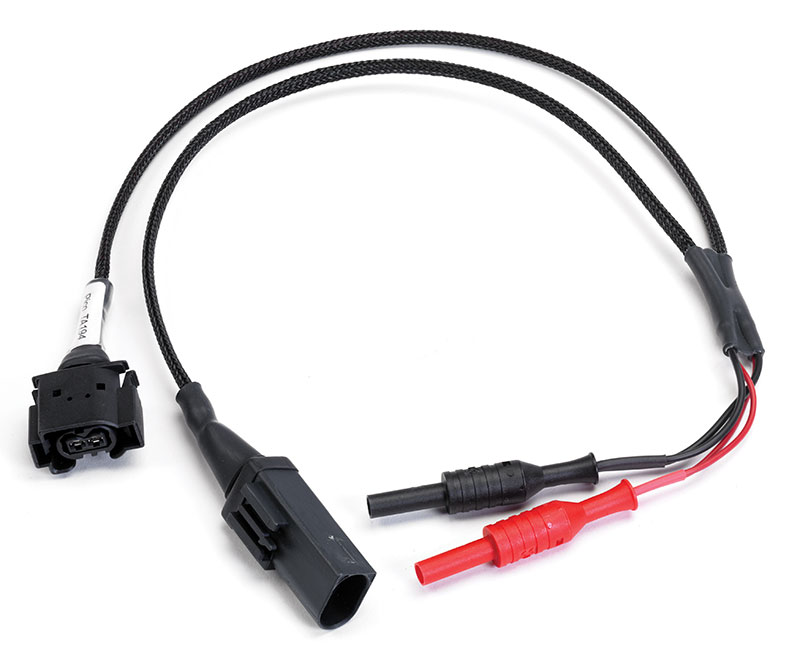

- TA194 2-pin Kostal Connector Breakout Lead
- TA267 3-pin AMP Superseal Connector Breakout Lead

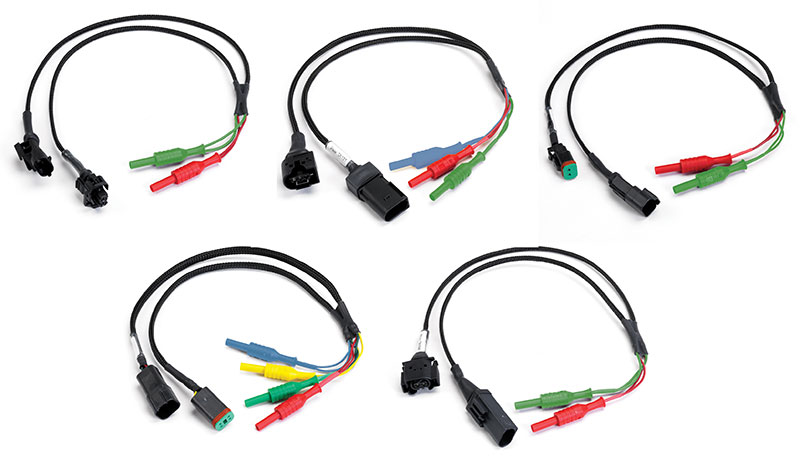

PICO-PP968
This breakout lead kit lets you take voltage readings from the multipin sensors and actuators in the engine compartment.
This kit contains:

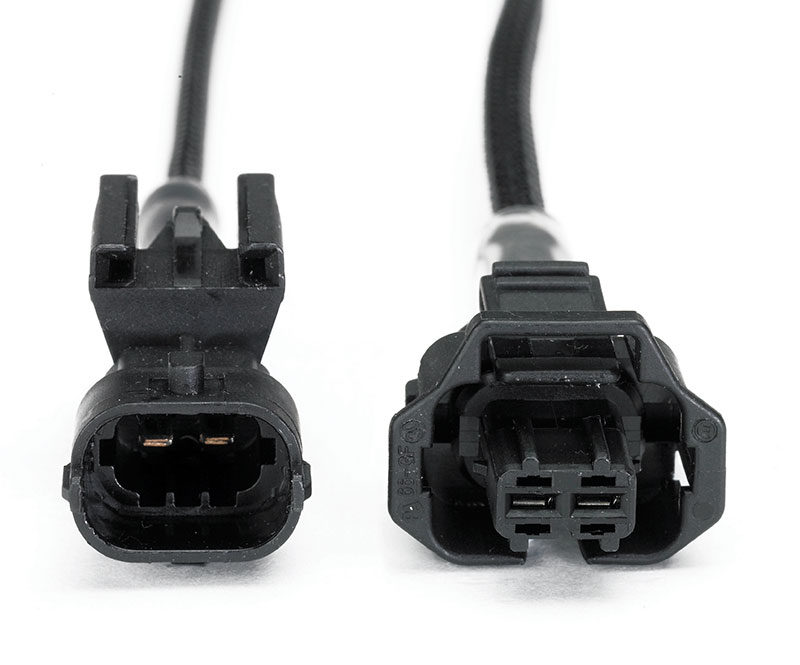

- TA190 2-pin ACS Connector Breakout Lead
- TA191 3-pin Kostal Connector Breakout Lead

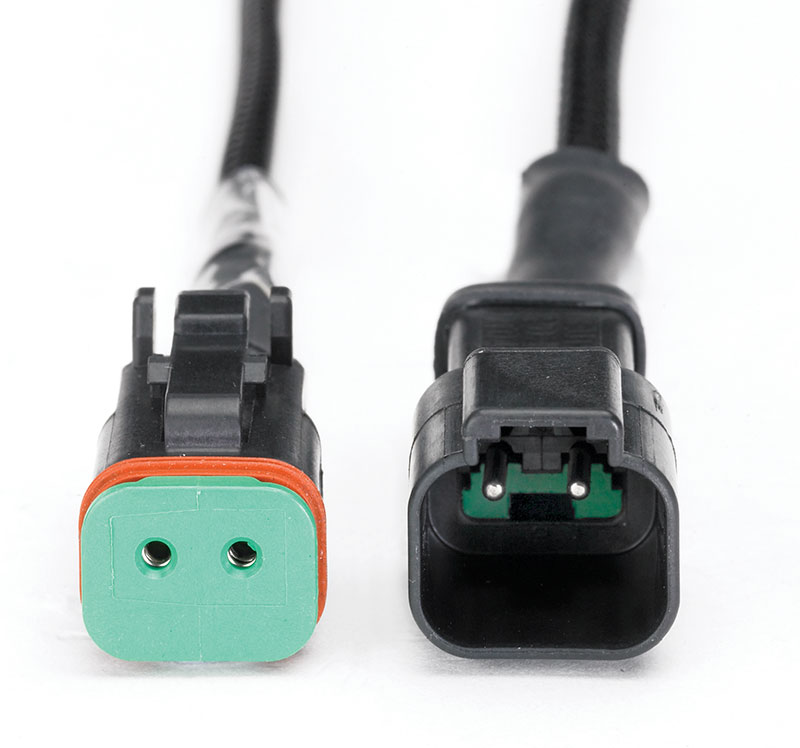

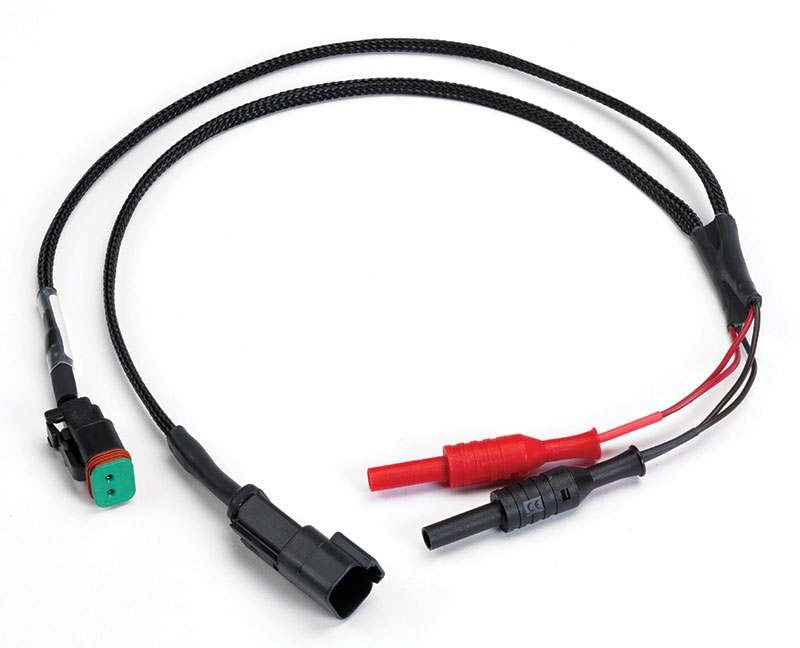

- TA192 2-pin Deutsch DTXX-2 Connector Breakout Lead

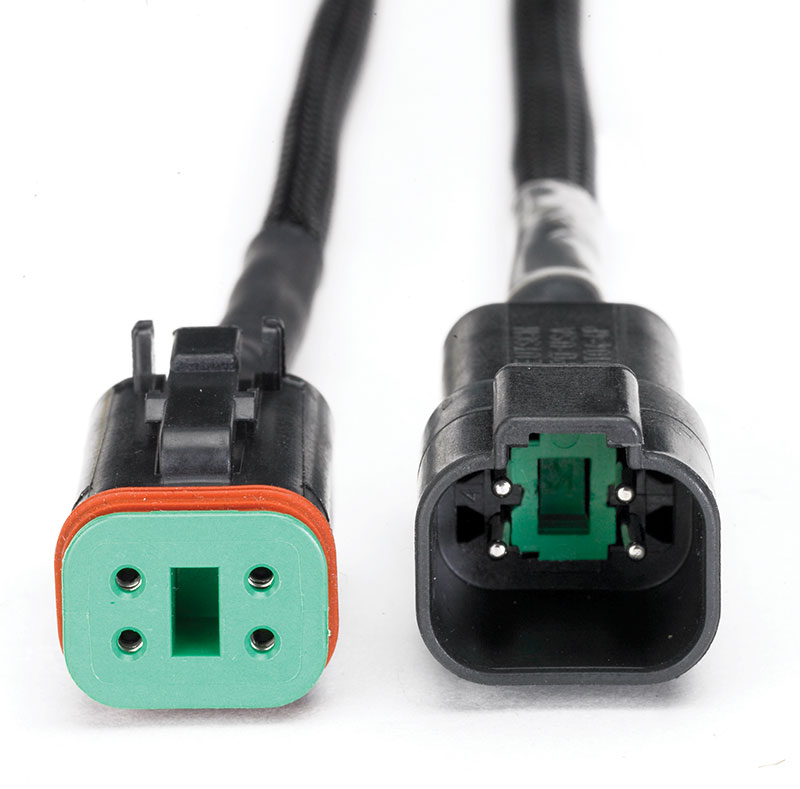

- TA193 4-pin Deutsch DTXX-4 Connector Breakout Lead
- TA194 2-pin Kostal Connector Breakout Lead
Breakout Connector Cables
Breakout Lead
PICO-TA190
Breakout Lead
PICO-TA192
Breakout Lead
PICO-TA194
Breakout Lead

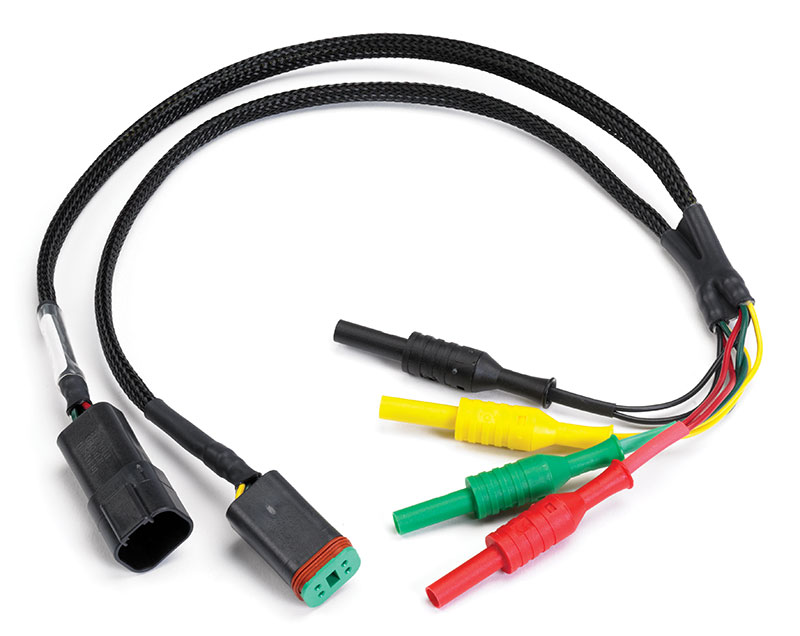

PICO-TA193
Breakout Lead
PICO-TA191
Breakout Lead

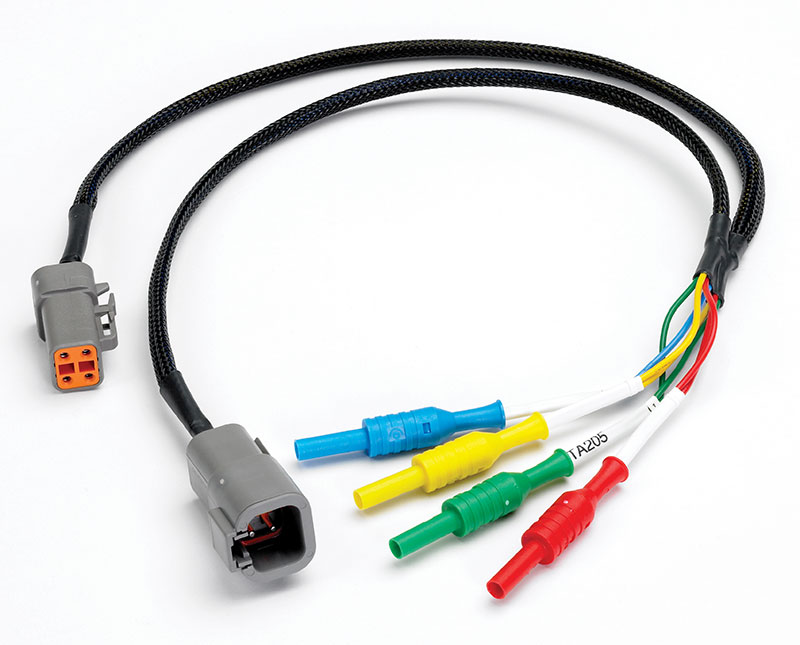

PICO-TA205
