CAN Logger Product Comparison

Overview CL1000 CL2000 CANedge1 CANedge2 CANedge3

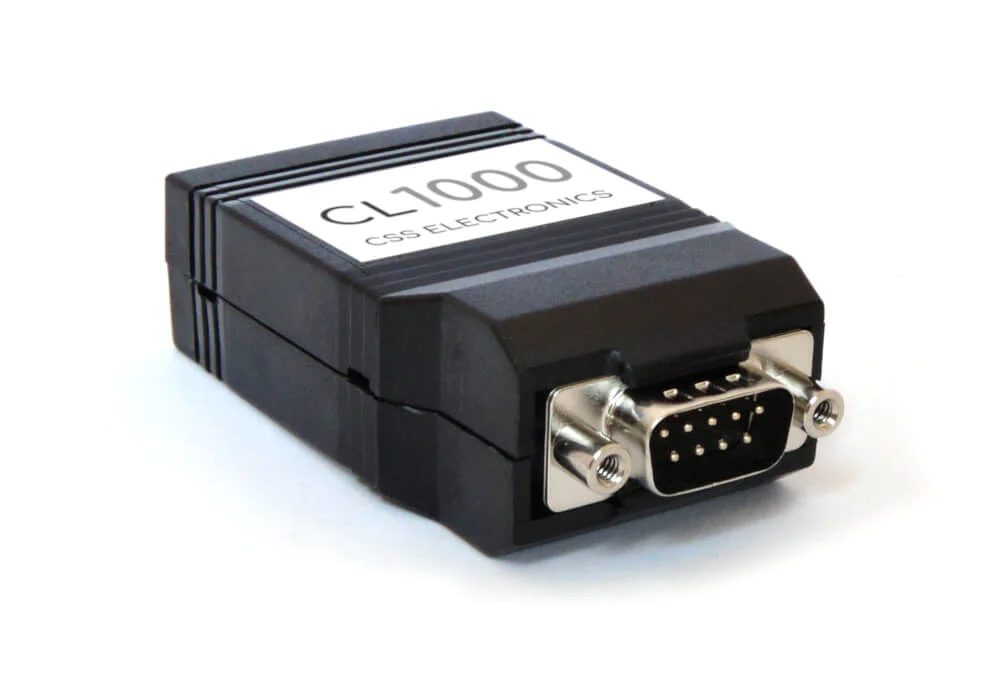

CL1000 CAN Data Logger

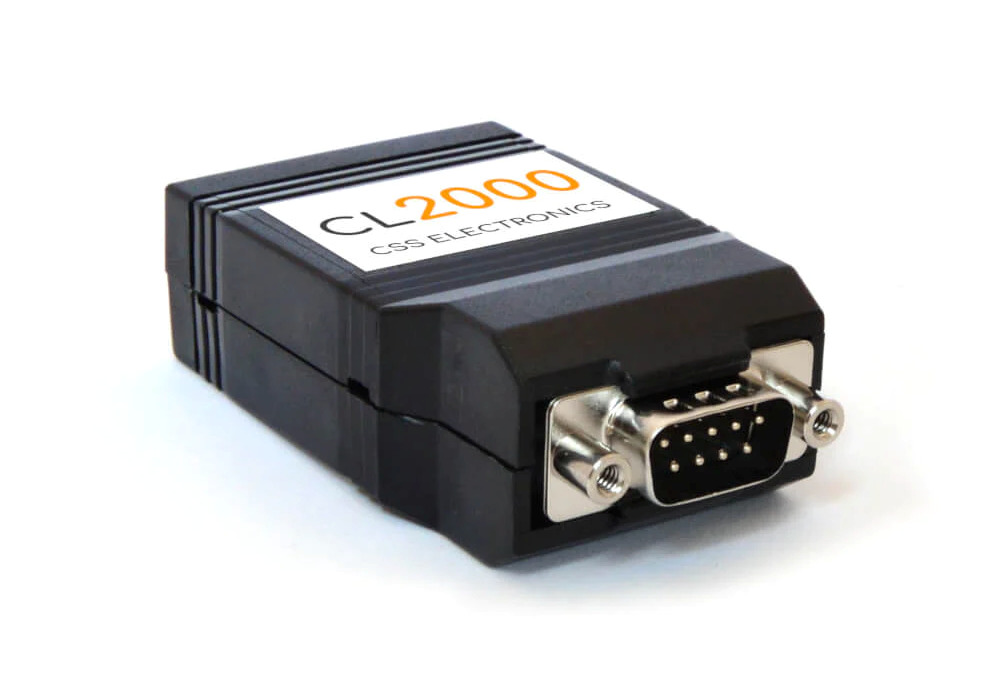

CL2000 CAN Data Logger

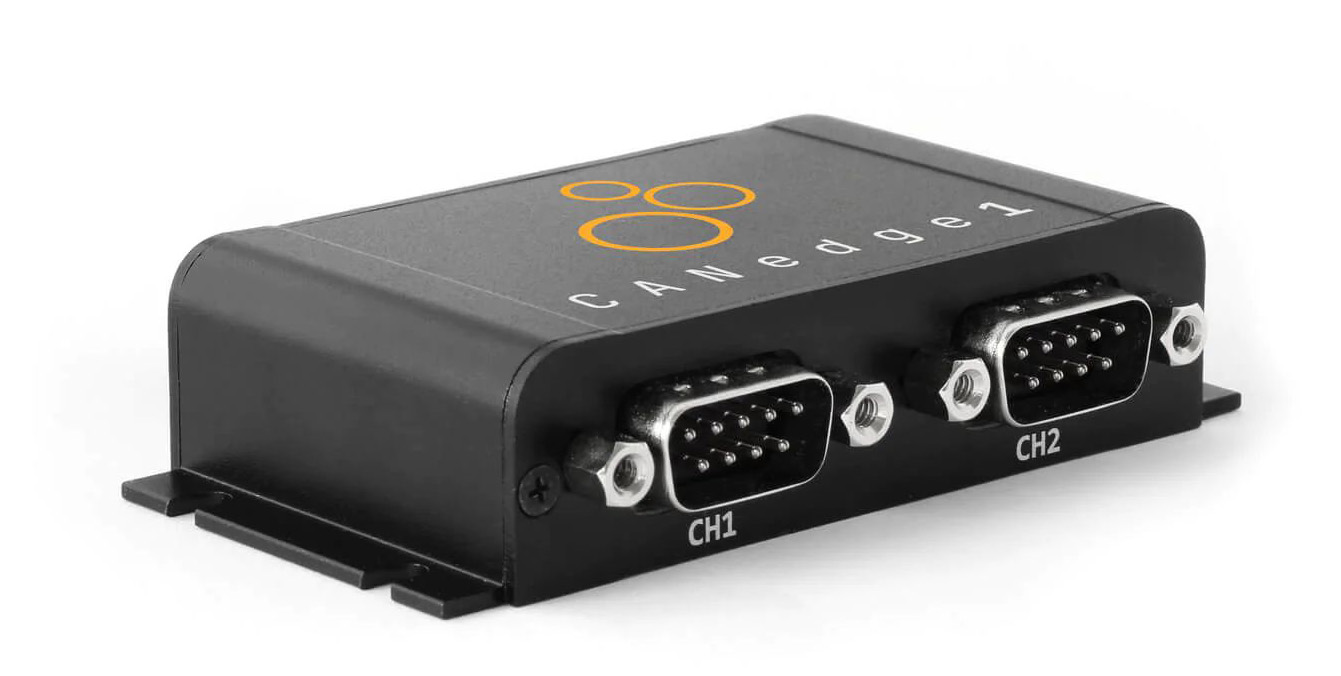

CANedge1 CAN and LIN Data Logger

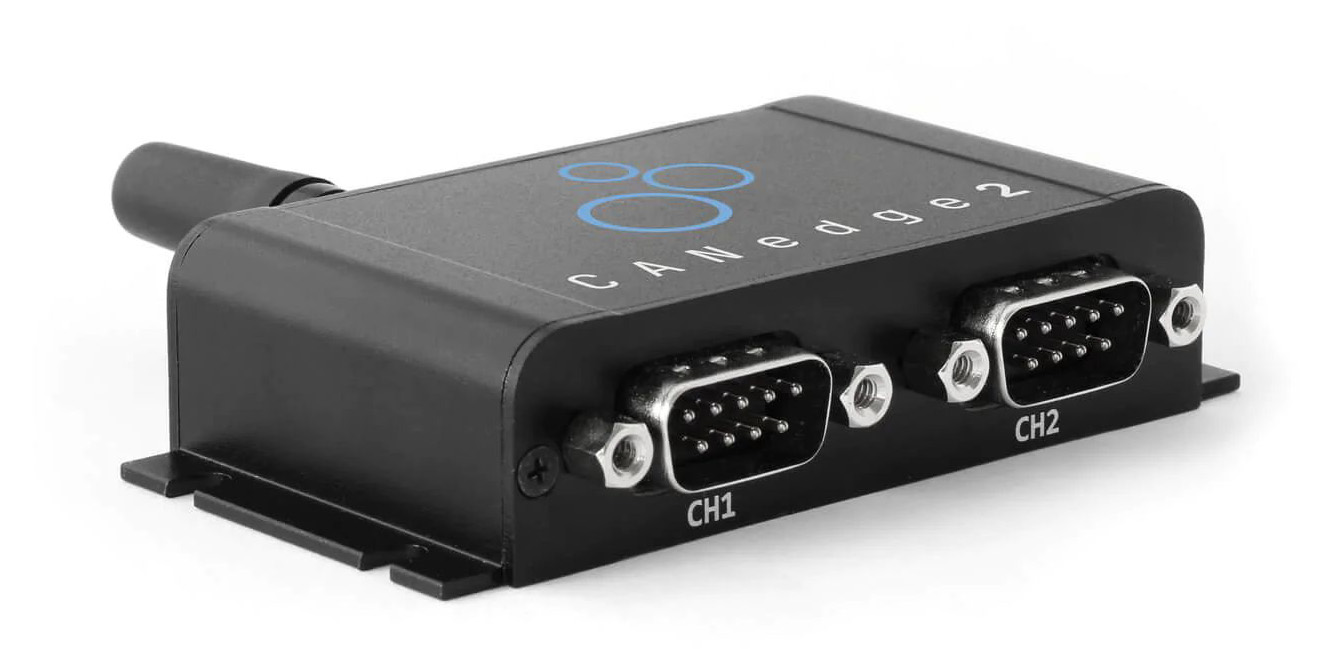

CANedge2 Dual CAN Logger with WiFi

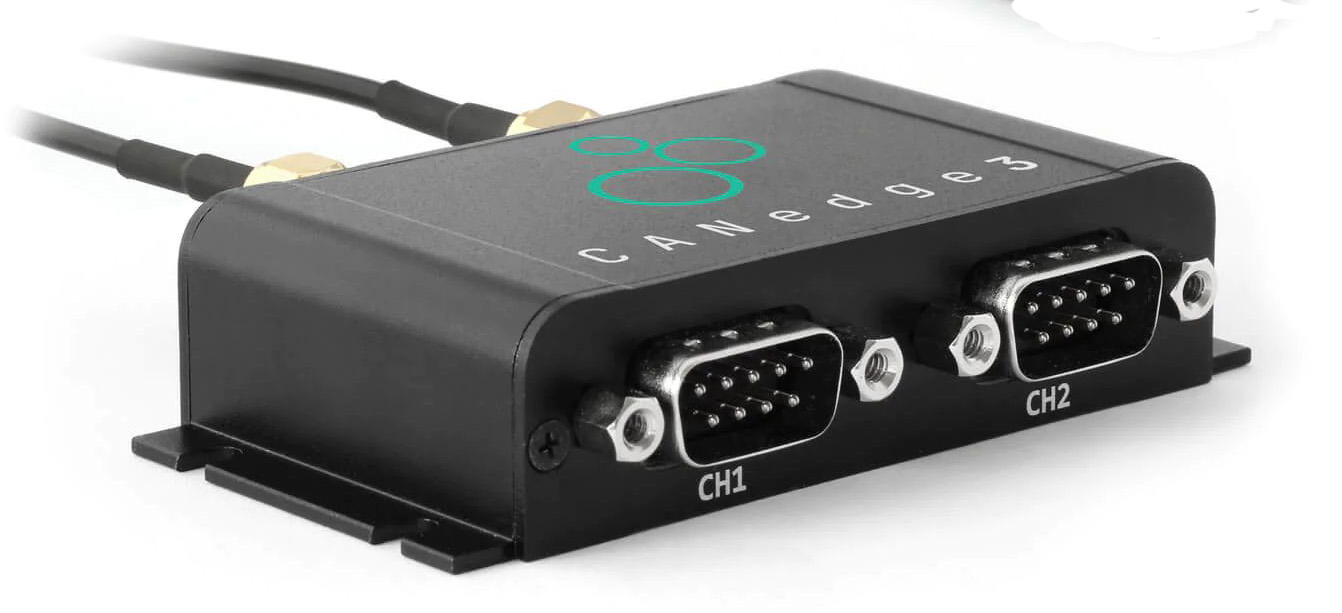

CANedge3 Dual CAN LIN Data Logger with 3G/4G GSM
CAN & LIN
Availability Available Available Available Not Available Not Available
Number of CAN channels 1 1 2 2 2
# of LIN channels 2 2 2
CAN FD Yes Yes Yes
RTC with battery backup (resolution) show Yes (1 ms) Yes (0.05 ms) Yes (0.05 ms) Yes (0.05 ms)
Number of frames/second show ~800-1000 ~800-1000 3000+ 3000+ 3000+
DATA LOGGING
SD card logging show Yes Yes Yes Yes Yes
Industrial & extractable SD show Yes Yes Yes
Log file format show .TXT .TXT MDF4 (.MF4) MDF4 (.MF4) MDF4 (.MF4)
Cyclic logging show Yes Yes Yes Yes Yes
Silent mode Yes Yes Yes Yes Yes
Bit-rate auto detection show Yes Yes Yes Yes Yes
Filters & prescaling show Basic Basic Advanced Advanced Advanced
Transmit lists show Basic Basic Advanced Advanced Advanced
Control signal (trigger) show Basic Basic Advanced Advanced Advanced
Data compression & encryption show Yes Yes Yes
CAN/LIN error frame logging show Yes Yes Yes
Overview CL1000 CL2000 CANedge1 CANedge2 CANedge3
STREAMING
USB streaming to PC show Yes Yes
GNSS/IMU
GNSS/IMU support show Optional Optional Yes
WIFI/LTE
Secure WiFi/LTE data transfer show WiFi 3G/4G LTE
Over-the-air config/firmware Yes Yes
SOFTWARE
Configuration editor show Yes Yes Yes Yes Yes
DBC conversion support show Yes Yes Yes Yes Yes
Convert data to e.g. ASC, TRC show Yes Yes Yes Yes Yes
Graphical plot support show Yes Yes Yes
Data processing API show Yes Yes Yes
Dashboard integration show Yes Yes Yes
Telematics "cockpit" show Yes Yes
MECHANICAL
L x W x H (mm) show 67 x 43 x 24 mm 67 x 43 x 24 mm 75 x 47 x 20 mm 75 x 47 x 20 mm 75 x 47 x 20 mm
Volume (cm3) 70 cm3 70 cm3 70 cm3 70 cm3 70 cm3
Weight (g) 50 50 100 100 100
Enclosure ABS Plastic ABS Plastic Aluminium Aluminium Aluminium
Overview CL1000 CL2000 CANedge1 CANedge2 CANedge3
