4823 8-Channel Professional Kit

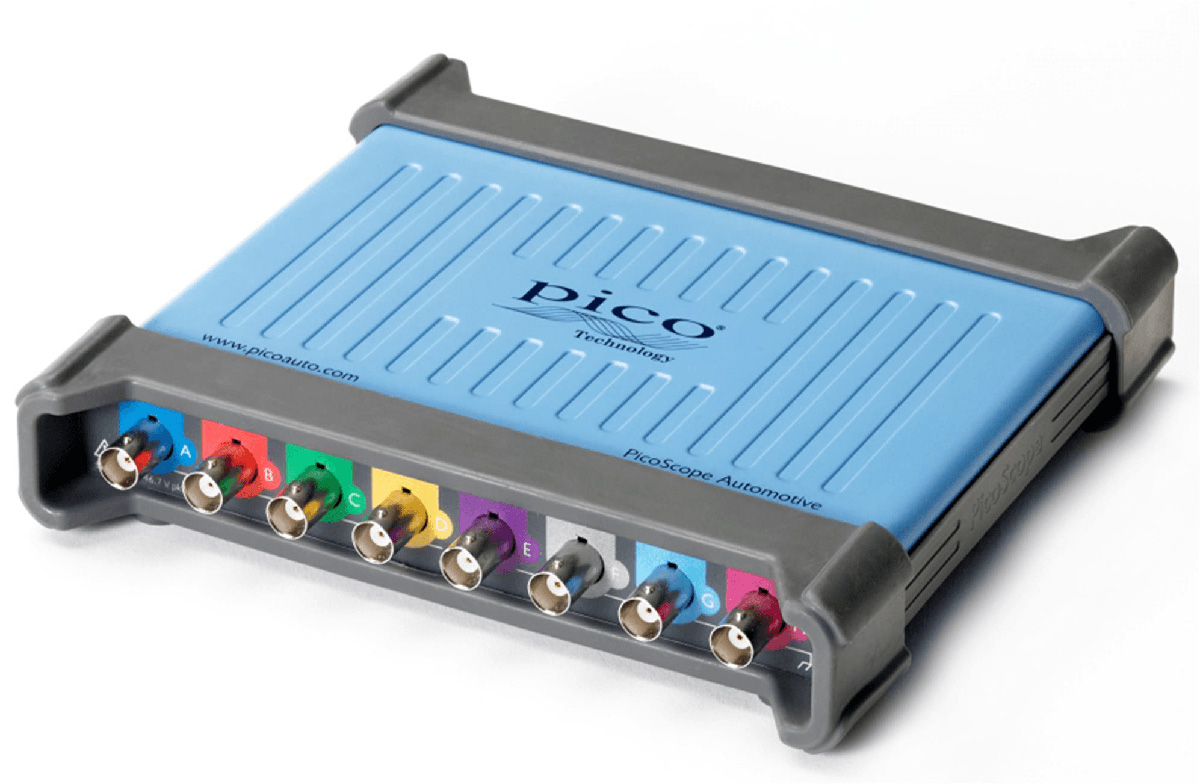

4823 8-Channel Automotive Oscilloscope

Pico Automotive have introduced an 8-channel Automotive Oscilloscope called the 4823.

It is the world's first high-resolution, 8-channel automotive oscilloscope fast enough for CAN, CAN-FD and FlexRay, including serial data decoding.

Have a look at the 4823 8-Channel Oscilloscope for more detailed information about this particular PicoScope.

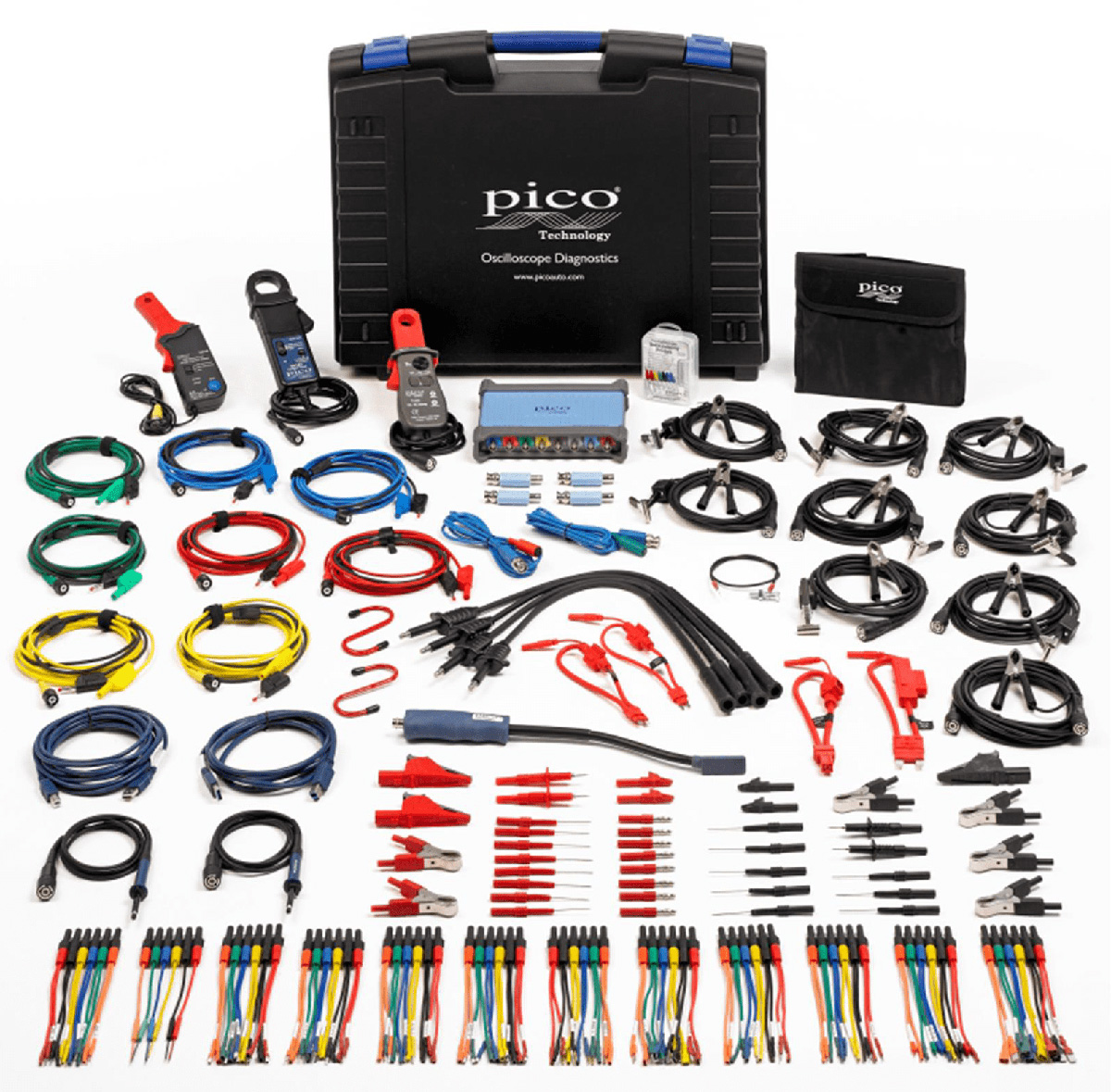

4823 Professionl Kit Contents
Part SKU Description Quantity
PICO-MI074 Secondary Ignition Pickup 8
PICO-MI121 USB2 4.5m Cable 1
PICO-MI168 S Hook 2
PICO-PA038 Telescopic pack: 45x45 length 80-120mm 2
PICO-PA147 Pico-branded 6-Pocket Roll-up Pouch 1
PICO-PA186 Carry Case: Heavy Duty PS4823 1
PICO-PR361 4823 8-Channel PicoScope 1
PICO-TA001 Multimeter Probe (Black) 2
PICO-TA002 Multimeter Probe (Red) 2
PICO-TA003 Small Crocodile Clip (Black) 2
PICO-TA004 Small Crocodile Clip (Red) 2
PICO-TA005 Dolphin Clip 1000V CAT-III (Black) 2
PICO-TA006 Dolphin Clip 1000V CAT-III (Red) 2
PICO-TA008 Back-pinning Probe Set 1
PICO-TA017 4mm Shrouded to Unshrouded Adaptor (Red) 8
PICO-TA018 20A/60A Economy Current Clamp - BNC 1
PICO-TA033 BNC to BNC Cable with Earth Clamp 1
PICO-TA034 ATC / ATO Fuse Extension Lead 1
PICO-TA035 Mini Fuse Extension Lead 1
PICO-TA037 HT Extension Test Lead 4
PICO-TA106 Earth Wire for Coil Pack 45cm 1
PICO-TA125 Premium Test Lead Blue 3m BNC to 4mm Permanent Ground 1
PICO-TA126 Premium Test Lead Red 3m BNC to 4mm Permanent Ground 1
PICO-TA127 Premium Test Lead Green 3m BNC to 4mm Permanent Ground 1
PICO-TA128 Premium Test Lead Yellow 3m BNC to 4mm Permanent Ground 1
PICO-TA472 Premium Test Lead Black 3m BNC to 4mm Permanent Ground 4
PICO-LA732* Destiny 8-channel scope sheet of Coloured Labels 1
PICO-TA155 1.8m USB 3 Cable - Blue 1
PICO-TA157 Battery Clip (Red) 2
PICO-TA158 Battery Clip (Black) 4
PICO-TA161 Flexible Back-pinning Probe (Black) 8
PICO-TA162 Flexible Back-pinning Probe (Red) 8
PICO-TA167 200A/2000A 20KHz Premium Current Clamp BNC 1
PICO-TA168 JCASE Fuse Extension Lead 1
PICO-TA197 10:1 Attenuator 4
PICO-TA204 BNC Coil-on-Plug and Signal Probe 1
PICO-TA206 Maxi Fuse Extension Lead 1
PICO-TA234 20A/30A 20KHz Premium Current Clamp 1
PICO-TA324 Premium Breakout Lead Set 1
PICO-TA329 Ultrasonic Parking Sensor Detector 2m 1
PICO-TA330 Keyless Entry Detector 3m 1
PICO-TA375 1:1/10:1 Switchable 100 MHz BNC Probe 2
Please Note: PICO-LA732 is a new item and has not yet been added to the Kit analysis.
4823 8-Channel Professional Kit
PICO-PQ184 4823 8-Channel Professional Kit
4823 8-Channel Professional Kit
PICO-PQ184
R 88,911.62
4823 8-Channel Engine & Hydraulics Kit in Case
PICO-PQ202
R 97,086.96
4823 8-Channel Special Edition Kit in Case
PICO-PQ203
R 69,317.93

Why are 8 channels necessary?

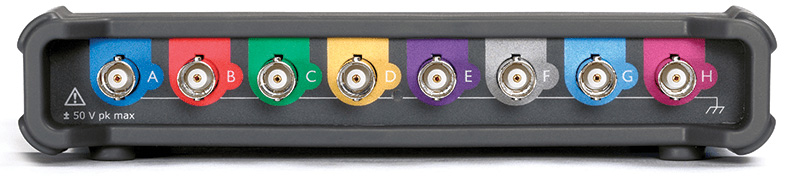

4823 Front Panel

Eight channels facilitates testing of five, six and eight cylinder engines. V6 / V8 CAM timing (4/6 cams plus crank, and sometimes a WPS500X Pressure Transducer, and VVT timing systems. Trucks, earthmoving and agricultural vehicles often require a mix of electrical and hydraulic measurements on multiple valves simultaneously to diagnose problems with system interaction. The 4823 is ideal for full system diagnosis on components (including power, ground, signals, current) and general engine diagnostics where many signals need to be monitored simultaneously.

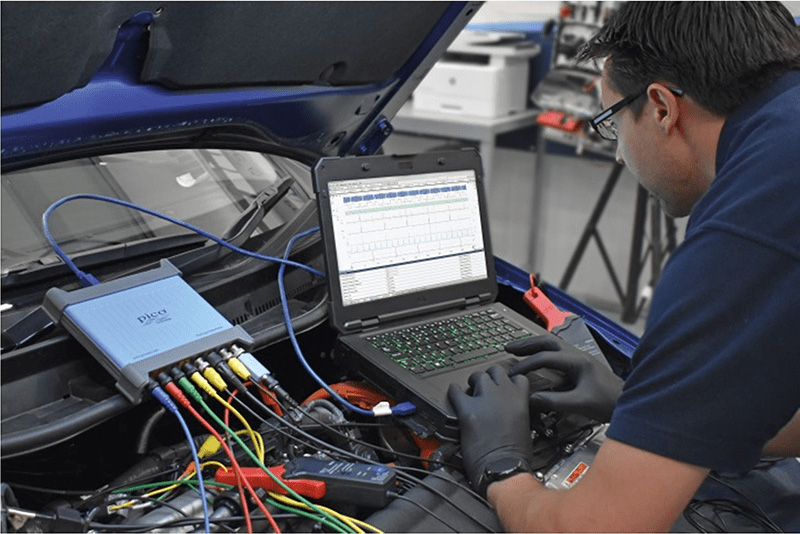

4823 8-Channel Scope being used
