4425A 4-Channel Engine and Hydraulics Kit

PicoScope 4425A 4-Channel Engine & Hydraulics Kit

Engine and Hydraulics involves comprehensive diagnostics and analysis and our new Kit is perfectly suited to this. It is a combination of our Diesel Kit with two WPS600C Hydraulic Pressure Transducers, enabling you to diagnose faults quickly and accurately on many different types of mobile machinery.

By combining the high-precision hydraulic transducers with this Kit, you can now look at hydraulic pressures in the same time frame as the engine control signals giving complete visibility of how the system is operating. You can see the exact moment valves start to move in the hydraulic system and compare this directly to the relevant electronic controls.

You can also investigate stalling and 'no start' conditions due to the comprehensive coverage of engine and electrical systems.

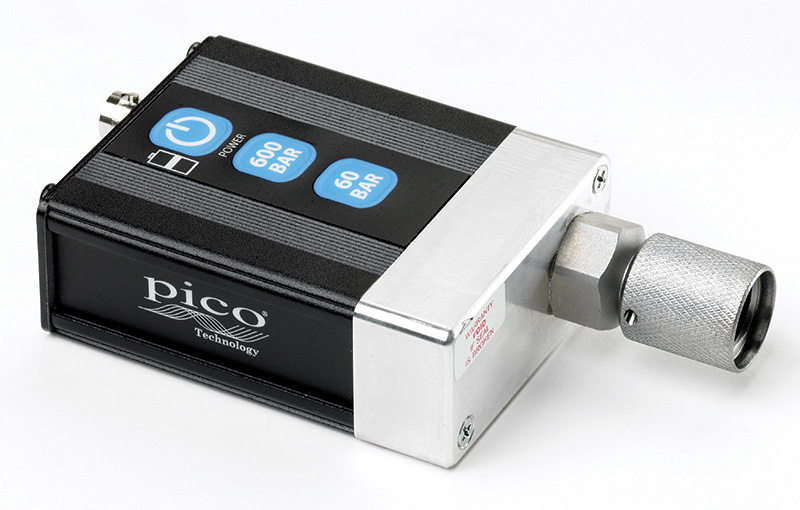

WPS600C Hydraulic Pressure Transducer

With PicoScope you have direct access to over 150 built-in guided tests covering engine and electrical sensors, actuators and systems. These include both voltage and current measurements and cover camshaft, crankshaft, oxygen sensors, injectors and many more. These tests give you a head start in diagnosing and fixing engine faults right first time; when combined with the hydraulic system they allow diagnosis of complex interactions of the hydraulic and engine systems.

2 Carry Cases are also provided or you can choose to store your Kit in Foam.

You can expand your Kit as necessary thereby increasing the number of tests you can perform by purchasing extra accessories.

WPS600C Pressure Transducer

With high accuracy and a wide measuring range, the WPS600C Hydraulic Pressure Transducer connects to your PicoScope for convenient analysis and diagnosis of pressurized systems.

  • Accurately measure up to 600 bar (8700 psi)
  • Ultra-fast 100 microsecond response time (0% to 90% of full scale)
  • Internal rechargeable LiPo battery
  • Industry-standard M16 x 2 test point connector
  • Auto zeroing
  • High noise immunity
  • Temperature compensated


Not for continuous operation.

Due to the wide range of hydraulic fittings in use we do not supply any specific adaptors or hoses for use with this product. Those provided with the low pressure WPS500X are not suitable for use with the higher pressure hydraulic systems.

We recommend contacting your regular hydraulic hose supplier for any additional fittings or custom hose assemblies you may require to suit your specific system.

Pressure ranges

Two pressure ranges for increased versatility The two pressure ranges of the WPS600C allow accurate measurement and diagnosis of permanent and non-permanent automotive and industrial hydraulic systems.

Range 1 The first range, 0 to 600 bar (approximately 8700 psi) gives you high resolution and accuracy for high-pressure tests in hydraulic systems.

Range 2 The second range measures from 0 to 60 bar (approximately 870 psi). This range is ideal for low-pressure hydraulic systems and oil pumps.

Range Pressure Range Accuracy Response Time Output Scaling
1 0 to 600 bar
0 to 8700 psi
1% of scale 100 µs 1 V/100 bar
1 V/1450 psi
2 0 to 60 bar
0 to 870 psi
1% of scale 100 µs 1 V/10 bar
1 V/145 psi

Nothing compares to the WPS600C

It is not unusual to require a different pressure transducer for each diagnostic test you want to run. The WPS600C eliminates this need by giving you one ultra-high resolution transducer that can be used for a multitude of hydraulic diagnostics applications. With two pressure ranges and a rechargeable Li-Po battery, all enclosed in a durable housing the WPS600C is the cost-effective answer to pressure analysis.

When price, performance and versatility matter, there is nothing that compares to the WPS600C Pressure Transducer.

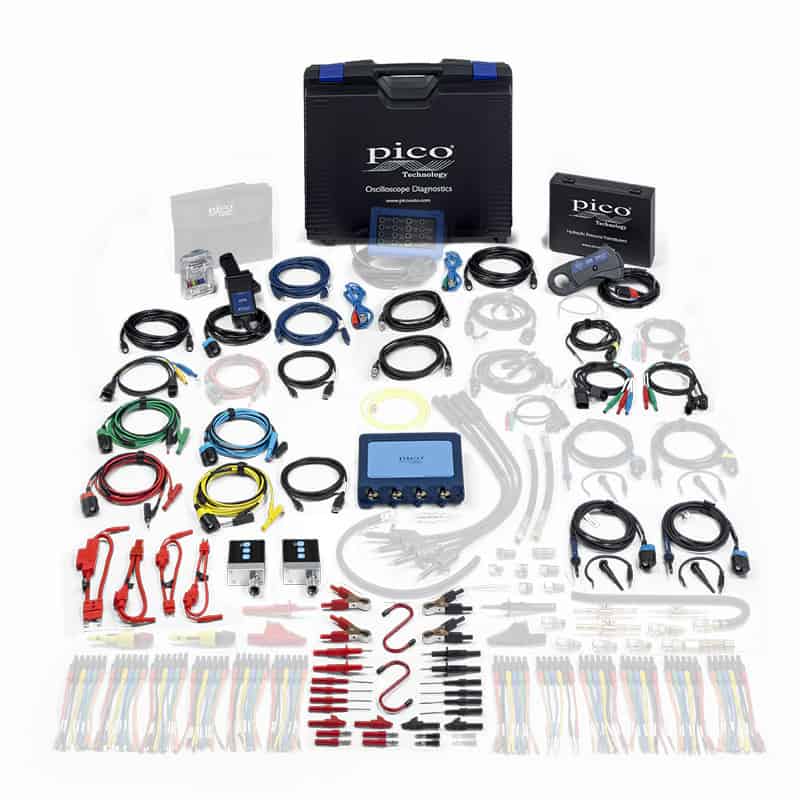

4425A 4-Channel Engine & Hydraulics Kit Contents
1 4425A 4-Channel Automotive Oscilloscope
1 PicoBNC+™ Test Lead:
4mm Permanent Ground 3m Blue
1 PicoBNC+™ Test Lead:
4mm Permanent Ground 3m Red
1 PicoBNC+™ Test Lead:
4mm Permanent Ground 3m Green
1 PicoBNC+™ Test Lead:
4mm Permanent Ground 3m Yellow
1 PicoBNC+™ 60A Current Clamp 1 PicoBNC+™ 2000A Current Clamp
4 PicoBNC+™
Wide-range Linear Temperature Probe
2 PicoBNC+™ 10:1 Scope Probe
1 Standard (ATC) Fuse Extension Lead 1 Mini (ATC) Fuse Extension Lead
1 JCASE Fuse Extension Lead 1 Maxi Fuse Extension Lead
2 S-Hook 1 Backpinning Probe Set
2 Multimeter Probe (black) 2 Multimeter Probe (red)
2 Battery Clip (black) 2 Battery Clip (red)
4 Flexible Backpinning Probe (black) 4 Flexible Backpinning Probe (red)
2 Small Crocodile Clip (black) 2 Small Crocodile Clip (red)
4 4mm Shrouded to Unshrouded Adaptor (red) 1 2-pin AMP Connector Breakout Lead
1 2-pin ACS Connector Breakout Lead 1 3-pin Kostal Connector Breakout Lead
2 WPS600C Hydraulic Pressure Transducer 2 BNC to BNC Cable 2m
2 Insulated BNC to insulated BNC Cable 5m 2 USB Charging Cable 2m
1 USB 2.0 Cable 4.5m 1 USB 3.0 Cable 1.8m
1 Dual WPS600C Small Case 1 Carry Case for Kit

Uses

The Engine and Hydraulics Kit is designed for you to be able to diagnose problems on your equipment, relating to either engine or hydraulics. Allowing pressures up to 600 bar to be monitored against time enables the technician to connect the WPS600C to the relevant hydraulic test port, then view activity and transitions in hydraulic pressure that were never previously visible with conventional gauges.

  • Hydraulic pump performance
  • Hydraulic valve switching activity
  • Hydraulic pressure control valve performance
  • Hydraulic pressure decay
  • Residual hydraulic pressure

Hydraulic Waveform Examples and Analysis

Have a look at different waveforms and analyse the following examples:

  1. Hydraulic ram on a tractor
  2. Hydraulic system on a telehandler
  3. Hydraulic clutch pack

Tests using the Engine & Hydraulics Kit

Compression Test MAF Sensor Camshaft Adjuster CAN Bus
Cylinder Balance MAP EGR Blink codes
Battery Alternator Test Pedal Sensor Glow Plugs Flex Ray
Alternator Road Speed Injectors KWP2000
Starting Volt/Amps Solenoid Valve Speed Control Valve LIN bus
ABS Throttle Position Valve Timing Cam vs. Crank Position Sensors
Camshaft Knock Sensor Amplifier Earth Primary Ignition vs. Crank
Temperature Sensor Cooling Fan Amplifier Signal Primary Ignition vs. Injector
Crankshaft Fuel Pump Primary Cam, Crank, Injector and Ignition
Distributor Pick-Up Stepper Motors Primary Ignition
Fuel Pressure Throttle Servo SAW Signal
Lambda Pressure Regulator DIS Primary Voltage vs. Current
Please have a look at our comprehensive list of Automotive Guided Tests.
NB Some tests may require additional accessories that may not be supplied with this kit.
PICO-PQ195 4425A 4-Channel Engine & Hydraulics Kit
PICO-PQ195 4425A 4-Channel Engine & Hydraulics Kit in Case
4425A 4-Channel Engine & Hydraulics Kit in Case
PICO-PQ195
R 102,781.97
PICO-PQ238 4425A 4-Channel Engine & Hydraulics Kit in Foam
PICO-PQ238 4425A 4-Channel Engine & Hydraulics Kit in Foam
4425A 4-Channel Engine & Hydraulics Kit in Foam
PICO-PQ238
R 102,281.11
4425A 4-Channel Engine & Hydraulics Kit in Case & Foam
PICO-PQ285
R 106,050.75
