4225A 2-Channel & 4425A 4-Channel Starter & Diagnostic Kits

The PicoScope Starter Kits and the Diagnostic Kits are available in 2 and 4-Channel versions and have everything you need to start your diagnostic journey. You can add to your Kits to increase functionality as needed.

Garage Lube Diagnostic Kits with PicoBNC+

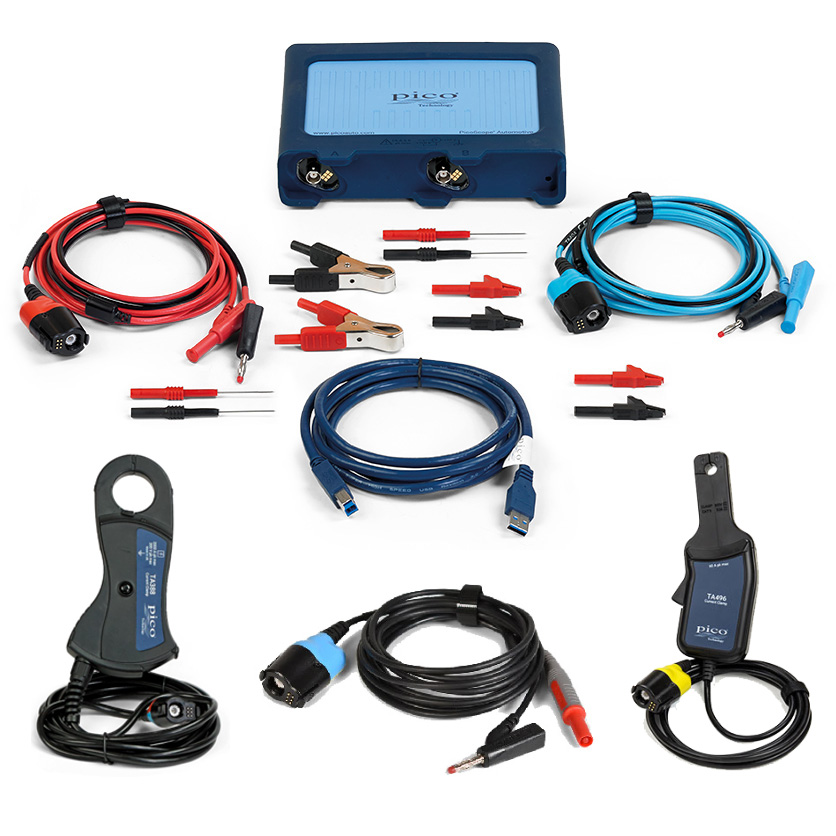

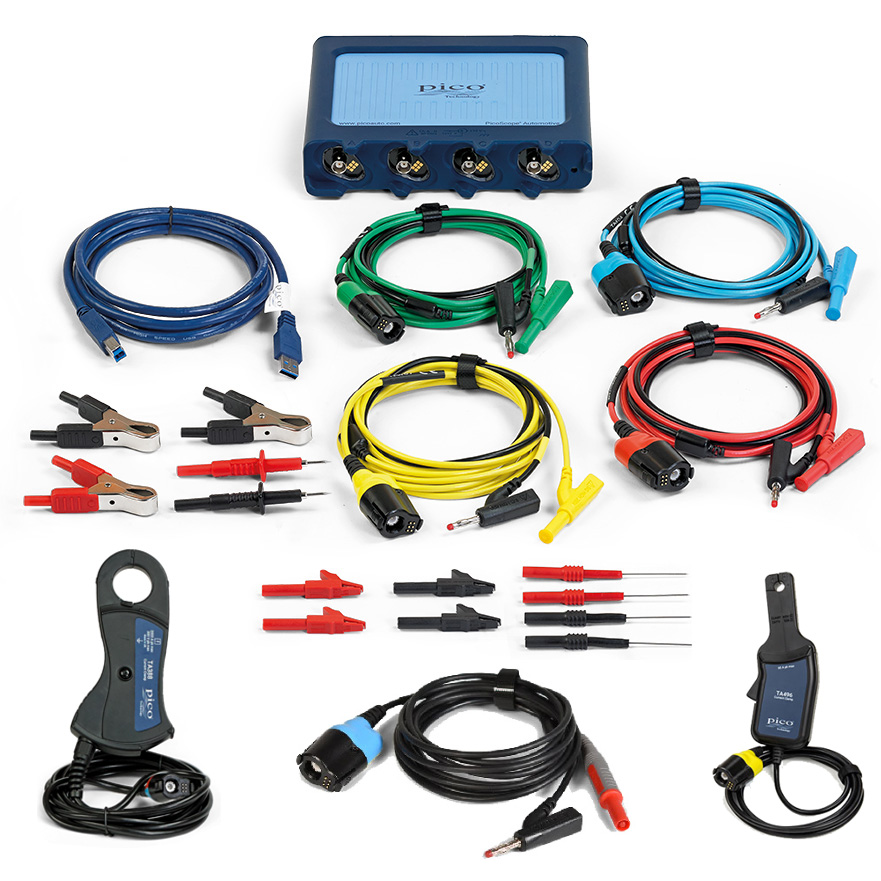

Garage Lube has created two Kits, the 2 and 4-Channel PicoScope Diagnostic Kits. These Kits have all the components included in the Starter Kits (listed below) as well as:

  1. PICO-TA499 10:1 Scope Probe and Adaptor
    • Essential for Primary Ignition Testing
    • CAN and FlexRay Testing
  2. PICO-TA388 PicoBNC+ 2000A High Current Clamp
    • Starter Motor Testing on Diesel & Petrol Engines
    • Relative Compression Testing
  3. PICO-TA473 PicoBNC+ 60A Low Current Clamp
    • Medium and Low Current Measurement:
      • Injectors
      • Ignition Coils
      • Fuel Pump
      • Parasitic Drain

A few test examples are shown below. However, adding these three items allows you to perform many more tests than are possible with the Starter Kits.

PicoScope 4425A 4-Channel Starter Kit

Starter Kits with PicoBNC+

The entry-level, 2 and 4-Channel PicoScope Starter Kits have the essentials to allow you to perform a number of tests. You can expand your Kit as necessary thereby increasing the number of tests you can perform by purchasing extra accessories.

Diagnostic Software

Along with the 2 and 4-Channel PicoScope, you also receive our award winning PicoDiagnostics software. It includes a Battery Test which tests the starting and charging system on the vehicle. This is used to test batteries and charging systems by both vehicle manufacturers and independent workshops.

Current Clamp

When you add the 2000A Current Clamp, you have everything you need to run the Vehicle Battery, Starter Motor, Alternator and Regulator Test and you can monitor the starter current on both petrol and diesel vehicles.

We recommend adding the PICO-TA499 10:1 Scope Probe and Adaptor to your PicoScope Starter Kit. The old 4x25 starter kits used to have an attenuator but the attenuator does not work well with the newer 4x25A scopes. Primary ignition produces spikes of about 400V. That is considerably more than the maximum voltage of 200V that the inputs can take. The probe allows you to test primary ignition and protects the scope like the old attenuator used to. (Also included in the Diagnostic Kit, below)

Do not test primary ignition using a 1:1 test lead or you may damage your scope.

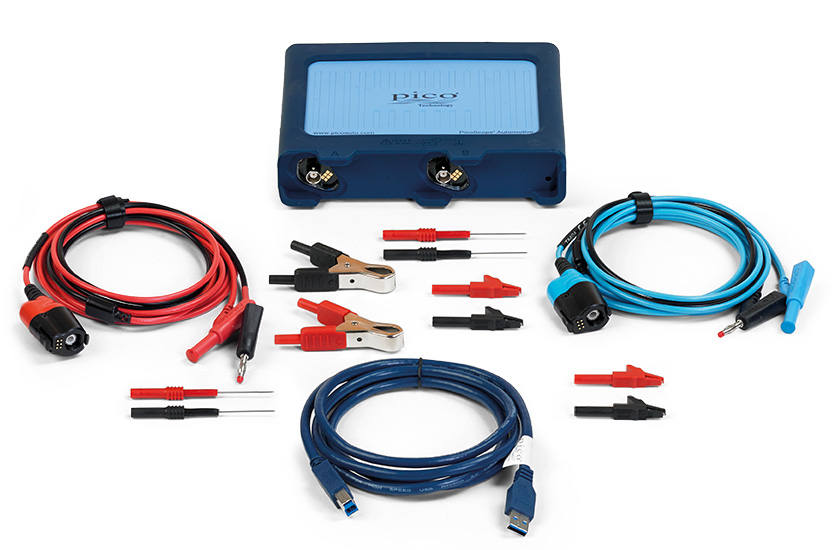

4225A 2-Channel Starter Kit Contents
1 4225A 2-Channel Automotive Oscilloscope
1 PicoBNC+ Test Lead:
4mm Permanent Ground 3m Blue
1 PicoBNC+ Test Lead:
4mm Permanent Ground 3m Red
1 Battery Clip (black) 1 Battery Clip (red)
1 Flexible Back-pinning Probe (Black) 1 Flexible Back-pinning Probe (Red)
1 Small Crocodile Clip (black) 1 Small Crocodile Clip (red)
1 1.8m USB Cable - Blue 1 Optional Carry Case and / or Foam Tray

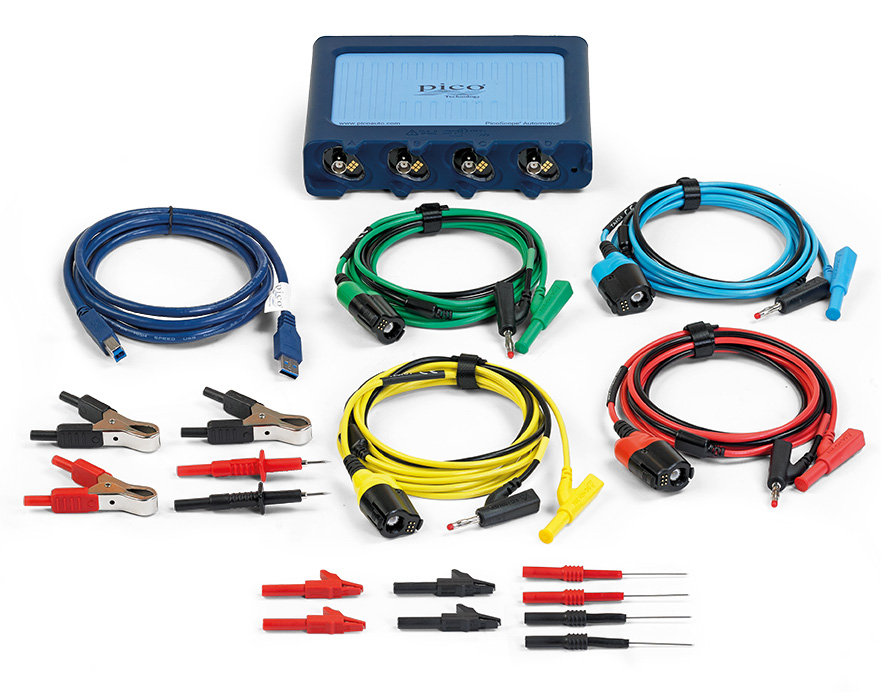

4425A 4-Channel Starter Kit Contents
1 4425A 4-Channel Automotive Oscilloscope
1 PicoBNC+ Test Lead:
4mm Permanent Ground 3m Blue
1 PicoBNC+ Test Lead:
4mm Permanent Ground 3m Red
1 PicoBNC+ Test Lead:
4mm Permanent Ground 3m Green
1 PicoBNC+ Test Lead:
4mm Permanent Ground 3m Yellow
2 Battery Clip (Black) 1 Battery Clip (Red)
2 Flexible Back-pinning Probe (Black) 2 Flexible Back-pinning Probe (Red)
2 Small Crocodile Clip (Black) 2 Small Crocodile Clip (Red)
1 1.8m USB Cable - Blue 1 Optional Carry Case and / or Foam Tray
Example Tests
Compression Test MAF Sensor Cooling Fan Primary Ignition
Cylinder Balance MAP Fuel Pump SAW Signal
Camshaft Pedal Sensor Stepper Motors Cam vs. Crank Position Sensors
Crankshaft Road Speed Throttle Servo Primary Ignition vs. Crank
Distributor Pick-Up Solenoid Valve Amplifier Earth
Fuel Pressure Temperature Sensor Amplifier Signal
Lambda Throttle Position Primary
Please have a look at our comprehensive list of Automotive Guided Tests.
NB Some tests may require additional accessories that may not be supplied with these Kits.

Worldwide Chip Shortage

Please Note: Due to the worldwide chip shortage, the 2-Channel 4225A and our Starter and Diagnostic Kits are currently unavailable from Pico.
The 4-Channel 4425A PicoScope can only be purchased in our Standard or larger kits.
Please consider the 4-Channel Standard Kit.
Please Note: We do have one 2-Channel Starter Kit in stock in South Africa at present.

GARAGE LUBE KITS

PicoScope 2-Channel Diagnostic Kit
PICO-GL001 4225A 2-Channel Diagnostic Kit
Price (ex VAT): R 23,500.00
PicoScope 4-Channel Diagnostic Kit
PICO-GL002 4425A 4-Channel Diagnostic Kit
Price (ex VAT): R 34,00.00
PICO-PQ175 PicoScope 4225A 2-Channel Starter Kit
PICO-PQ175 4225A 2-Channel Starter Kit
4225A 2-Channel Starter Kit
PICO-PQ175
R 16,612.83
4225A 2-Channel Starter Kit in Foam
PICO-PQ223
R 17,467.73
PICO-PQ176 PicoScope 4425A 4-Channel Starter Kit
PICO-PQ176 4425A 4-Channel Starter Kit
4425A 4-Channel Starter Kit
PICO-PQ176
R 28,627.68
4425A 4-Channel Starter Kit in Foam
PICO-PQ224
R 29,482.58
