IEPE Signal Conditioner

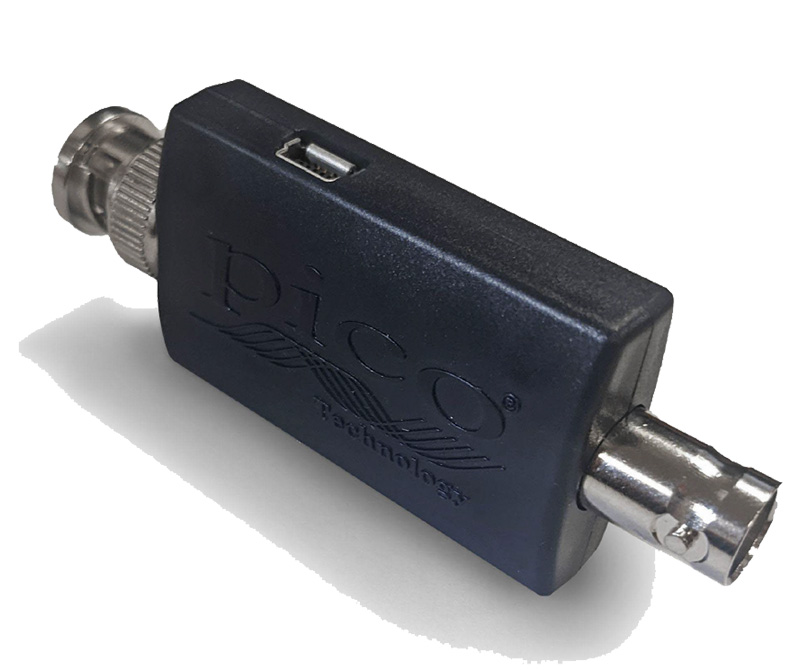

The TA487 IEPE Signal Conditioner is a solution for BNC-interfaced oscilloscopes. It is a simple adaptor that allows any PicoScope with the ability to measure and capture signals from a large selection of piezo-electric IEPE sensors.

Integrated Electronics Piezo-Electric (IEPE) is the technical standard for piezo-electric sensors that include built-in active conversion to boost the high-impedance signal through long lengths of cable with minimal noise. IEPE sensors, such as acceleration, force and pressure transducers, are widely used across a variety of industries, including automotive.

Using the TA487 is as simple as connecting an IEPE sensor and the included USB cable into the TA487, and then attaching the TA487 to a PicoScope or any BNC oscilloscope to capture data from the piezo-electric sensor. The TA487 provides a safe constant 4mA current power source to the sensor, allowing it to work over long cable lengths while still providing a good signal to noise ratio.

Technical specifications
Bandwidth (–3dB) 0.1Hz to 30kHz
Input connection (from transducer) BNC female
Signal gain 1:1
Accuracy ±1% (additional to transducer and measuring instrument accuracy)
Noise Less than 60μV RMS
Supply voltage to transducer 28V ±3%
Supply current to transducer 4mA ±5%
Discharge time constant 1.85s
Required measuring instrument impedance 1MΩ (Greater than 1MΩ can be used, but will affect discharge time constant and low-frequency response)
Power connection USB mini B
Power requirements USB (5VDC, less than 100mA)
Dimensions 76mm x 30mm x 15mm
Weight 30g
Operating temperature range 0 to 40°C
Storage temperature range –20 to +60°C
Operating humidity range 5 to 80%RH non-condensing
Storage humidity range 5 to 95%RH non-condensing
Safety compliance Designed to EN 61010-1:2010+A1:2019
EMC compliance Tested to EN 61326-1:2013 and FCC Part 15 Subpart B
Environmental compliance RoHS, WEEE and REACH compliant
