4425A 4-Channel Master Kit

Our new 4425A 4-Channel Master Kit has been designed so that our customers can include everything they need in a single purchase.

While there are always more items that you can buy to add to your toolbox, this Kit is the most comprehensive available and will allow you to analyse an endless list of diagnostic signals from your test vehicle.

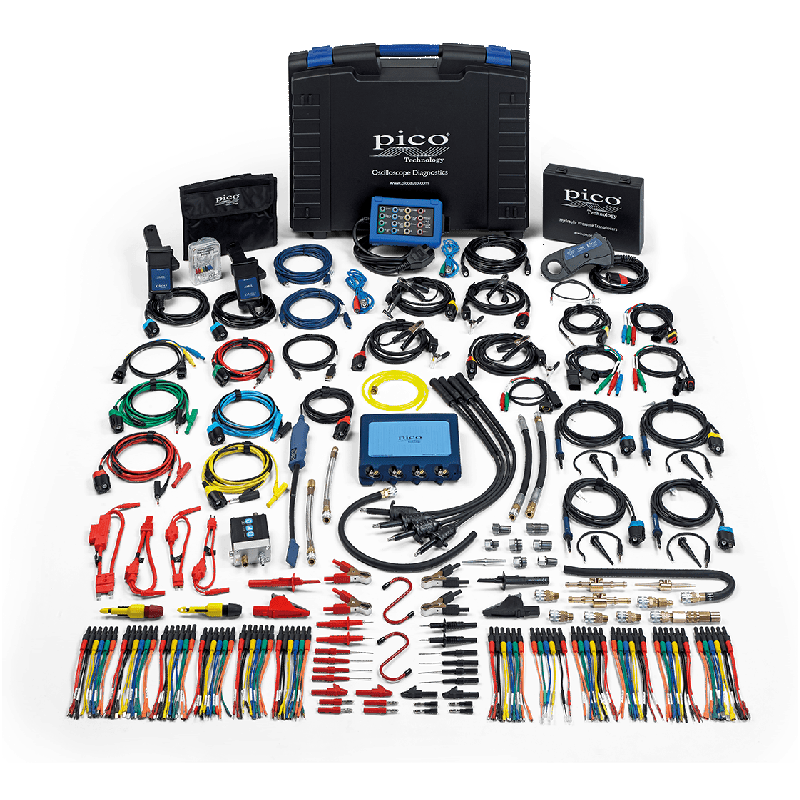

4425A 4-Channel Master Kit Contents
1 4425A 4-Channel Automotive Oscilloscope
1 PicoBNC+ Test Lead:
4mm Permanent Ground 3m Blue
1 PicoBNC+ Test Lead:
4mm Permanent Ground 3m Red
1 PicoBNC+ Test Lead:
4mm Permanent Ground 3m Green
1 PicoBNC+ Test Lead:
4mm Permanent Ground 3m Yellow
2 PicoBNC+ 60A Current Clamp 1 PicoBNC+ 2000A Current Clamp
1 PicoBNC+ Wide-range Temperature Probe 1 PicoBNC+ Resistance Test Lead
1 PicoBNC+ COP Probe
4 PicoBNC+ Secondary Ignition Pickup
1 2-pin AMP Connector Breakout 1 2-pin ACS Connector Breakout
1 3-pin AMP Superseal Connector Breakout
1 2-pin Kostal Connector Breakout 1 3-pin Kostal Connector Breakout
1 Standard (ATC) Fuse Extension Lead 1 Mini (ATC) Fuse Extension Lead
1 JCASE Fuse Extension Lead 1 Maxi Fuse Extension Lead
2 S-Hook 1 Backpinning Probe Set
4 Flexible Backpinning Probe (black) 4 Flexible Backpinning Probe (red)
2 Multimeter Probe (black) 2 Multimeter Probe (red)
1 Sprung Hook Probe (black) 1 Sprung Hook Probe (red)
4 4mm Shrouded to Unshrouded Adaptor (red) 4 PicoBNC+ 10:1 Scope Probe
2 Battery Clip (black) 2 Battery Clip (red)
1 Dolphin Clip (black) 1 Dolphin Clip (red)
2 Small Crocodile Clip (black) 2 Small Crocodile Clip (red)
1 Piercing Clip Set - Red and Black 1 CAN Test Box
1 Pico-branded 6-Pocket Roll-up Pouch 1 Premium 6-way Breakout Lead Set
4 HT Extension Test Lead 1 Earth wire for Coil Pack 45cm long
1 USB 2.0 Cable 4.5m 1 USB 3.0 Cable 1.8m
1 Keyless Entry Detector 1 Ultrasonic Parking Sensor Detector
1 WPS500X Pressure Transducer 1 WPS500X Compression Hose
1 WPS500X Vacuum Hose 1 WPS500X Bleed Hose
1 WPS500X Petrol Hose Small Schrader 1 WPS500X Exhaust Adaptor
1 WPS500X Petrol Hose Large Schrader 1 Universal Vacuum Adaptor
1 Fuel Hose Pressure Tap - Small 1 Fuel Hose Pressure Tap - Medium
1 M10 Short Reach Adaptor 1 M10 Deep Reach Adaptor
1 M12 Deep Reach Adaptor 1 M14 Short Reach Adaptor
1 M14 Deep Reach Adaptor 1 M16 Ford Triton Adaptor
1 M18 Adaptor 1 Brass Vacuum Tap for WPS500X
1 Adaptor AST to WPS500X 1 Adaptor Female to AST Male
1 WPS500X Adaptor Kit B 1 WPS500X Large Hose Adaptor
1 Foster 2 Series Quick Coupler - Female to ¼ inch NPT Male
1 Insulated BNC to insulated BNC Cable 5m 1 USB Charging Cable 2m
1 Pressure Kit Carry Case 1 Master Kit Carry Case

Example Tests

Compression Test MAP Glow Plugs Secondary HT
Cylinder Balance Pedal Sensor Injectors DIS Ignition
Battery Alternator Test Road Speed Speed Control Valve Coil-on-Plug
Alternator Solenoid Valve Valve Timing Multi Coil On Plug
Starting Volt/Amps Temperature Sensor Amplifier Earth CAN Bus
Relative Compression Throttle Position Amplifier Signal Blink codes
Smart Alternator Knock Sensor Primary Flex Ray
ABS Cooling Fan Primary Ignition KWP2000
Camshaft Fuel Pump SAW Signal LIN bus
Crankshaft Stepper Motors DIS Primary Voltage vs. Current Cam vs. Crank Position Sensors
Distributor Pick-Up Throttle Servo Primary vs. Secondary Primary Ignition vs. Crank
Fuel Pressure Pressure Regulator DIS Primary Voltage Primary Ignition vs. Injector
Lambda Camshaft Adjuster DIS Primary Current Cam, Crank, Injector and Ignition
MAF Sensor EGR Primary Ignition vs. Secondary
Please have a look at our comprehensive list of Automotive Guided Tests.
NB Some tests may require additional accessories that may not be supplied with this kit.

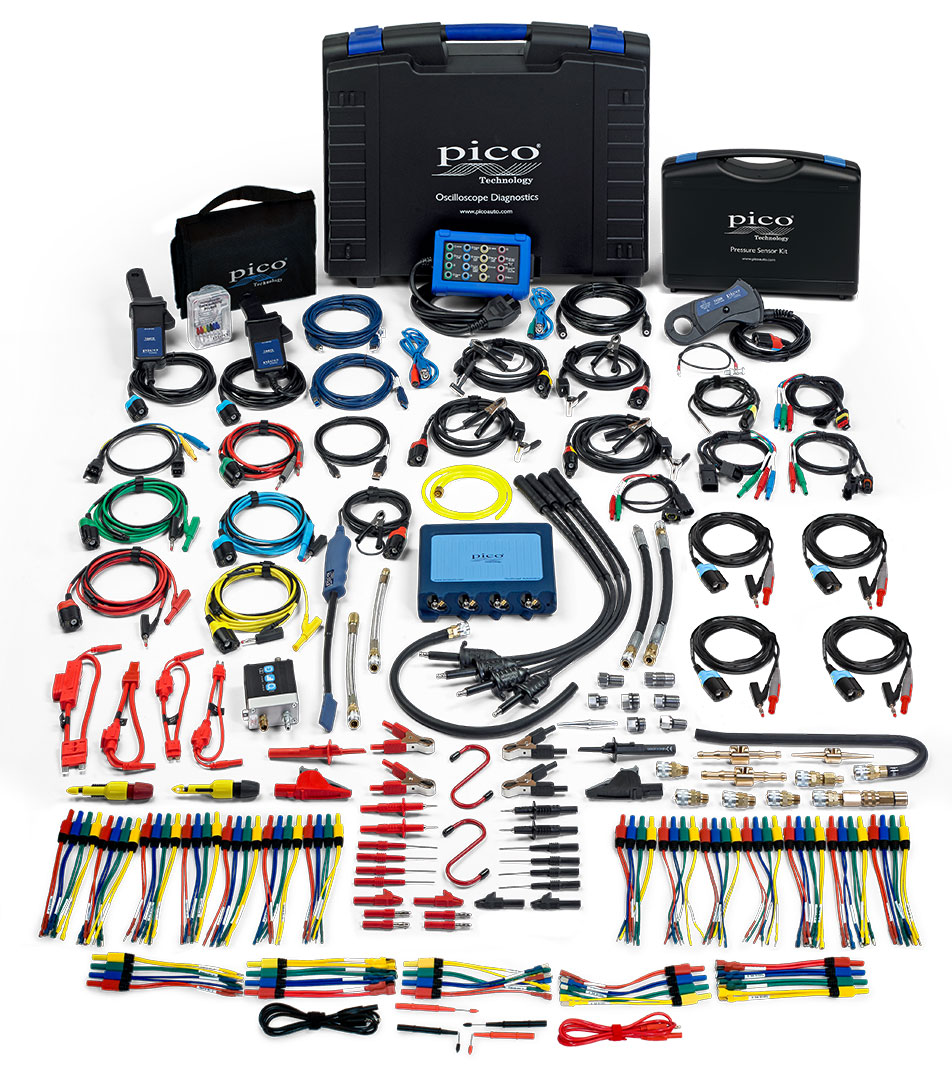

PICO-PQ194 4425A 4-Channel Master Kit
PICO-PQ194 4425A 4-Channel Master Kit in Case
4425A 4-Channel Master Kit in Case
PICO-PQ194
R 137,818.84

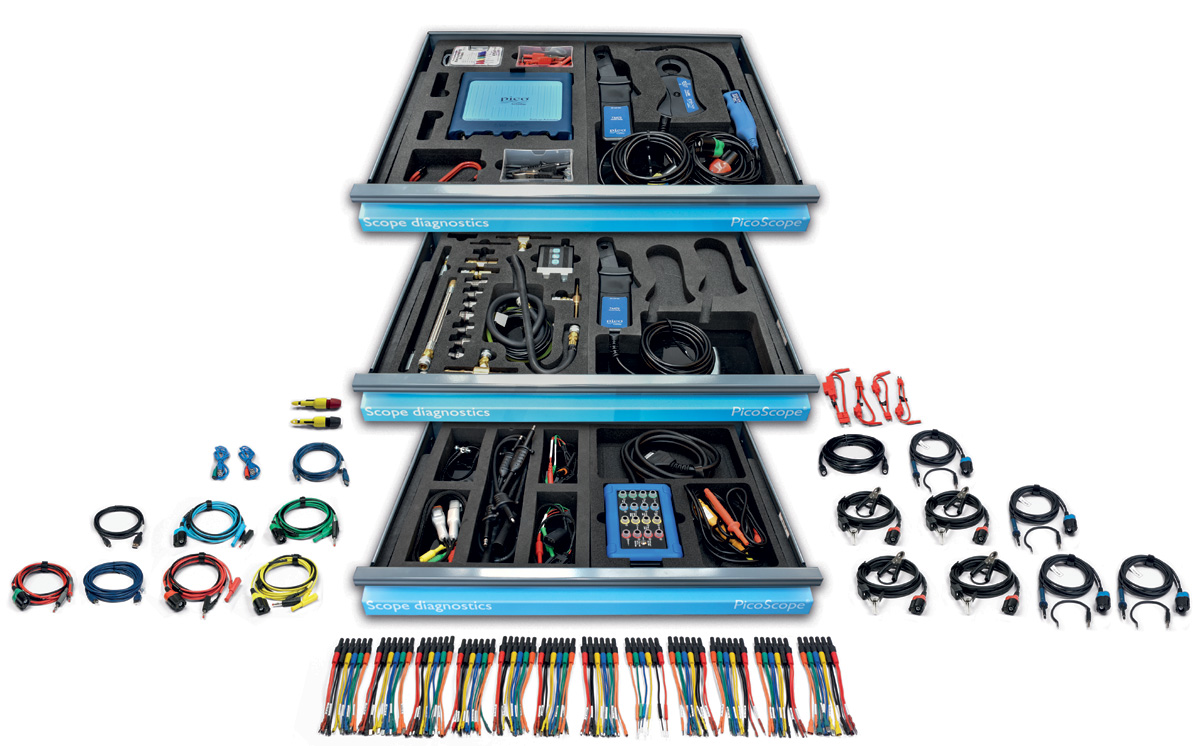

4-Channel Master Kit in Foam
PICO-PQ237 4425A 4-Channel Master Kit in Foam
4425A 4-Channel Master Kit in Foam
PICO-PQ237
R 137,528.70
4425A 4-Channel Master Kit in Case & Foam
PICO-PQ282
R 144,307.54
Carry Case: 4425A Master Kit
PICO-PA210
R 7,847.70
