CAN Testing

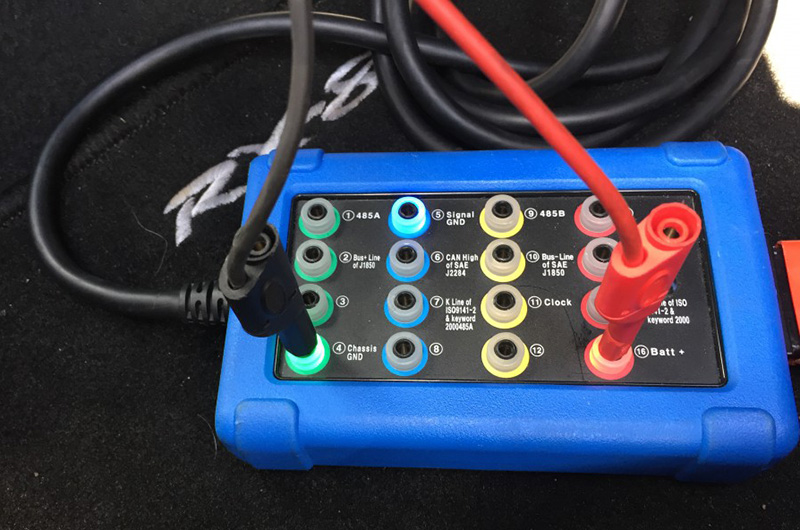

CAN BUS Break-out Connections

The CAN Test Box gives you easy access to the 16 pins of the diagnostic connector that is fitted to all modern vehicles. Depending on the configuration of the vehicle, this may allow you to check power, ground and CAN Bus signal quality. With the test adaptors supplied you can connect your PicoScope automotive scope, or any other suitable scope, to the CAN Test Box to monitor any signals present, such as the CAN High and Low signals.

The CAN Test Box connects to a vehicle᾿s OBDII / EOBD connector and lets you easily diagnose electrical faults.

  • Instantly check power and ground circuits
  • Identify communication link protocols
  • Connect an oscilloscope for signal capture and collection of signal waveform data
  • Compatible with both 12V and 24V vehicles

How does it work?

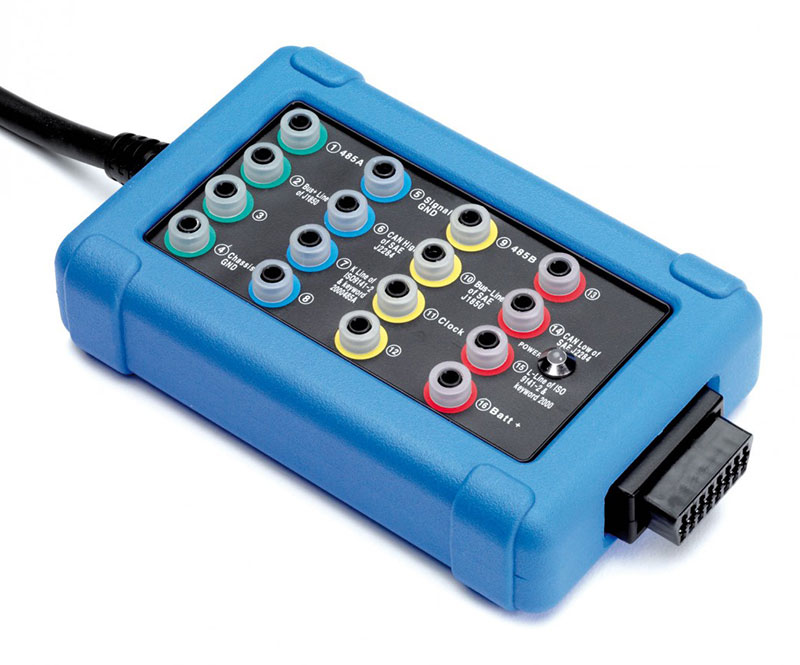

The CAN Test Box uses numbered backlit LEDs which illuminate when signal data is present on the corresponding pin of the DLC.

Pulsing LEDs indicate signals being pulled high/low.

The LEDs indicate the following signals:

  • LED 1/9 - 485A/485B (Manufacturer’s proprietary information)
  • LED 2/10 - Bus+ Line J1850/Bus- Line J1850
  • LED 3/8/12/13 - future upgrade
  • LED 4 - Chassis GND (GROUND)
  • LED 5 - Signal GND (SIGNAL)
  • LED 6/14 - CAN High of SAE J2284/CAN Low of SAE J2284
  • LED 7/15 K Line of ISO9141-2 and keyword 2000485A/L Line of ISO9141-2 and
  • keyword 2000
  • LED 11 - Clock
  • LED 16 Batt+ (Voltage supply)

The CAN Test Box allows you to connect your PicoScope oscilloscope or any other compatible scope, enabling you to monitor any signals present such as the CAN High and Low signals. The CAN Test Box terminal pin ports are compatible with standard 4 mm jacks.

The CAN Test Box includes a 2.5 metre (8.2 feet) cable so that you can work in a convenient location away from the diagnostic connector, and an additional pass-through connector so that you can hook up your scan tool at the same time as your scope. The box is powered by the diagnostic connector, so no batteries or mains adaptor are needed.

Typical Uses

The connection of the Can Test Box to the 16 pin vehicle diagnostic connector provides a non-intrusive test point for all associated circuits.

The unit's LEDs will illuminate to indicate the status of the 16 pins. The 4mm banana sockets enable simple connection of PicoScope for circuit analysis, “jumper wires” for flash code interrogation, and on board “memory save” devices (During battery disconnection)

The pass-through connector and 2.5 meter cable allows the Can Test Box to be used in series with your scan tool. The CAN Test Box can be conveniently located in a remote location, away from the 16 pin connector allowing for simultaneous scan tool and scope tests. (See below)

  • Power and ground test for communication errors
  • CAN HI CAN LOW activity (depending on manufacturer)
  • Convenient “jumper wire” access point for flash code access or initialisation procedures
  • Convenient point for “memory save” device connection
  • Remote access to concealed 16 pin connectors via 2.5 meter cable
  • Pass-through feature does not restrict scan tool access when connected

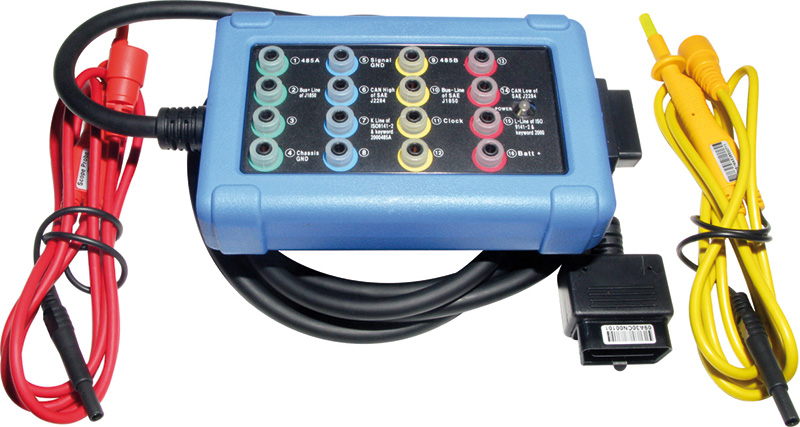

PICO-PP619 CAN Test Box
PICO-PP619 CAN Test Box
CAN Test Box
R 5,694.00

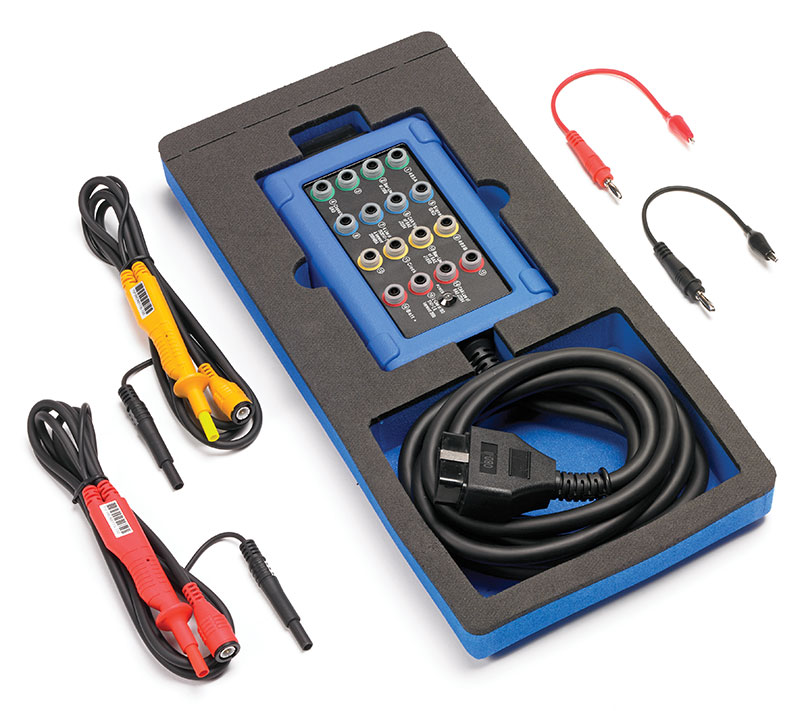

PICO-PQ024 CAN Test Box in Foam
PICO-PQ024 CAN Test Box in Foam
CAN Test Box in Foam
R 6,695.72

Watch - Can Bus Testing (1hr 14min)

CAN Bus Testing with PicoScope

Watch - Can Bus Testing Q&A (55min)

CAN Bus Testing Q&A

Watch - CAN Test Box in action
