WPS600C Hydraulic Pressure Transducer (60/600 bar)

Introduction

With high accuracy and a wide measuring range, the WPS600C Hydraulic Pressure Transducer connects to your PicoScope for convenient analysis and diagnosis of pressurized systems.

  • Accurately measure up to 600 bar (8700 psi)
  • Ultra-fast 100 microsecond response time (0% to 90% of full scale)
  • Internal rechargeable LiPo battery
  • Industry-standard M16 x 2 test point connector
  • Auto zeroing
  • High noise immunity
  • Temperature compensated

Not for continuous operation.

Please Note: Due to the wide range of hydraulic fittings in use we do not supply any specific adaptors or hoses for use with this product. Those provided with the low pressure WPS500X are not suitable for use with the higher pressure hydraulic systems.

We recommend contacting your regular hydraulic hose supplier for any additional fittings or custom hose assemblies you may require to suit your specific system.

Pressure Ranges

Two pressure ranges for increased versatility

The two pressure ranges of the WPS600C allow accurate measurement and diagnosis of permanent and non-permanent automotive and industrial hydraulic systems.

Range 1

The first range, 0 to 600 bar (approximately 8700 psi) gives you high resolution and accuracy for high-pressure tests in hydraulic systems.

Range 2

The second range measures from 0 to 60 bar (approximately 870 psi). This range is ideal for low-pressure hydraulic systems and oil pumps.

Range Pressure Range Accuracy Response Time Output Scaling
1 0 to 600 bar
0 to 8700 psi
1% of scale 100 µs 1 V/100 bar
1 V/1450 psi
2 0 to 60 bar
0 to 870 psi
1% of scale 100 µs 1 V/10 bar
1 V/145 psi

What's in the pack?

  • 2 x WPS600C Pressure Transducer
  • 1 x Carrying Case
  • 2 x USB Charging Cables
  • 2 x BNC to BNC 2m Cables
  • 1 x User’s Guide
Nothing compares to the WPS600

It is not unusual to require a different pressure transducer for each diagnostic test you want to run. The WPS600C eliminates this need by giving you one ultra-high resolution transducer that can be used for a multitude of hydraulic diagnostics applications. With two pressure ranges and a rechargeable Li-Po battery, all enclosed in a durable housing the WPS600C is the cost-effective answer to pressure analysis.

When price, performance and versatility matter, there is nothing that compares to the WPS600C Pressure Transducer.

Typical Uses

The WPS600C pressure transducer extends the features of the WPS500X to hydraulic systems associated with commercial vehicles and plant machinery. Allowing pressure up to 600 bar to be monitored against time enables the technician to connect the WPS600C to the relevant hydraulic test port, then view activity and transitions in hydraulic pressure that were never previously visible with conventional gauges.

  • Hydraulic pump performance
  • Hydraulic valve switching activity
  • Hydraulic pressure control valve performance
  • Hydraulic pressure decay
  • Residual hydraulic pressure

The Engine and Hydraulics Kit

The new 4425A Engine and Hydraulics Kit combines our Diesel Diagnostics Kit with two WPS600C Hydraulic Pressure Transducers, enabling you to diagnose faults quickly and accurately on many different types of mobile machinery.

PICO-PQ117 4425 4-Channel Engine & Hydraulics Kit

New Flow Meters: A new range of hydraulic flow meters has just been released. Please contact us for more information, if you are interested in testing dynamic flow rates in your hydraulic systems.

Image Rotate
PICO-PP833 WPS600C Hydraulic Pressure Transducer in Case
WPS600C Hydraulic Pressure Transducer in Case
PICO-PP833
R 20,535.31
PICO-PP833 WPS600 Hydraulic Pressure Transducer
PICO-PA041 Carry Case: WPS500X Pressure Transducer
Carry Case: WPS500X Pressure Transducer
PICO-PA041
R 1,439.32

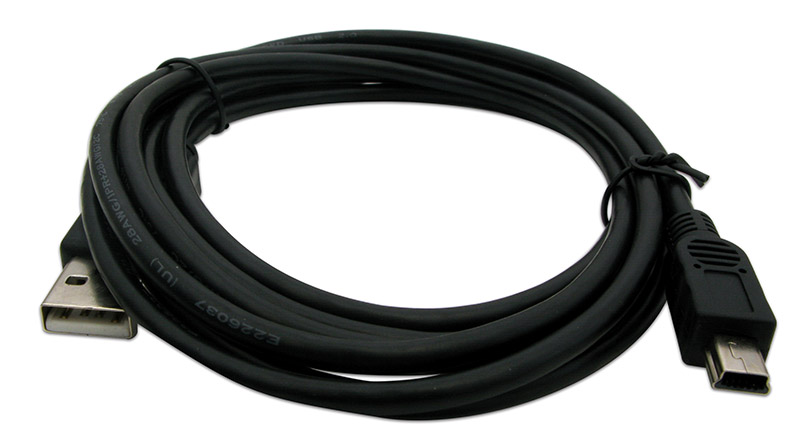

PICO-TA081 USB A Male to Mini-USB 5-pin Charging Cable 2m
PICO-TA081 USB 5-pin Charging Cable 2m
USB 5-pin Charging Cable 2m
PICO-TA081
R 90.95

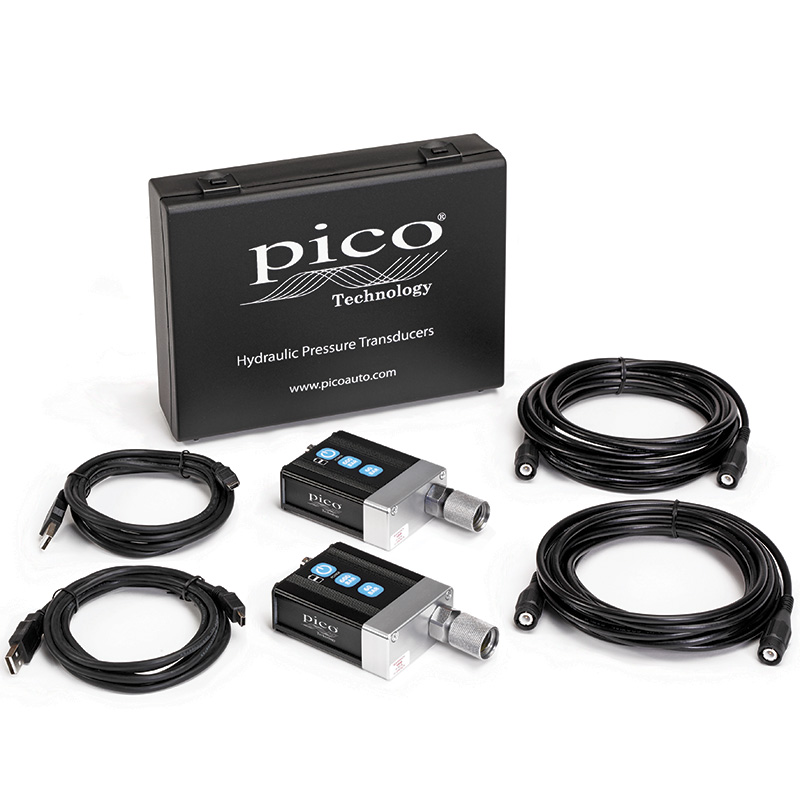

PICO-PQ108 WPS600C Dual Hydraulic Kit
PICO-PQ108 WPS600C Dual Hydraulic Kit
WPS600C Dual Hydraulic Kit
PICO-PQ108
R 40,227.06

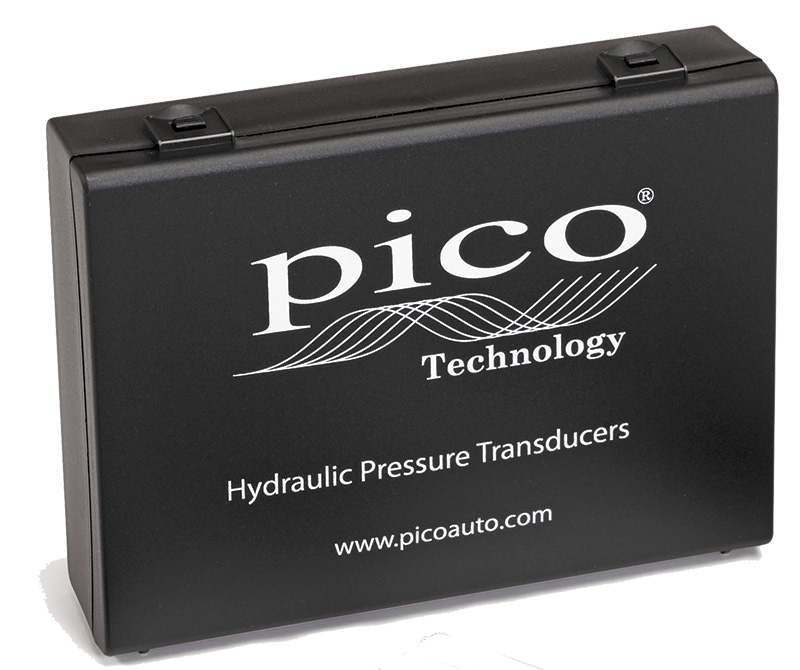

PICO-PA156 Carry Case: Dual WPS600C Small Case M2000
