PicoScope Active Diagnostics with PicoBNC+™

Discussing captured CAM Waveforms using a 4225A PicoScope

PicoBNC+™ probe connectivity, which is unique to the PicoScope 4225A and 4425A Oscilloscopes, provides you with ~

  • Channel status lights to show you which probes and channels to connect and their status when you load a data file or guided test;
  • Smart probe interfacing so that all your probe configuration takes place in the software - no more incorrect probe switch positions!;
  • Powered probes that are always on and ready to go - no more flat batteries, current clamp zeroing, or auto-off!;
  • Future-proofing of your diagnostic capabilities as we develop new probe technologies;
  • Full backward-compatibility with BNC for all your existing PicoScope or third-party probes.

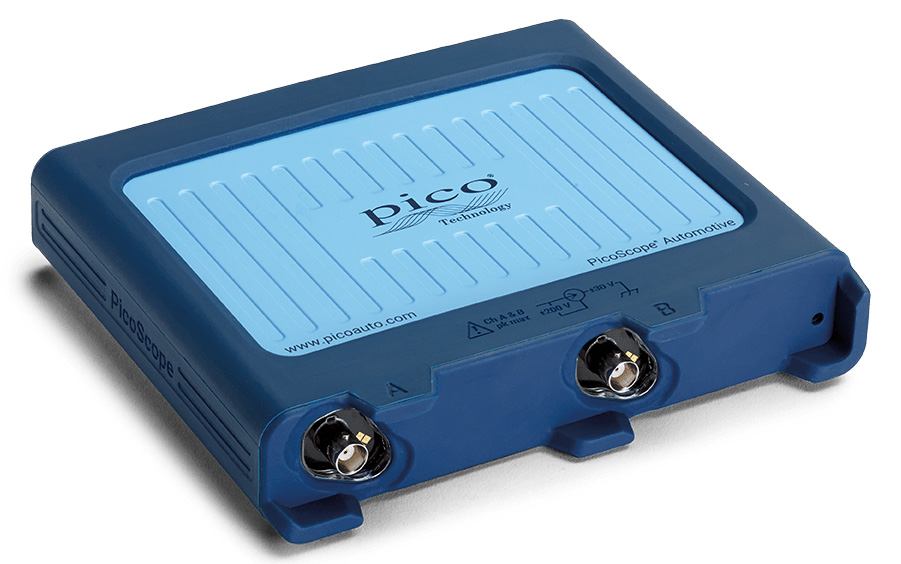

4225 Automotive PicoScope

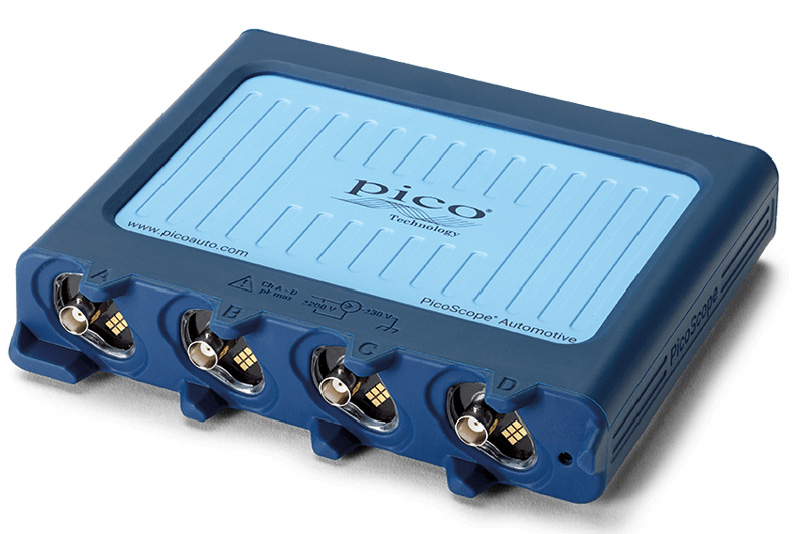

4425A 4-Channel PicoScope

All of our Automotive PicoScopes have the features that have already helped technicians around the world with vehicle diagnostics ~

4425A PicoScope with PicoBNC+ Test Leads - Powerful Diagnostics, easy to setup and use
  • 400M samples/second and 20MHz bandwidth to make sure you can test the latest vehicles such as those with high-speed CAN-FD networks;
  • 12-bit (16-bit enhanced) resolution - your waveforms in high definition;
  • 250M sample memory for long-duration captures; ideal when you are trying to diagnose intermittent faults;
  • USB 3.0 data transfer speeds and power that provides you with high performance and portability.

Have a look at the Comparative Specifications of our PicoScopes.

Image Rotate
PICO-PQ173 4225A 2-Channel PicoScope only
4225A 2-Channel PicoScope only
PICO-PQ173
R 14,292.13
Image Rotate
PICO-PQ174 4425A 4-Channel PicoScope only
4425A 4-Channel PicoScope only
PICO-PQ174
R 23,128.07
