PICO-TA467

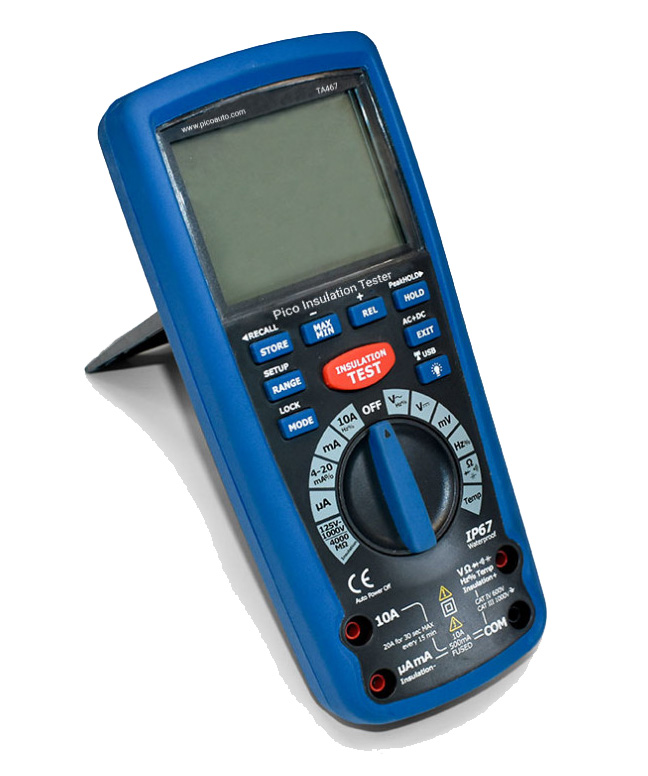

The Pico Insulation Tester is a 40,000 count multi-meter and insulation tester. It has a blue-tooth interface for logging. All the usual multi-meter measurements are supported and it includes a thermocouple for temperature measurement. Insulation test voltages are adjustable up to 1kV.
R 5,089.00 ex VATR 763.35 VATR 5,852.35 inc VAT
Download the User's Guide
Download the Windows Software

The Pico Insulation Tester is part of the EV Kit and can be purchased separately.

The TA467 Insulation Tester is specially designed for vehicles with on-board high voltages and conforms to EN61010 CAT III (1000 volts) and CAT IV (600 volts). The insulation test function allows testing of the high-voltage wires found on high-voltage vehicles.

Danger: High voltages are generated by the insulation tester when testing insulation. Caution and PPE should always be used to prevent electrical shock. High voltages can cause serious injury or death and can damage equipment. This instrument should not be used by untrained personnel and should be kept out of reach of children.

Items Supplied

  • Bluetooth Interface
  • Ground Clip Lead
  • 2x Water Resistant Socket Plugs
  • 2x Test Leads, Red and Black
  • TA467 Meter
  • 6x AA Batteries (Rechargable Batteries can be used)
  • Manual
  • K-Type Interface
  • K-Type Thermocouple

It can be used as a stand-alone device or linked wirelessly, with the supplied USB interface, to a PC or laptop so that the results can be graphed, saved or printed.

In addition to the insulation test, it can be used to test diodes and to measure AC/DC voltage, AC/DC current, resistance, capacitance, frequency (electrical and electronic), duty cycle, continuity and thermocouple temperature. It can store and recall data and features a waterproof, rugged design for heavy-duty use.

Features

Features
Storage capacity 2000 measurements
Enclosure Double-molded, IP67 waterproof
Shock (drop test) 6.5 feet (2 meters)
Diode test Test current of 0.9 mA maximum, open circuit voltage 2.8 V DC typical
Continuity check Audible signal will sound if the resistance is less than 35 Ω (approximately), test current < 0.35 mA.
PEAK Captures peaks > 1 ms
Temperature sensor Uses a Type-K thermocouple (supplied)
Input Impedance >10 MΩ VDC and >9 MΩ V AC
AC response True RMS
AC True RMS The term stands for “Root-Mean-Square”, which represents the method used to calculate the voltage or current value. Average responding multi-meters are calibrated to read correctly only on sine waves, and they will read inaccurately on non-sine wave or distorted signals. True RMS meters read accurately on either type of signal.
AC V Bandwidth 50 Hz to 1000 Hz
Crest factor ≤ 3 at full-scale up to 500 V, decreasing linearly to ≤ 1.5 at 1000 V.
Display 40,000 count backlit liquid crystal with bar-graph
Overrange indication “OL” is displayed
Auto power off 15 minutes (approximately) with the disable-feature
Polarity Automatic (no indication for positive); minus (-) sign for negative
Measurement rate 2 times per second, nominal
Low battery indication Displayed if the battery voltage drops below operating voltage.
Battery 6 x AA batteries
Fuses mA, µA ranges; 0.5 A/1000 V ceramic fast
Safety See the PicoScope® 4225A and 4425A automotive oscilloscope and accessories Safety Guide for the complete safety information.

Specifications

Notes: Accuracy specifications consist of two elements:

  • (% reading) - This is the accuracy of the measurement circuit.
  • (+ digits) - This is the accuracy of the analogue-to-digital converter

Accuracy is specified at 65°F to 83°F (18°C to 28°C) and less than 75% RH.

AC accuracy depends on the purity of the sine wave. The error generally increases ±(2% reading + 2% full scale) for other waveforms with a crest factor of less than 3.0.

Voltage Specifications
Function Range Resolution Accuracy
DC Voltage 400 mV 10 μV ±(0.06% reading + 4 digits)
4 V 100 μV
40 V 1 mV
400 V 10 mV
1 kV 100 mV ± (0.1% reading + 5 digits)
AC Voltage 400 mV 100 μV ±(1% reading + 7 digits)
4 V 1 mV
40 V 10 mV ±(1% reading + 5 digits)
400 V 100 mV
1 kV 1 V
AC + DC Voltage 400 mV 100 μV ±(1% reading + 7 digits)
4 V 1 mV
40 V 10 mV
400 V 100 mV
1 kV 1 V
All AC voltage ranges are specified from 5% of range to 100% of range.
Current Specifications
Function Range Resolution Accuracy
DC Current 400 μA 10 nA ±(1% reading + 3 digits)
4 mA 100 nA
40 mA 1 μA
400 mA 10 μA
10 A 1 mA
20 A 30 seconds max with reduced accuracy
AC Current (AC + DC) 50 Hz to 1 kHz
400 μA 100 nA ±(1.5% reading + 7 digits)
4 mA 1 μA
40 mA 10 μA
400 mA 100 μA
10 A 10 mA
AC + DC Current 400 μA 100 nA ±(1.5% reading + 7 digits)
4 mA 1 μA
40 mA 10 μA
400 mA 100 μA
10 A 10 mA
20 A 30 seconds max with reduced accuracy
All AC current ranges are specified from 5% of range to 100% of range.
Resistance Specifications
Function Range Resolution Accuracy
Resistance 400 Ω 10 mΩ ±(0.3% reading + 9 digits)
4 kΩ 100 mΩ ±(0.3% reading + 4 digits)
40 kΩ 1 Ω
400 kΩ 10 Ω
4 MΩ 1 kΩ
40 MΩ 1 kΩ ± (2.0% reading + 10 digits)
Capacitance Specifications
Function Range Resolution Accuracy
Capacitance 40 nF 1 pF ±(3.5% reading + 40 digits)
400 nF 10 pF
4 μF 100pF ±(3.5% reading + 10 digits)
40 μF 1 nF
400 μF 10 nF
4 mF 100 nF ±(3.5% reading + 10 digits)
40 mF 1 μF
Frequency Specifications (Electronic)
Function Range Resolution Accuracy
Frequency (Electronic) 40 Hz 1 mHz ±(0.1% reading + 1 digit)
400 Hz 10 mHz
4 kHz 100 mHz
40 kHz 1 Hz
400 kHz 10 Hz
4 MHz 100 Hz
40 MHz 1 kHz
100 MHz 10 kHz Not Specified
Sensitivity: 0.8 V RMS min. @ 20% to 80% duty cycle and <100 kHz; 5 V RMS min @ 20% to 80% duty cycle and >100 kHz.
Frequency (Electrical) 40 Hz - 10 kHz 10 mHz - 1 Hz ±(0.5% reading)
Sensitivity: 1 V RMS
Temperature (Type K Thermocouple)
Function Range Resolution Accuracy
Temperature (Type K) -50 to 1000 °C 0.1 °C ±(1.0% reading + 2.5 °C)
- 58 to 1832 °F 0.1 °F ±(1.0% reading + 4.5 °F)
Industrial 4-20mA Control
Function Range Resolution Accuracy
4-20mA% -25 % to 125 % 0.1 % ±50 digits
0 mA = -25%, 4 mA = 0%, 20 mA = 100%, 24 mA = 125%

Insulation Test Specifications

Danger: High voltages are generated by the insulation tester when testing insulation. Caution and PPE should always be used to prevent electrical shock. High voltages can cause serious injury or death and can damage equipment. This instrument should not be used by untrained personnel and should be kept out of reach of children.

Insulation Test (Megaohm) Specifications
Terminal Voltage Range Resolution Accuracy Test Current Short Circuit Current
125 V (0% ~ +10%) 125 kΩ ~ 4.000 MΩ 1 kΩ ±(2% + 10) 1 mA @ load 125 kΩ ≤ 1 mA
4.001 ~ 40.00 MΩ 10 kΩ
40.01 ~ 400.0 MΩ 100 kΩ ±(4% + 5)
400.1 ~ 4000 MΩ 1 MΩ ±(5% + 5)
250 V (0% ~ +10%) 0.250 ~ 4.000 MΩ 1 kΩ ±(2% + 10) 1 mA @ load 250 kΩ
4.001 ~ 40.00 MΩ 10 kΩ
40.01 ~ 400.0 MΩ 100 kΩ ±(3% + 5)
400.1 ~ 4.000 MΩ 1 MΩ ±(4% + 5)
500 V (0% ~ +10%) 0.500 ~ 4.000 MΩ 1 kΩ ±(2% + 10) 1 mA @ load 500 kΩ
4.001 ~ 40.00 MΩ 10 kΩ
40.01 ~ 400.0 MΩ 100 kΩ ±(3% + 5)
400.1 ~ 4000 MΩ 1 MΩ ±(4% + 5)
1000 V (0% ~ +10%) 1.000 ~ 4.000 MΩ 1 kΩ ±(2% + 10) 1 mA @ load 1 MΩ
4.001 ~ 40.00 MΩ 10 kΩ
40.01 ~ 400.0 MΩ 100 kΩ ±(3% + 5)
400.1 ~ 4000 MΩ 1 MΩ ±(4% + 5)
