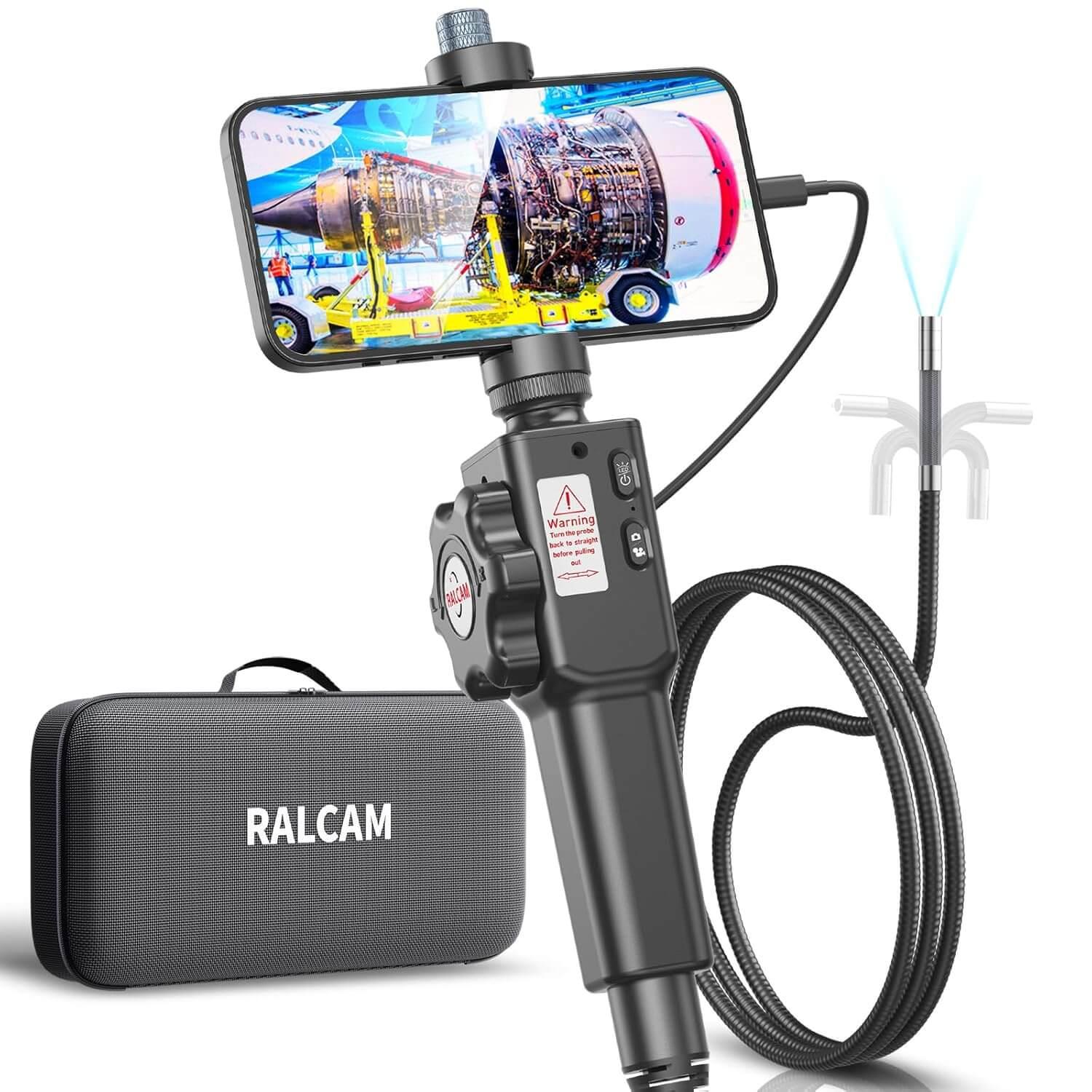

The f4a Articulating Borescope for Smartphone and iPhone has automatic video capture and its resolution is high (1080p). Its probe is waterproof and the unit has USB connectivity. It is supplied in a protective case.

• Works seamlessly with both Android and iOS devices via an app and a USB connection.

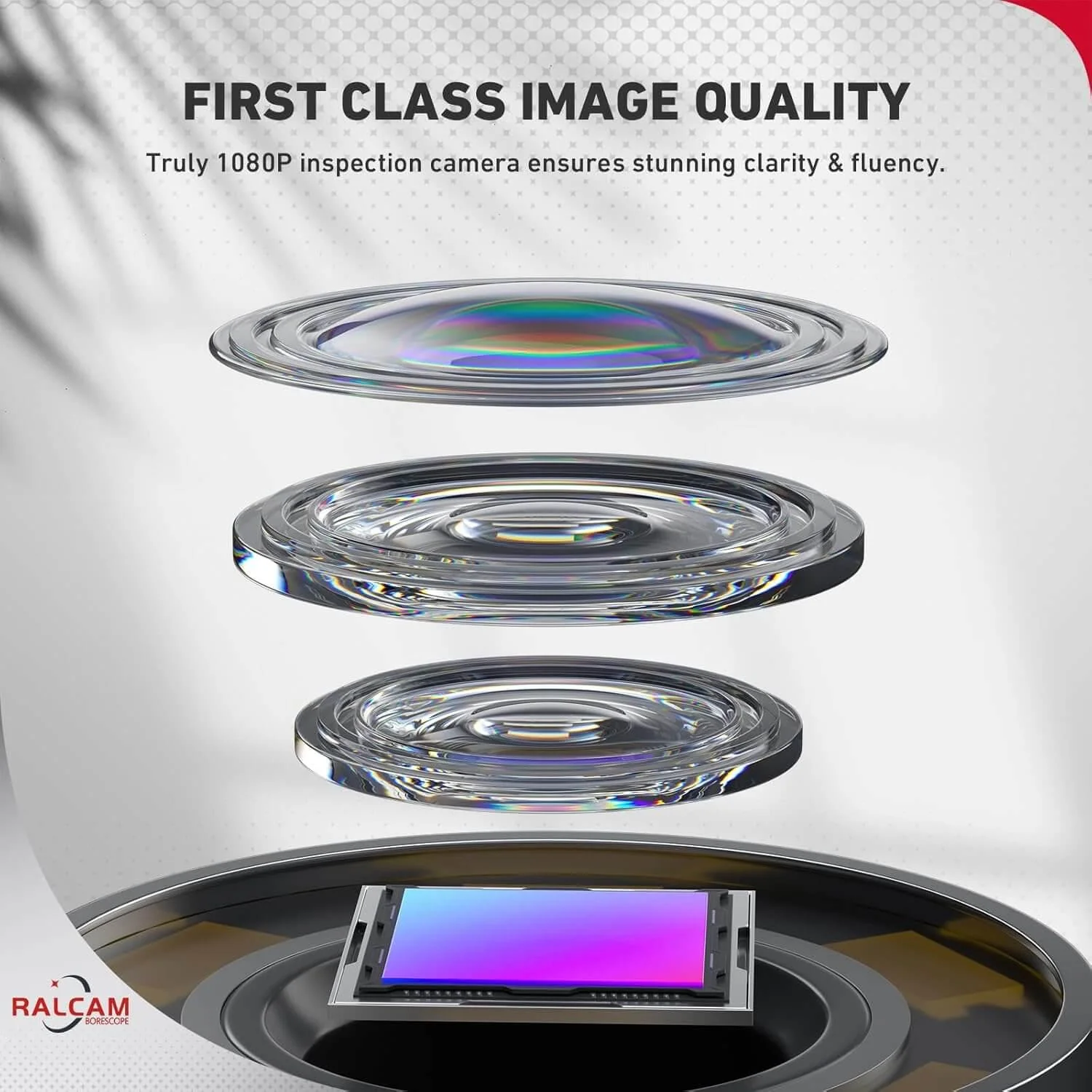

• High Image Clarity — 1080p with eight LED illumination, adjustable brightness
• Up to three-hours working time — 2,200 mAh Rechargeable Battery
• Solid and secure, adjustable Cell Phone Clamp (Holder)

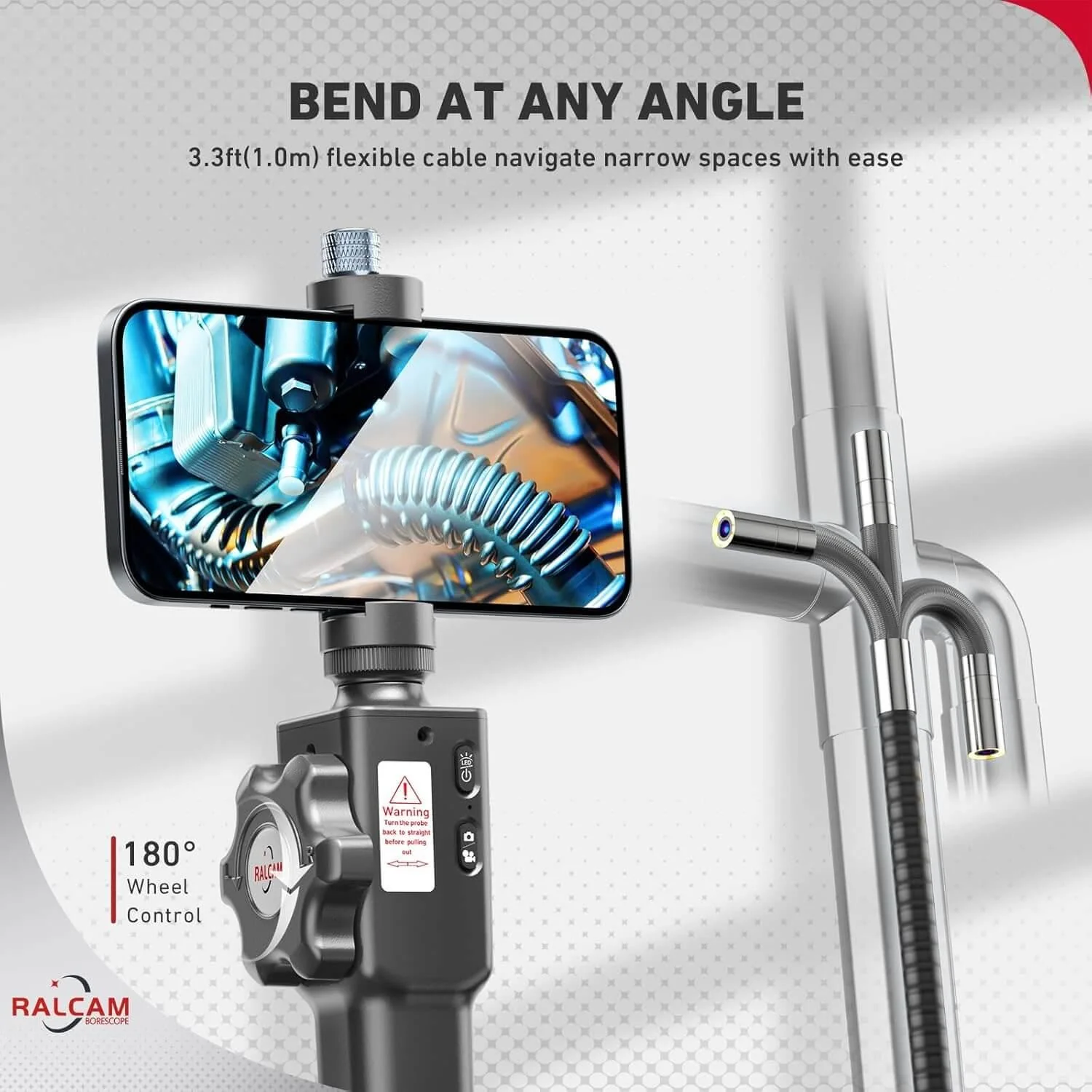

• 2-way articulating probe with a flexible snake tube.
• Available in 5.5 mm, 6.2 mm, and 8.5 mm camera diameters.
• IP67 waterproof and oil-proof.
• CE, FCC, RoHS, and patent-certified for global market compliance.
• One-year Warranty

Features

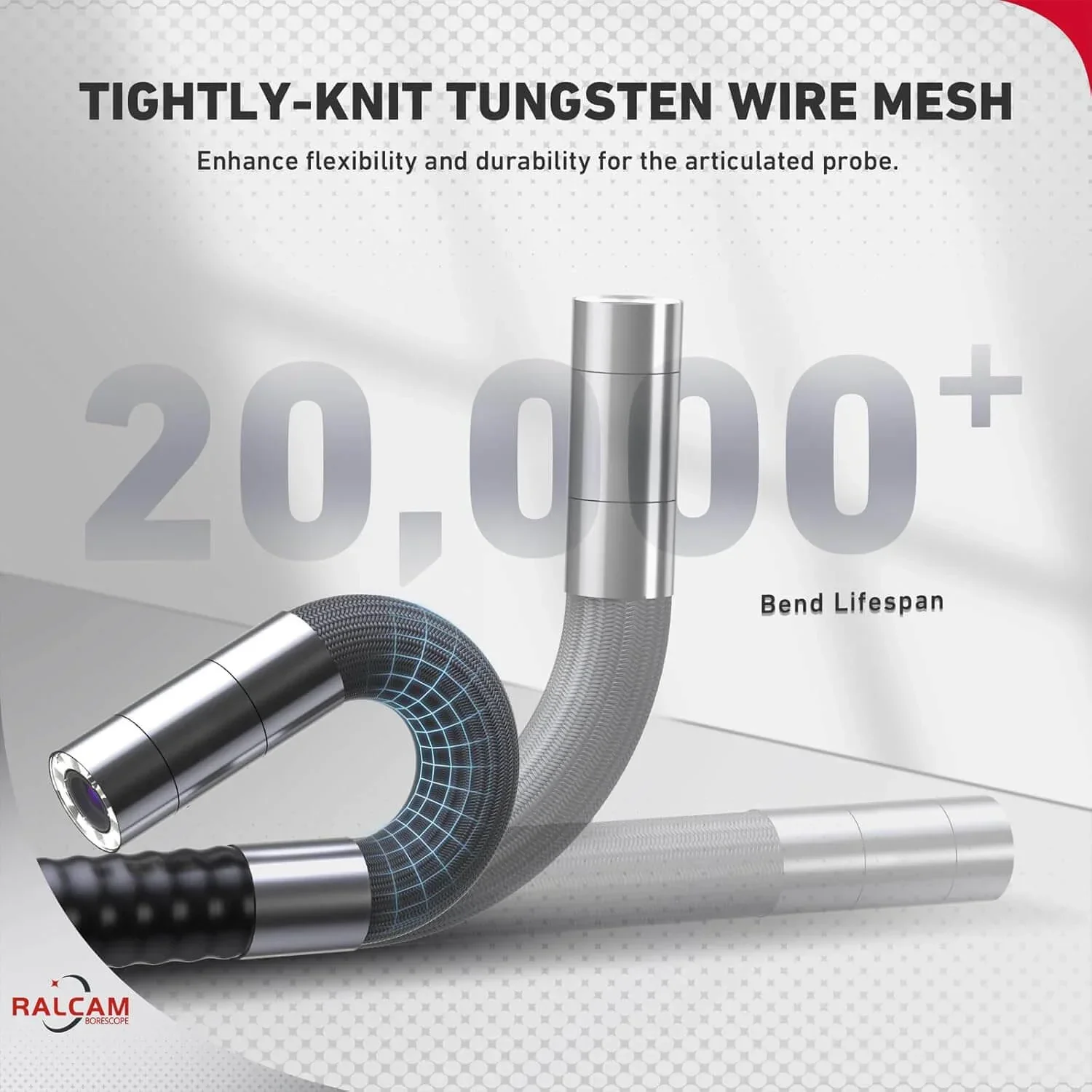

The camera can be articulated at any angle and can even look backwards. Ideal for valve inspection in internal combustion engines. The camera lenses and sensor provide clear and sharp images. The tightly knitted tungsten wire mesh is highly flexible and durable. Both Android Smartphones and iPhones can be used with this borescope.

Currently Available Models

F408A 8.5mm

Specifications

Model	F405A	F406A	F408A
Camera Diameter	5.5 mm	6.2 mm	8.5 mm
Snake Tube	Flexible
Pixels	1280 x 720		1920 x 1080
View Angle	100°		70°
Focus Distance	20 – 100 mm		30 – 80 mm

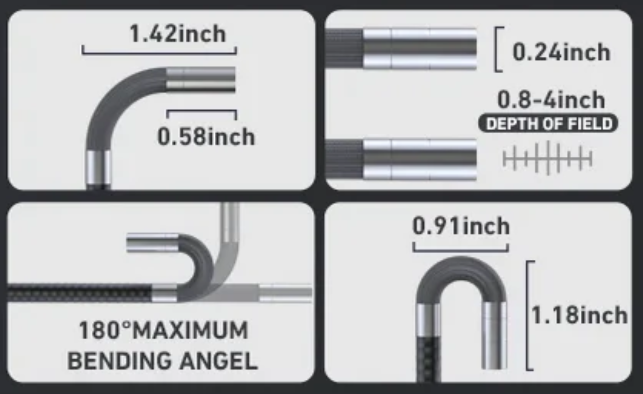

Steering Radius	25 mm		30 mm
Temperature	-10°C - 50°C < 90°C
Applications	Diesel & Petrol Engines		Petrol Engines
Box Size	42.2 x 21.5 x 8.5 cm
Box Mass	1.25 kg

Applications

Borescopes are used for visual, non-destructive inspection of hard-to-reach internal spaces and components in a variety of industries. These include aviation (engines), automotive (engines, fuel injectors, valves), manufacturing (machinery, welds, castings, pipes), oil and gas (pipelines, drilling equipment), construction/plumbing (walls, pipes, drains, electrical), and many others.

They allow inspection for defects like cracks, corrosion, blockages, and wear without the need for costly and time-consuming disassembly of equipment.
