Ralcam F6B 4-way Borescope
Borescope Prices will be added shortly.
Please contact us for a quote.

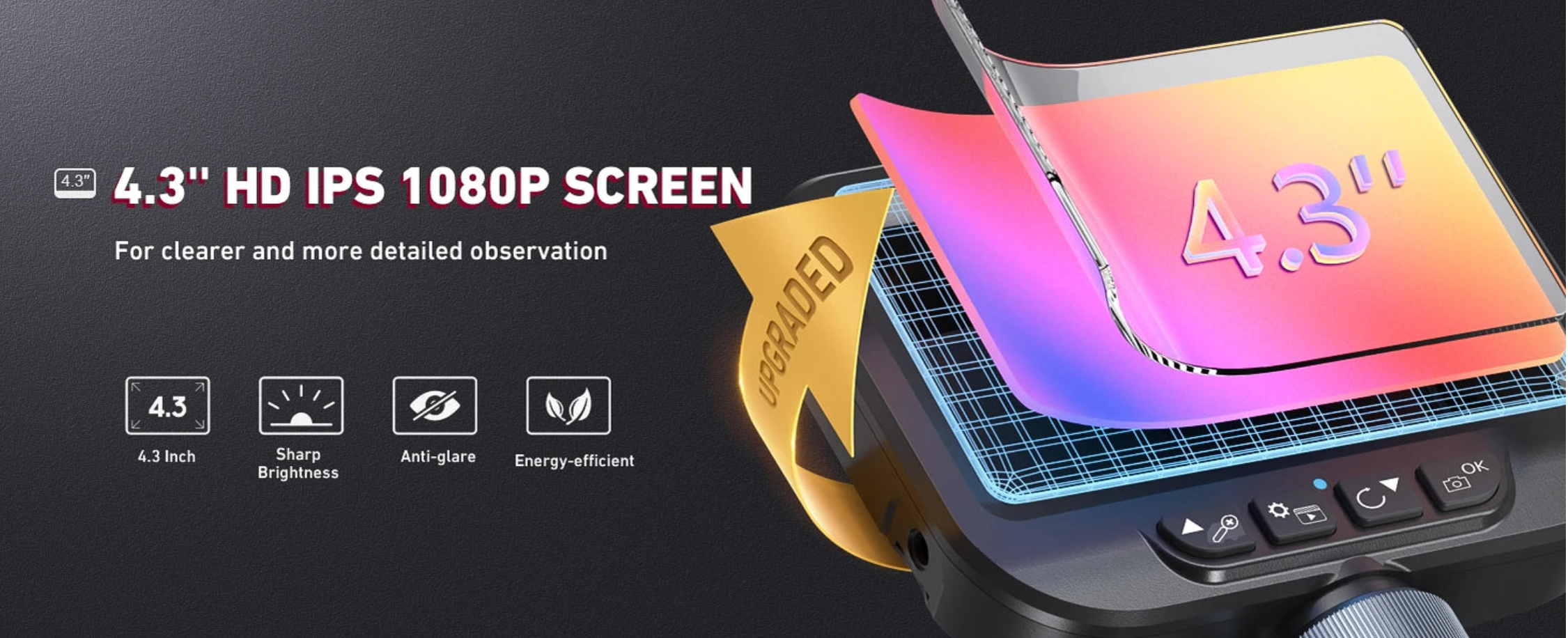

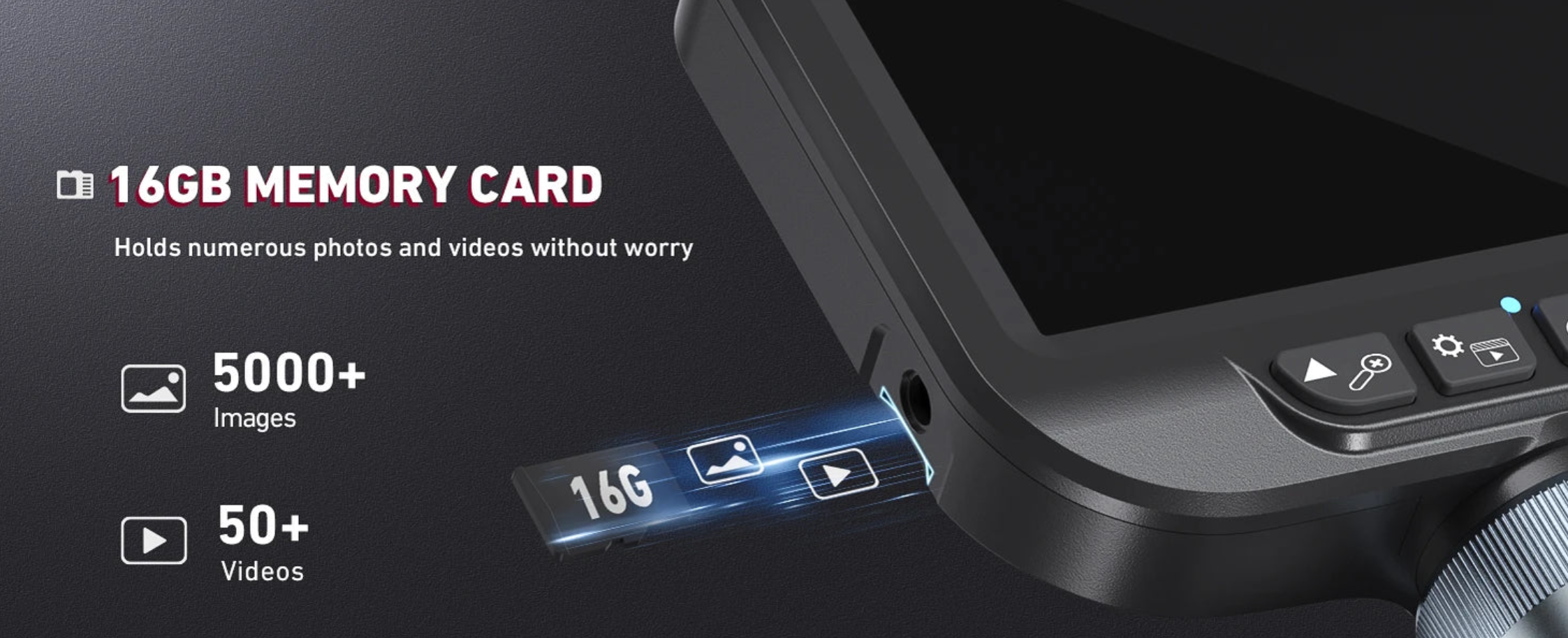

- 4.3-inch screen with photo and video recording; supports up to 32GB TF card

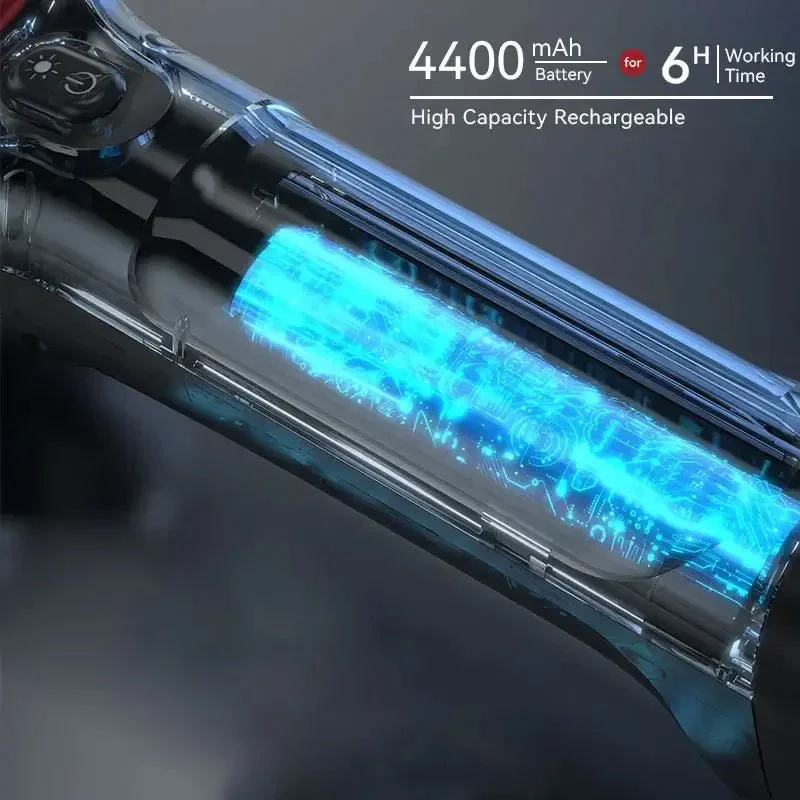

- Equipped with a 4400mAh battery, offering up to 6 hours of continuous use

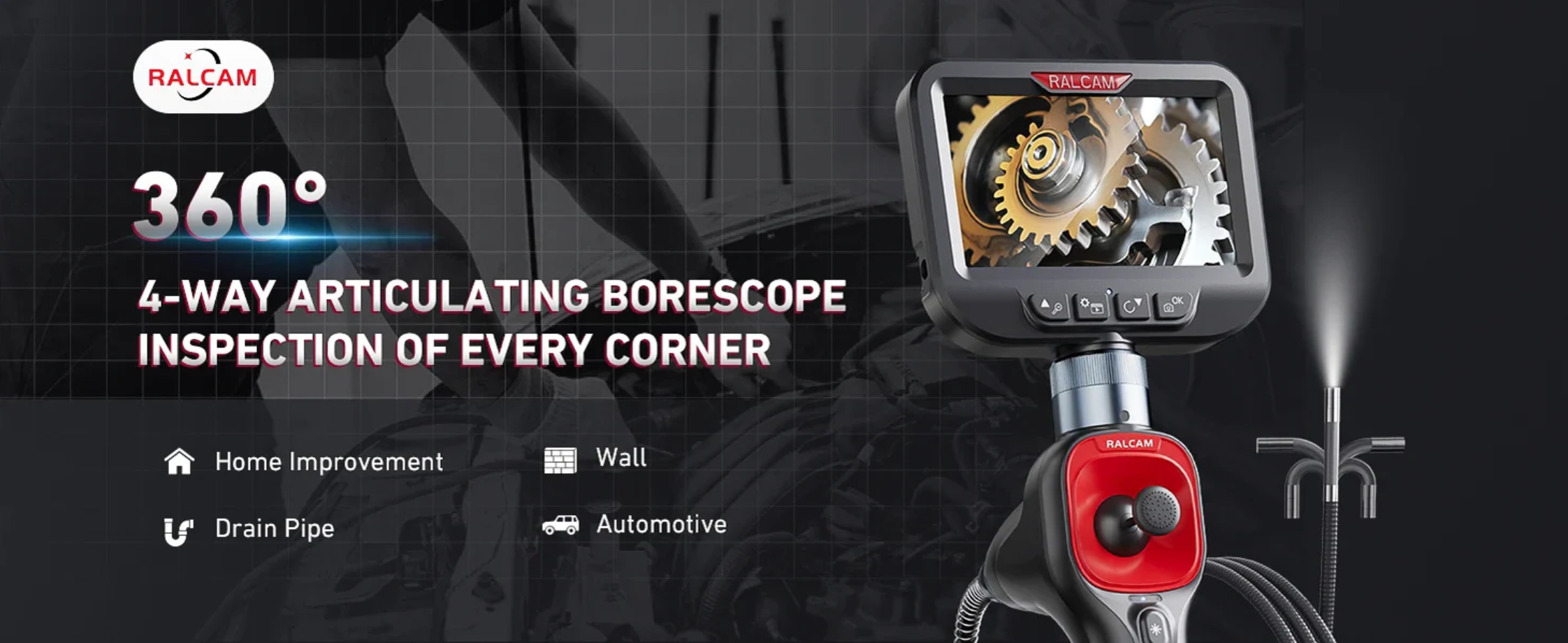

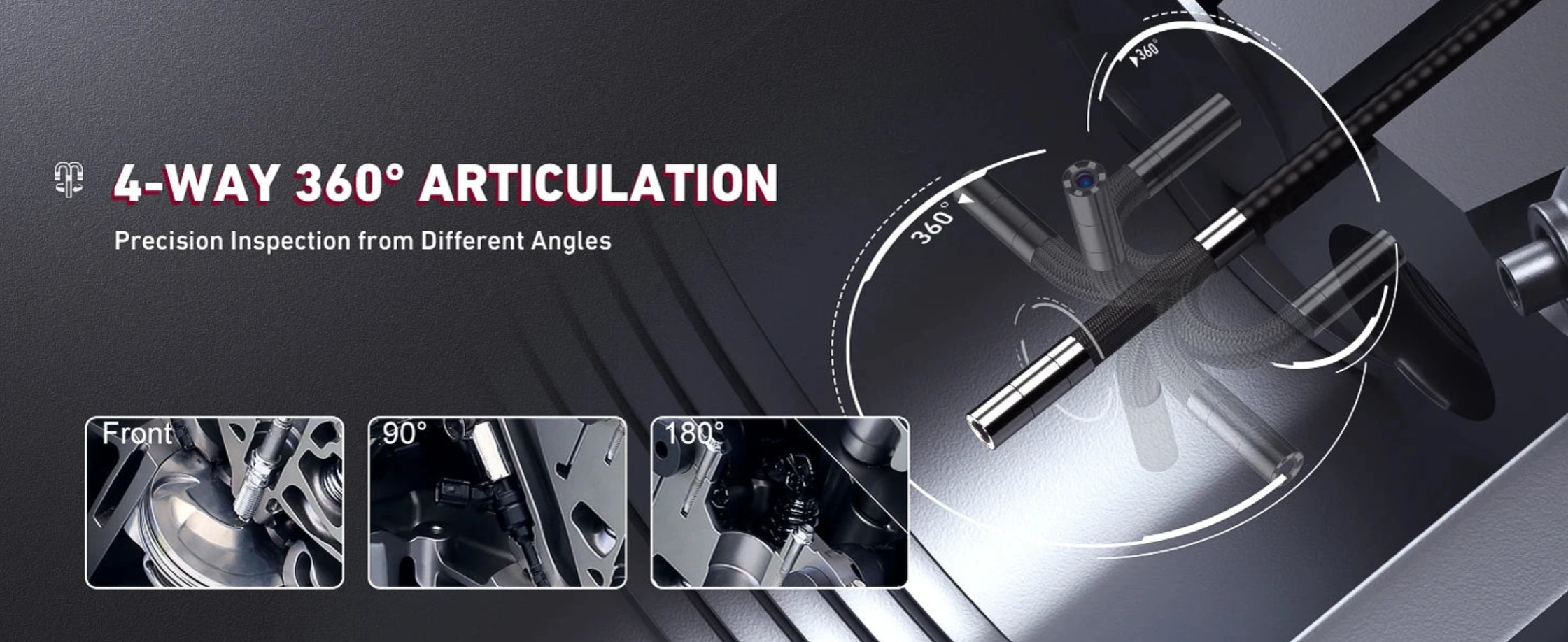

- 360° 4-way-articulation for full directional control
- IP67 waterproof and oilproof design for industrial applications

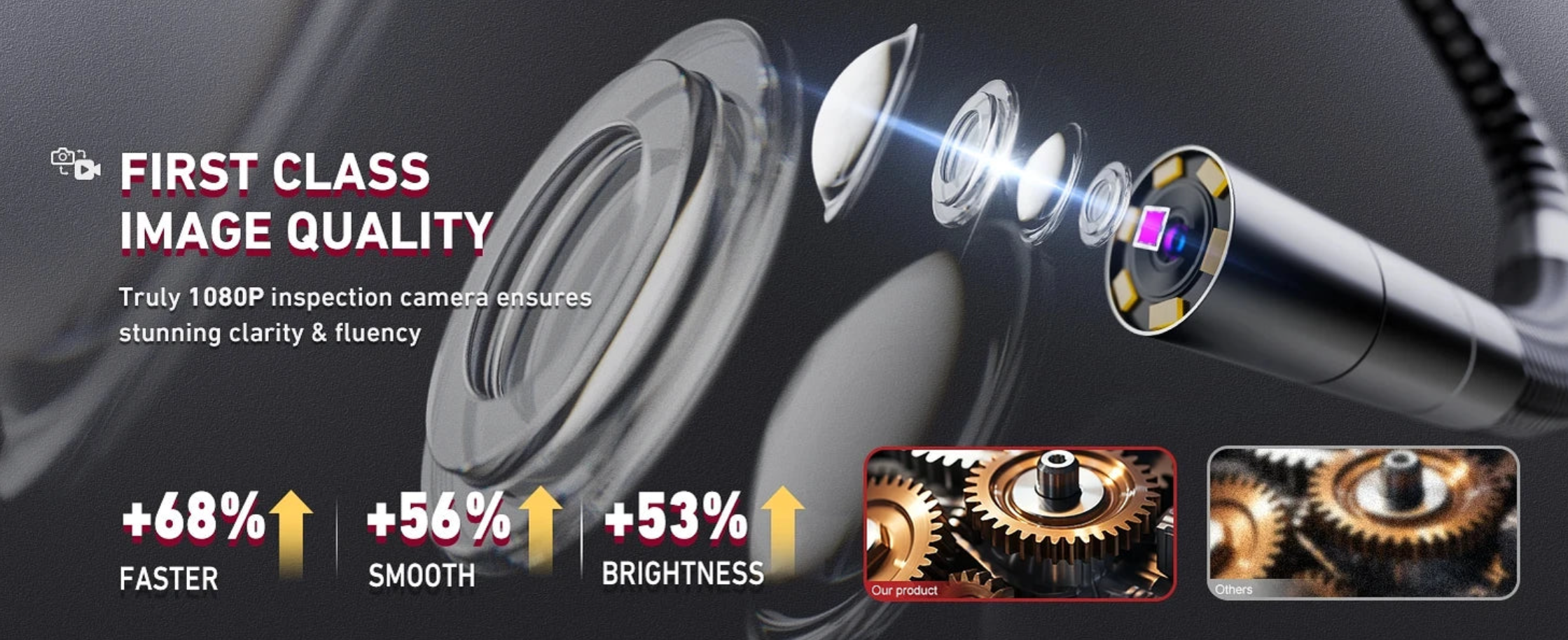

- High-definition 1280×720 camera with high-lumen LED illumination
- Focus distance: 8–100 mm; steering radius: 25–30 mm
- Available in 3.9 mm and 6.2 mm camera diameters with flexible probe
- Ideal for diesel and petrol engine inspection
- Certified by CE, FCC, RoHS
- Multi-language user interface including English, Chinese, Japanese, and more
Currently Available Versions:
F606B 6.2 mm
Description

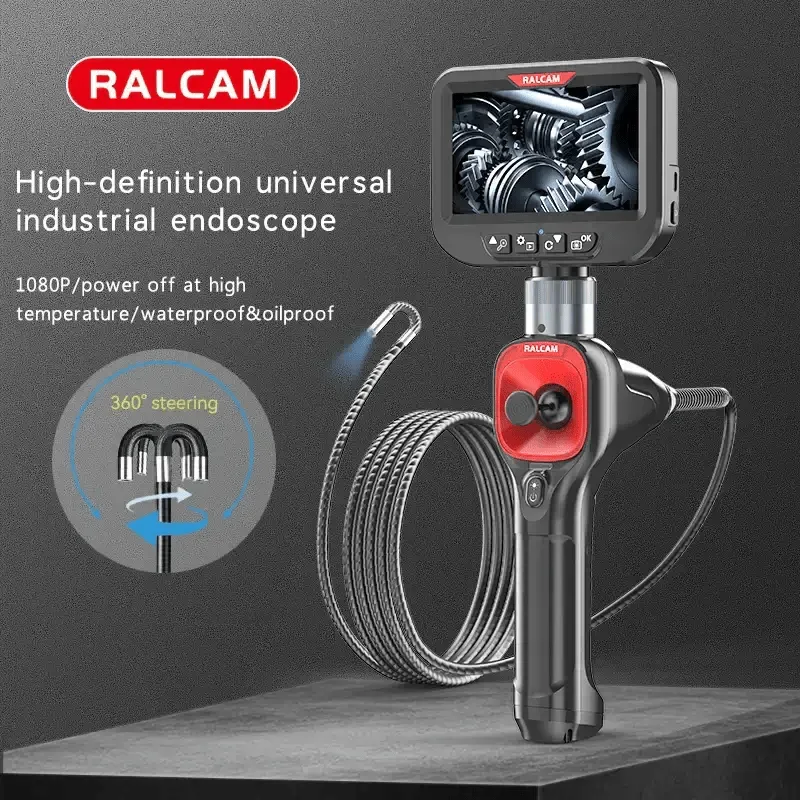

The Ralcam F6B Articulating Borescope with a built-in display is designed for professional use in automotive, industrial, and HVAC applications. It offers a range of features that make it a versatile tool for inspecting hard-to-reach areas, including engine compartments, HVAC ducts, and more.
Specifications
| Model | F604B | F606B |
|---|---|---|
| Camera Diameter | 3.9 mm | 6.2 mm |
| Snake Tube | Tungsten Wire Mesh | Flexible |
| Pixels | 1280 x 720 | |
| View Angle | 120° | 90° |
| LEDs | High Lumens | |
| Focus Distance | 8 – 80 mm | 20 – 100 mm |
| Steering Radius | 25 mm | 30 mm |
| Temperature | -10°C - 50°C < 90°C | |
| Applications | Diesel & Petrol Engines | |
| Box Size | 34.5 x 28 x 9 cm | |
| Box Mass | 1.55 kg | |
Watch — 4-way Articulating Borescope
With its 360° 4-way articulation, it can navigate tight spaces with ease, providing clear HD images for detailed inspections. The Ralcam F606A is compatible with both iOS and Android devices, making it accessible to a wide range of users. Additionally, its rugged design and IP67 water and oil-proof rating ensure durability and reliability in various environments.
Features

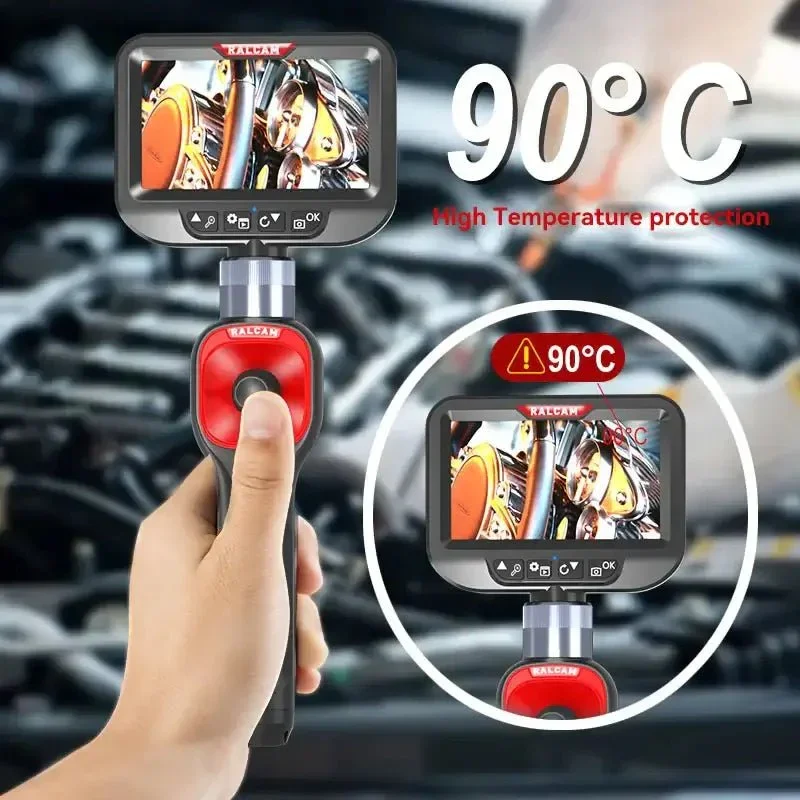

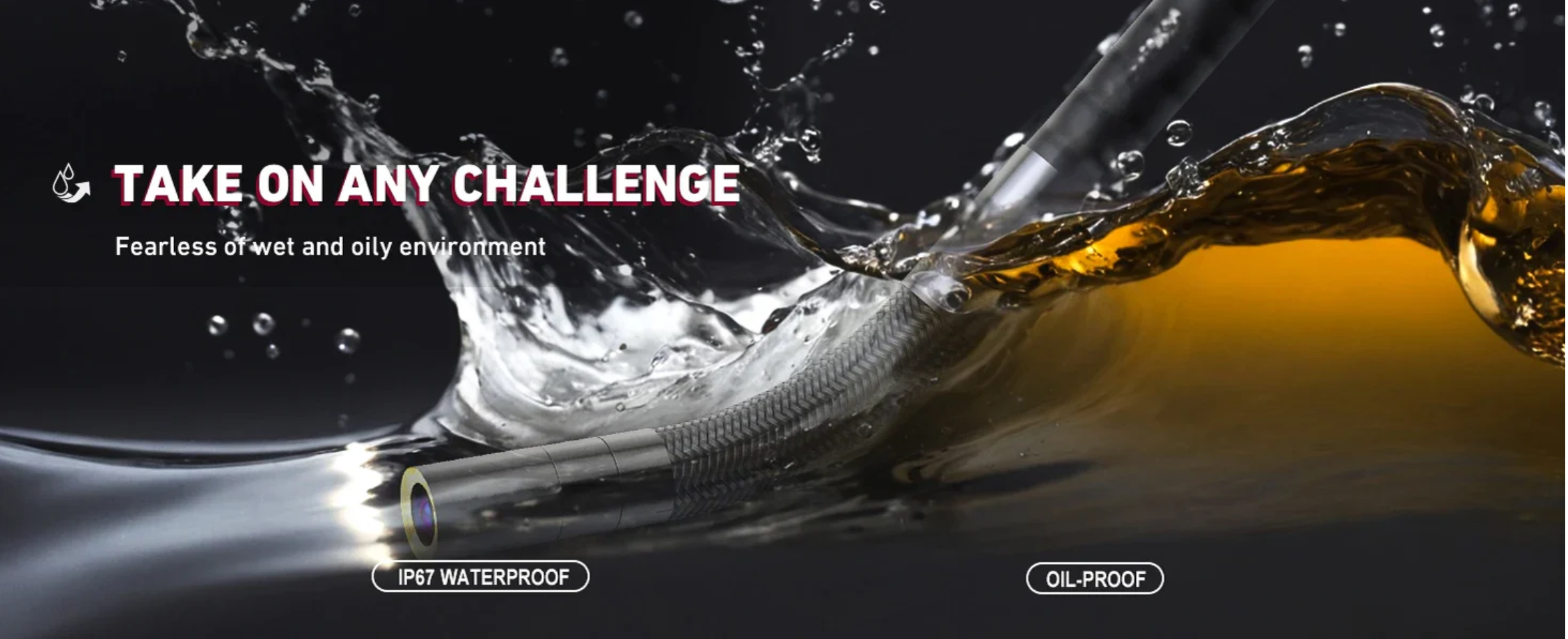

The camera probe is both water and oil-proof and has built-in led lighting with adjustable intensity. A temperature sensor warns you if the probe temperature is too high.

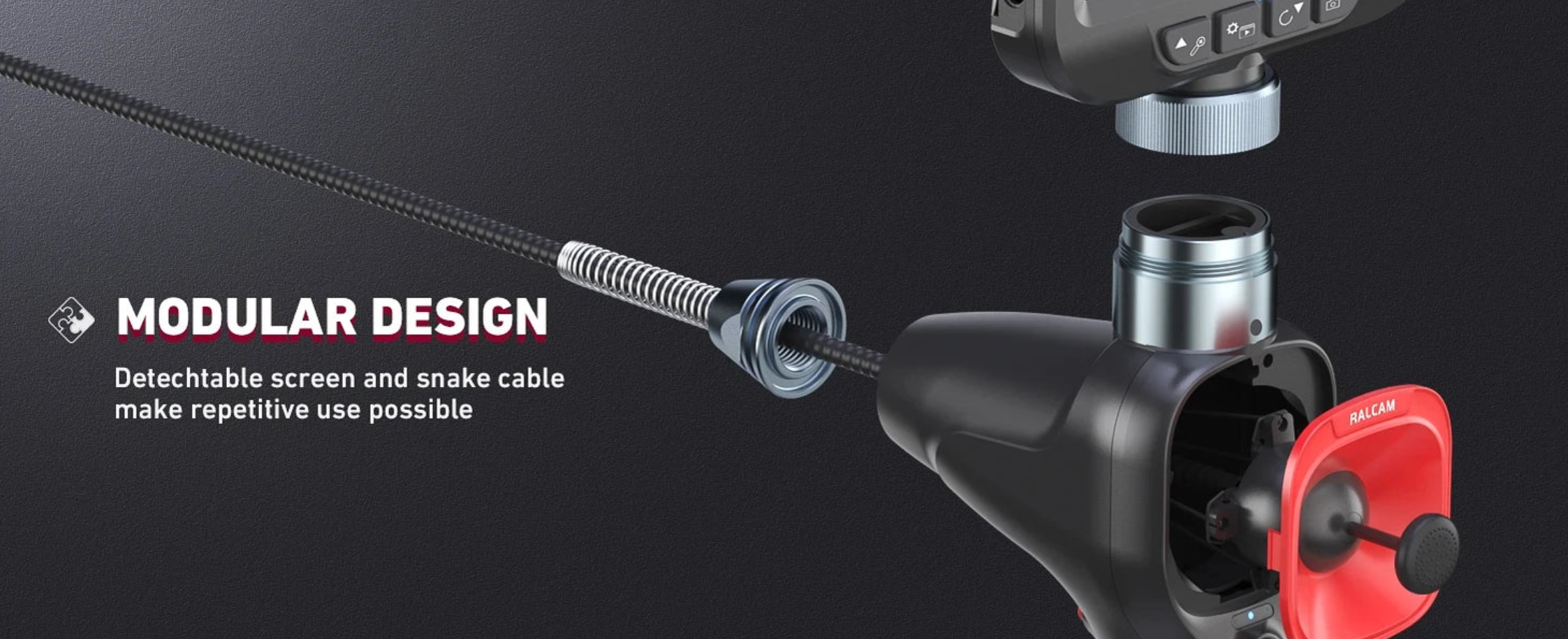

It has a high-resolution display. The camera tube is replaceable, as is the battery. The joystick is sensitive and permits 360 degrees of motion.

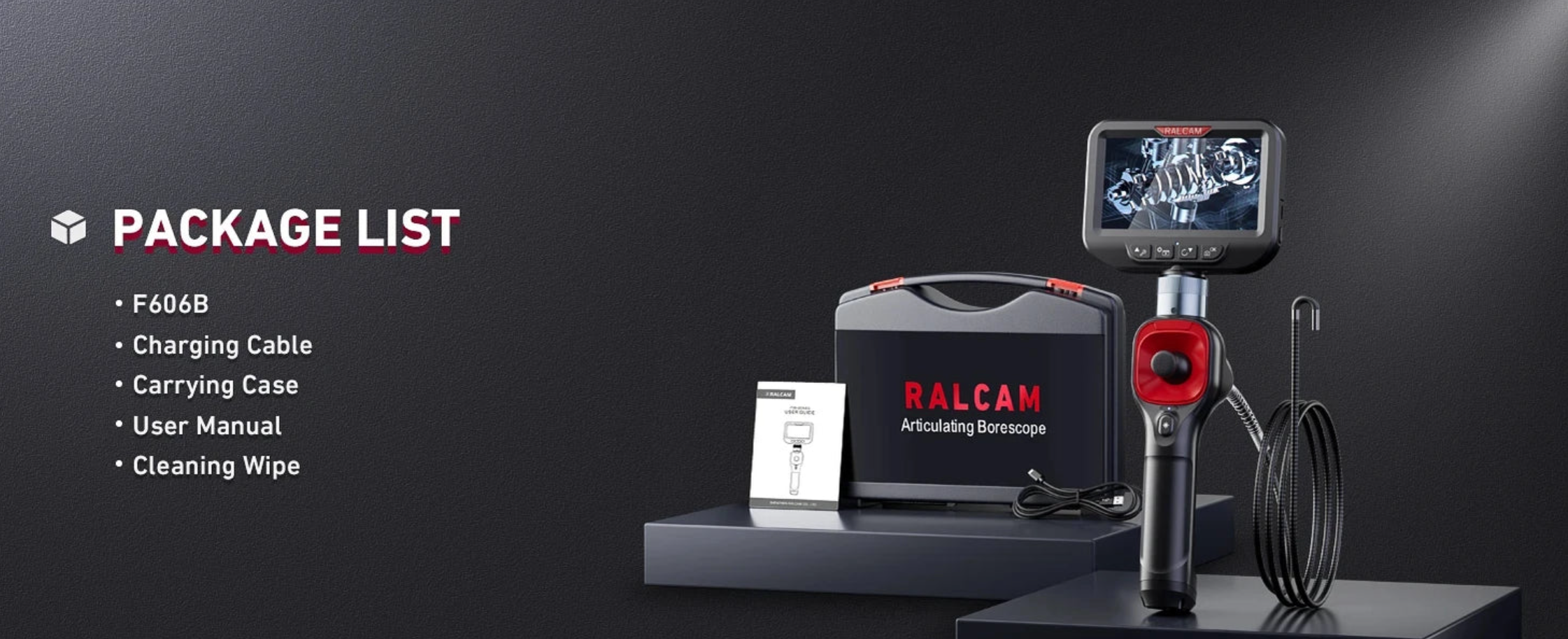

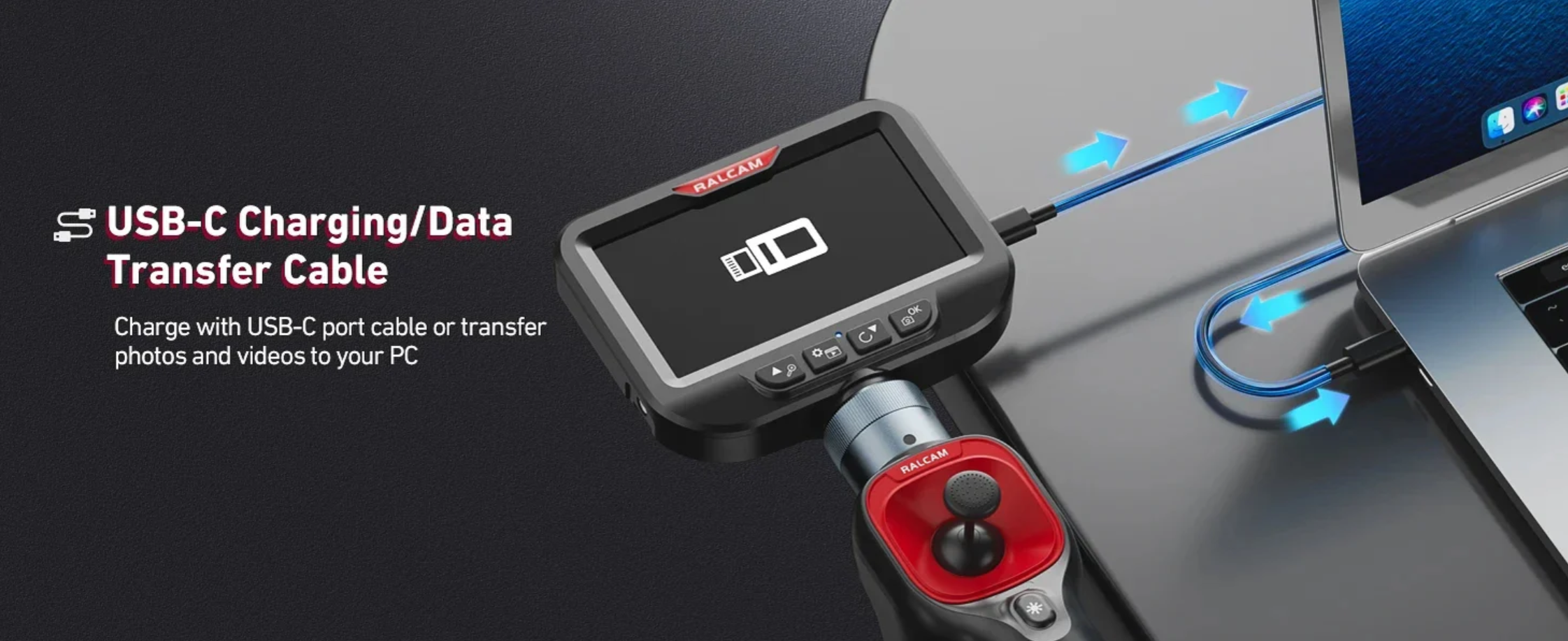

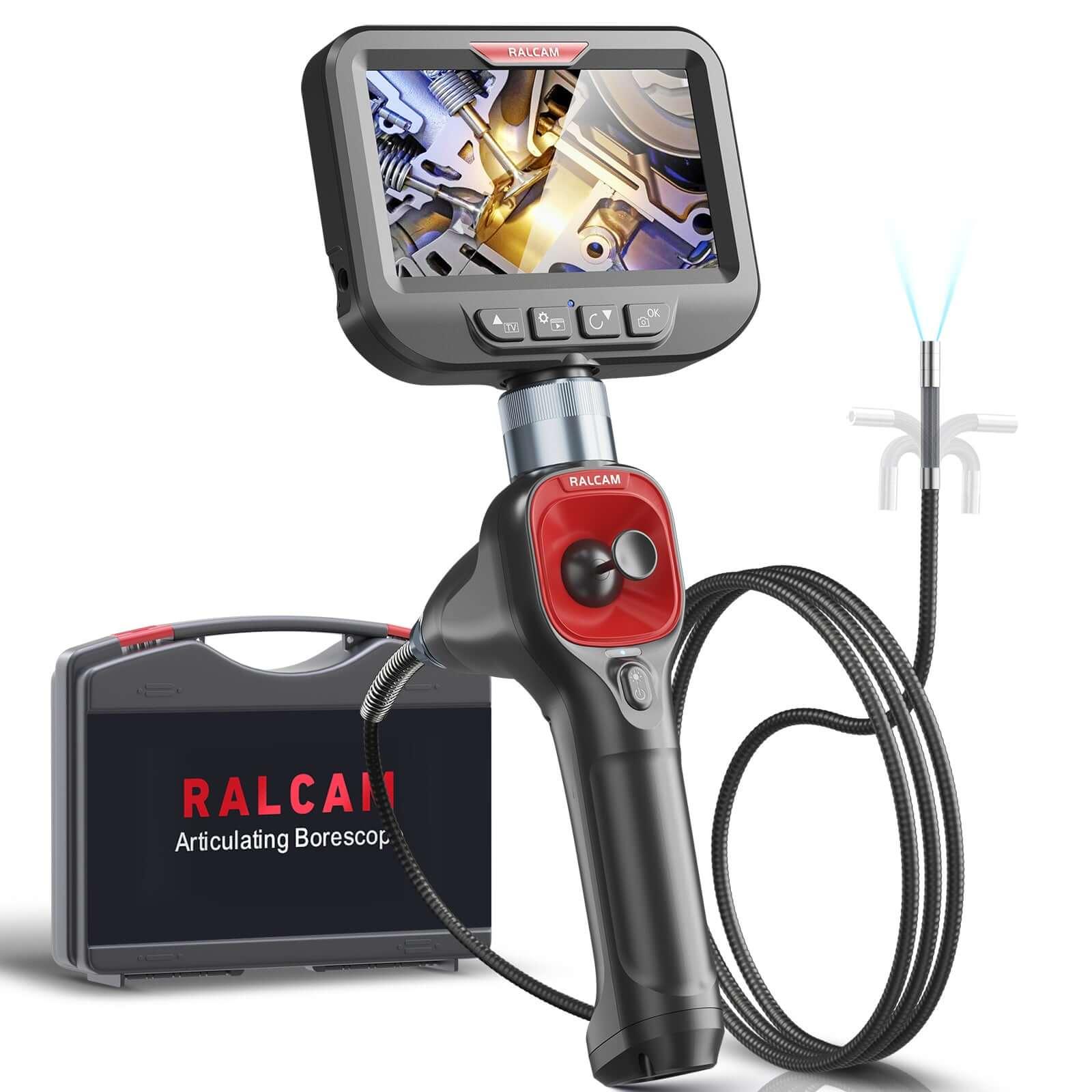

The unit is supplied in a tough, protective case and includes a USB data transfer and charging cable.
The 1-year warranty provides peace of mind for users, covering any defects or malfunctions during the initial year of ownership.
