CAN Data Loggers from CSS Electronics
Garage Lube has been appointed as distributors in South Africa of high-quality, CAN Bus Data Loggers from CSS Electronics in Denmark.
What are CAN and LIN?
CAN is a high-speed network used in modern vehicles and by industry for Electonic Control Units (ECUs) to communicate with each other. CAN allows many sophisticated control functions to be shared on a simple, robust 2-wire network. Vehicles also use a lower-cost, single-wire network called LIN where speed and reliability are not as important. In addition to control, the CAN network is also used to diagnose faults on the vehicle. A great deal of information can be gleaned from the CAN network such as Engine Speed, Road Speed, etc.
For more information on CAN also see our CAN Bus Test Page on our Pico Automotive Training Website.
What is a CAN Data Logger?
A CAN Data Logger connects to one or more CAN (and / or LIN) networks and records the information being transferred over the network. The information can be stored on an SD memory card and / or uploaded via USB, Wi-Fi or 3G or 4G GSM (the Cell Phone Network) to your server. CAN Data can be filtered to provide only data of interest or all data can be recorded.
Who uses CSS CAN Data Loggers?
CSS CAN Data Loggers are supplied around the world. Examples of leading organisations that use these products are: Volkswagen, Bosch, Liebherr, Nissan, Siemens, JCB, Toyota, Continental, Hyundai, Cummins, CERN and John Deere.
Applications of CAN Data Loggers
As seen from the list of promenent OEMs that use these products, applications are diverse and range from automtove, fleet management, vehicle telematics, reverse engineering and many others. Here are a few ideas to consider.

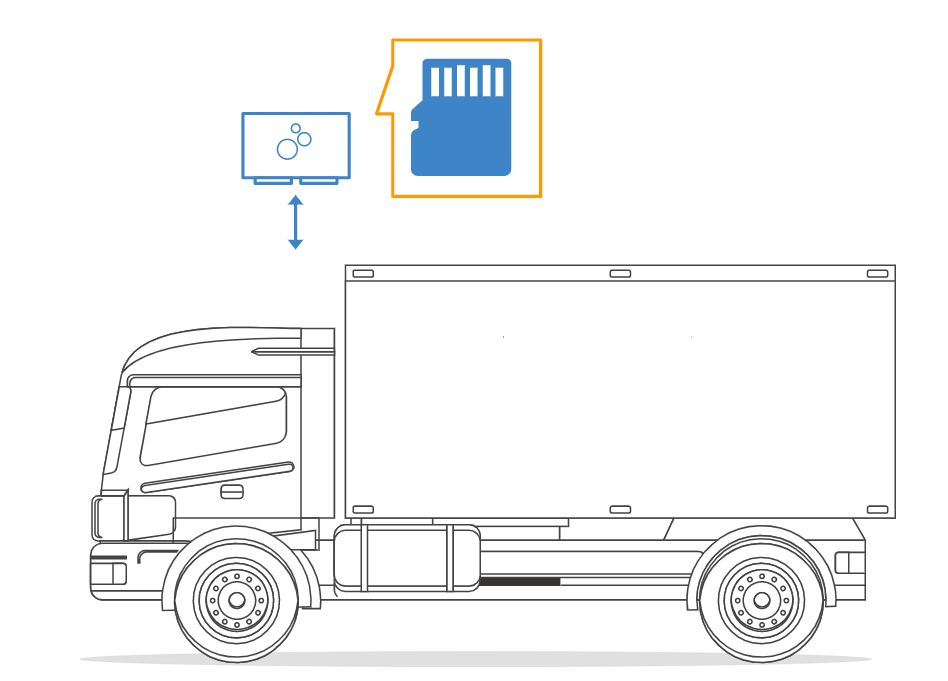

Vehicle Black Box
Do you need to monitor data from your vehicle fleet?

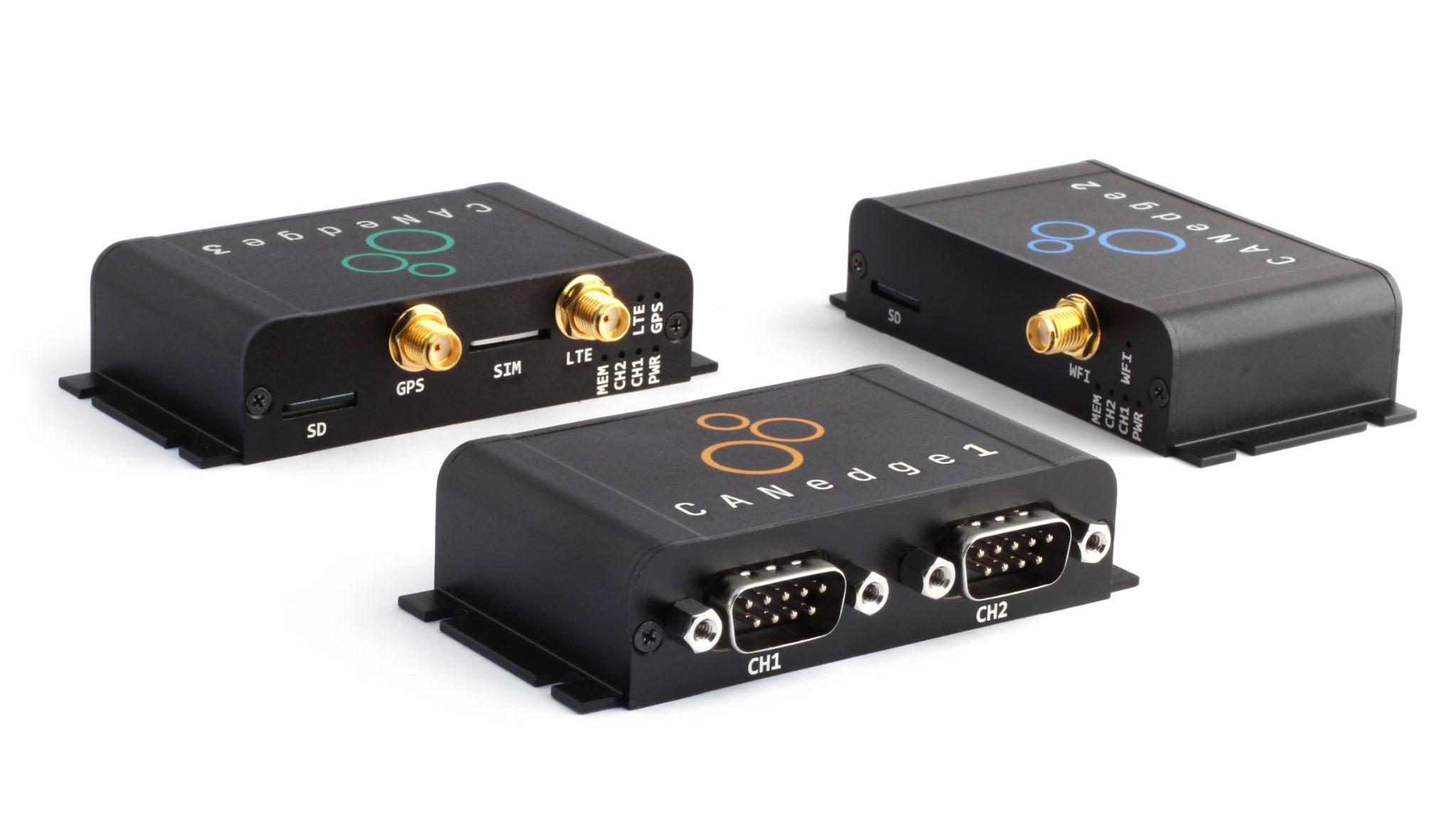

The CANedge1 is an ideal tool for recording data over long periods of time from fleets, including cars (via OBD2) and heavy-duty vehicles (via J1939).
With filters, compression & cyclic logging you can log years of data. Ideal for e.g. warranty/legal data storage or optimisation.

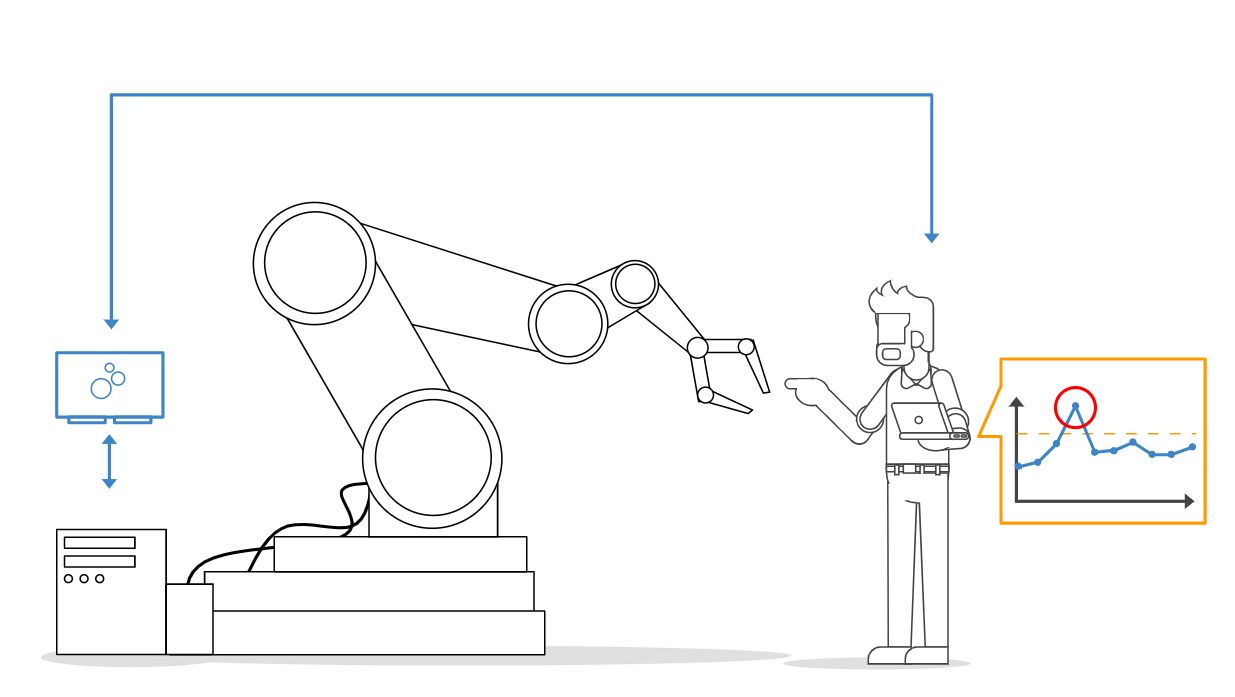

Intermittent Faults
Finding that elusive, critical problem.
If you have, e.g. production equipment that periodically exhibits an issue, the CANedge1 is a great diagnostics tool. Simply connect it and leave it in. If the issue occurs, you can extract the raw data, DBC convert it and plot it for quick diagnostics.
DBC: (Database CAN) is a file that describes CAN data and is used to decode raw CAN Data into values that you can understand and read.

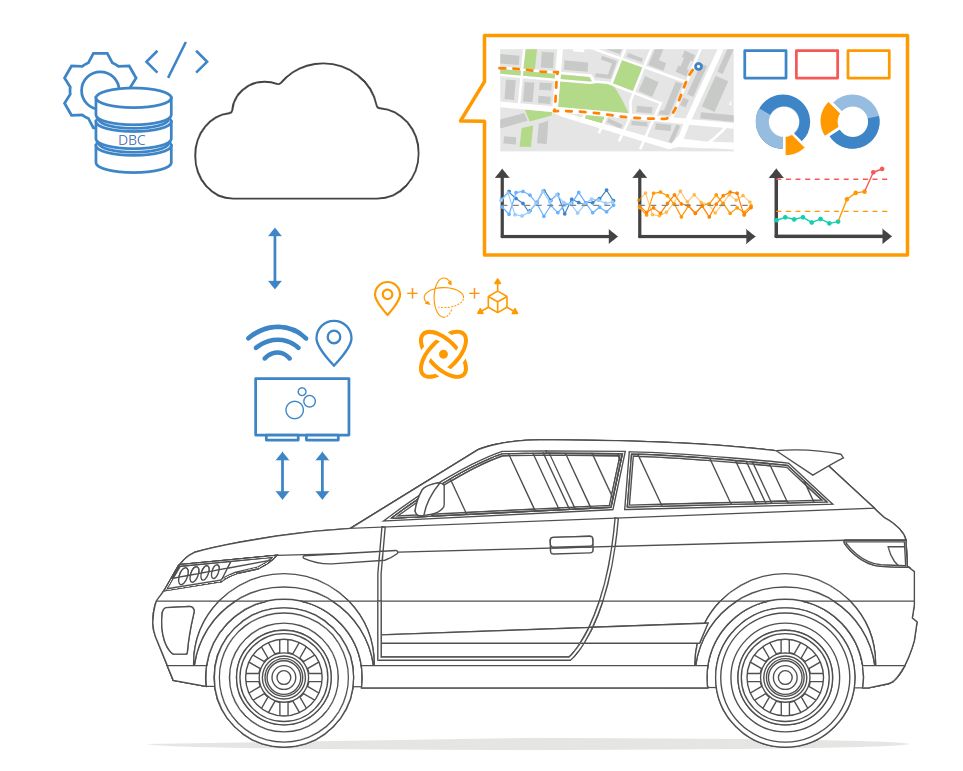

Vehicle Telematics
Do you need to monitor & optimize a vehicle fleet in near real-time?
For 'on-road' upload of data, the CANedge3 can upload data via 3G/4G to e.g. your own AWS S3 cloud server.
Alternatively, the CANedge2 can upload data when the vehicle periodically returns to, e.g. a garage Wi-Fi network. Ideal for OBD2 logging, truck fleet management, predictive maintenance and more.

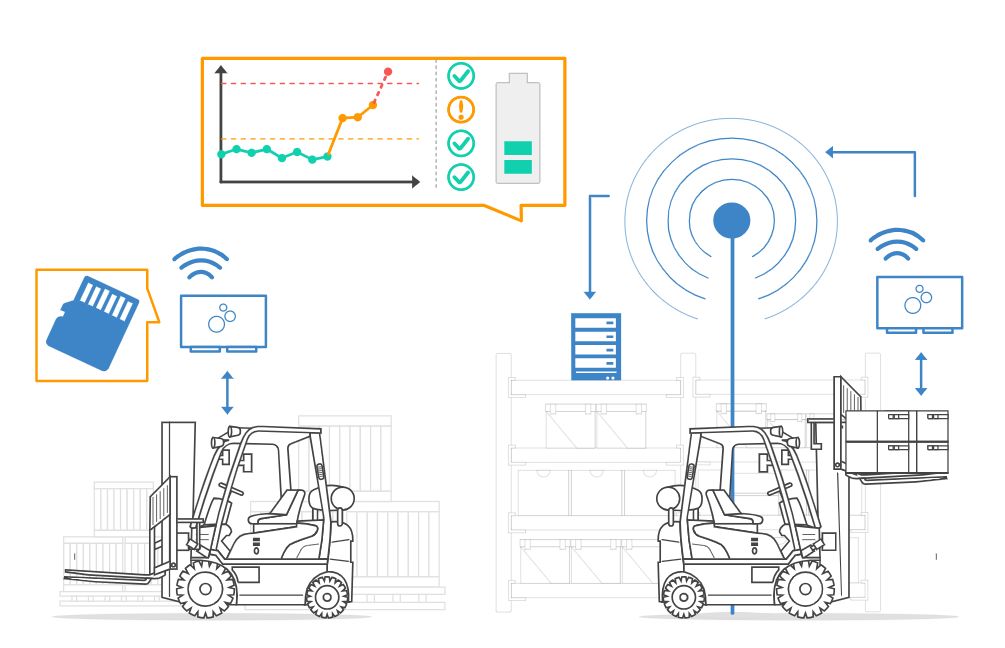

Warehouse Fleet Management
Do you need to monitor a fleet of AGVs or forklifts in a warehouse?
For site managers or OEMs, the CANedge2 can be used to collect data from AGV or forklift fleets, e.g. for optimising battery management.
The device has a large Wi-Fi range and can upload via multiple Wi-Fi access points. You can choose to store the data on your local, dedicated or cloud server.
AGV: Automated Guided Vehicle.

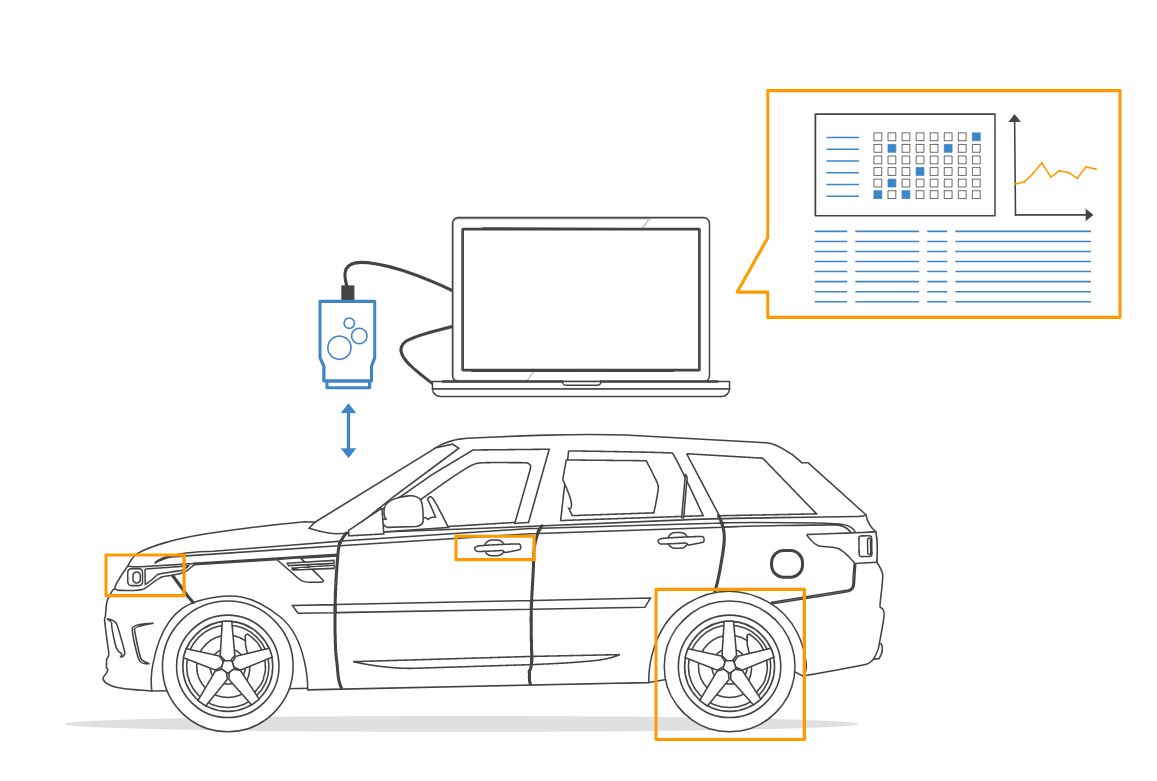

Reverse Engineering
Do you want to reverse engineer proprietary data parameters?
You may need to reverse engineer proprietary CAN data, for instance, as part of creating dashboards or custom applications.

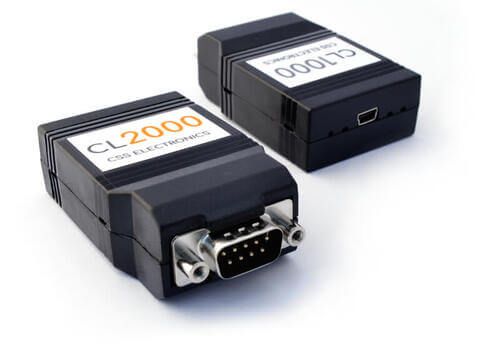

The CLX000 lets you use both data logging and USB streaming as part of decoding exercises. Further, our free Wireshark plugin provides useful tools for reverse engineering CAN data.
