4425A-099 4-Channel Off-Highway Kits

4425A-099 Off-Highway Kits

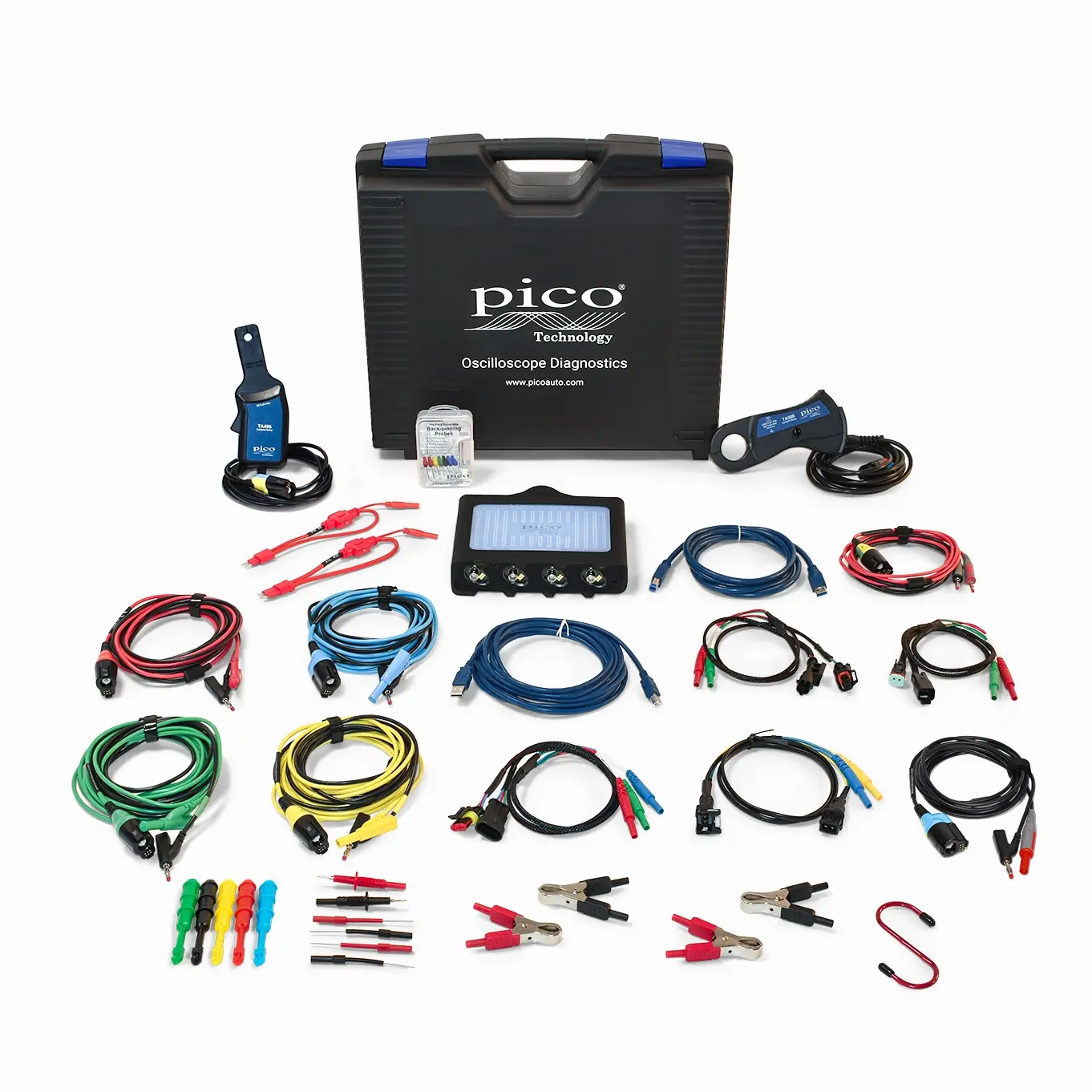

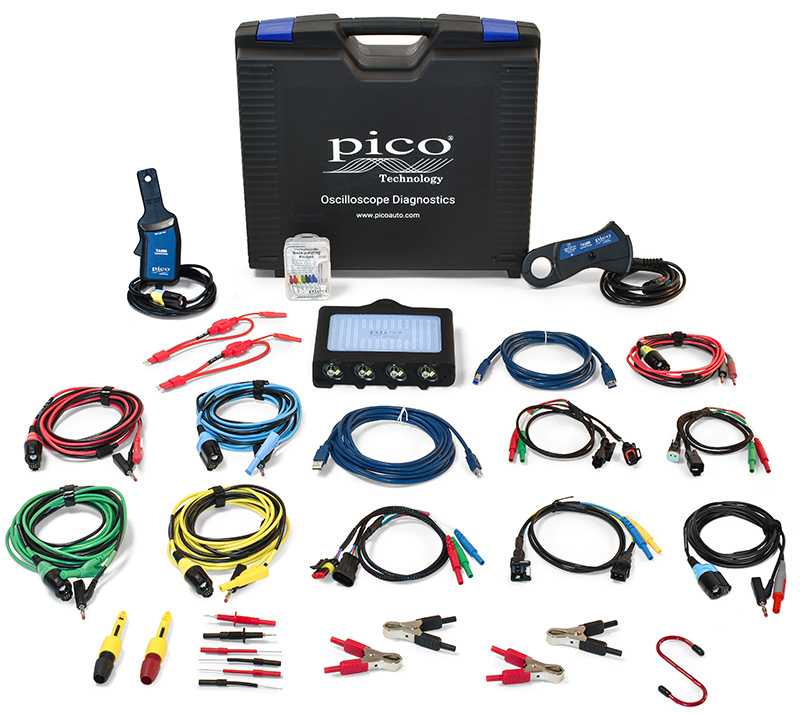

4425A-099 4-Channel Off-Highway Entry Kit

PICO-PQ324

The off-highway kits are designed for mining, earthmoving and agricultural applications and feature the even more rugged off-highway PicoScope. The Entry Kit is similar to the Diesel Kit and is supplied in a case for portability.

R 59,057.00 ex VAT

R 8,858.55 VAT

R 67,915.55 inc VAT

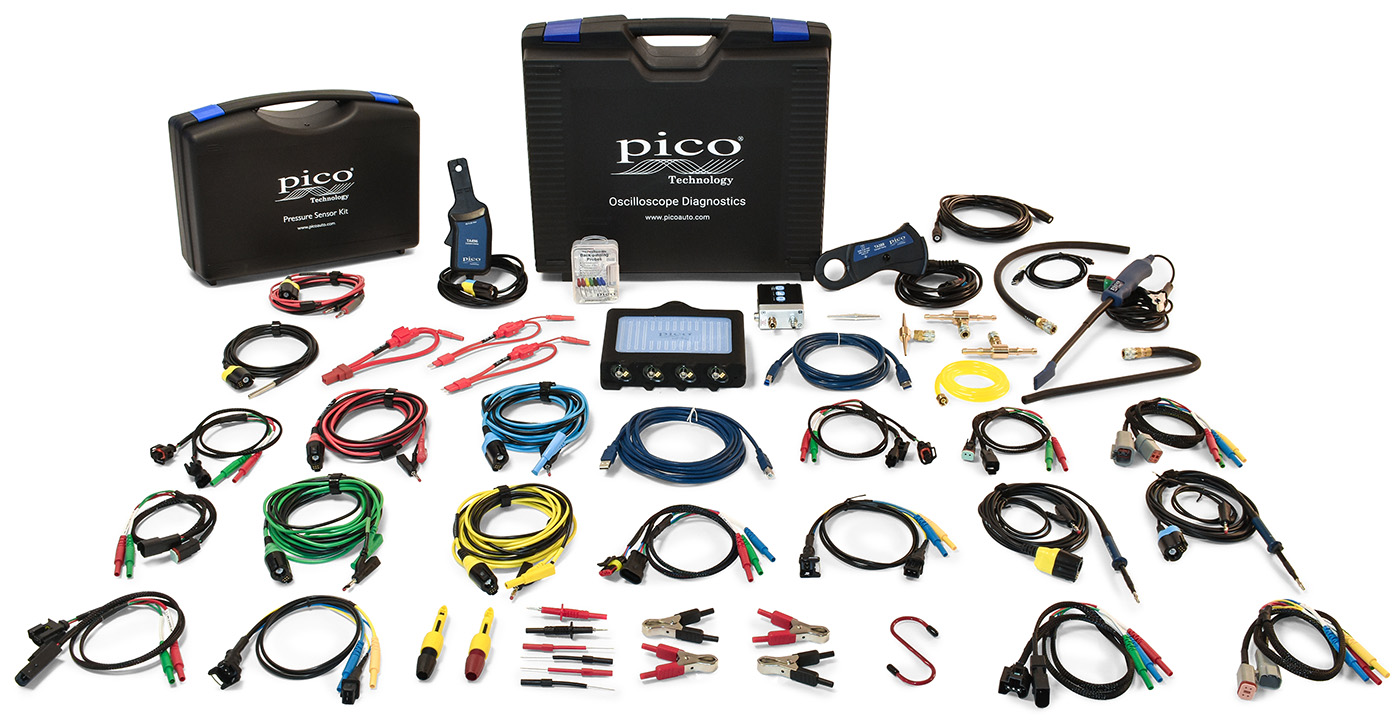

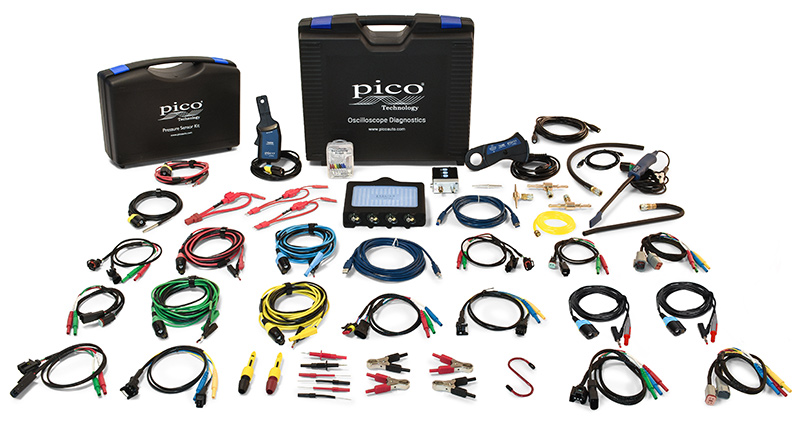

4425A-099 4-Channel Off-Highway Expert Kit

PICO-PQ331

The off-highway kits are designed for mining, earthmoving and agricultural applications and feature the even more rugged off-highway PicoScope. The Expert Kit is similar to the Diesel Kit but has a WPS500X Pressure Kit in a separate case and more accessories. It is supplied in a case for portability.

R 94,354.00 ex VAT

R 14,153.10 VAT

R 108,507.10 inc VAT

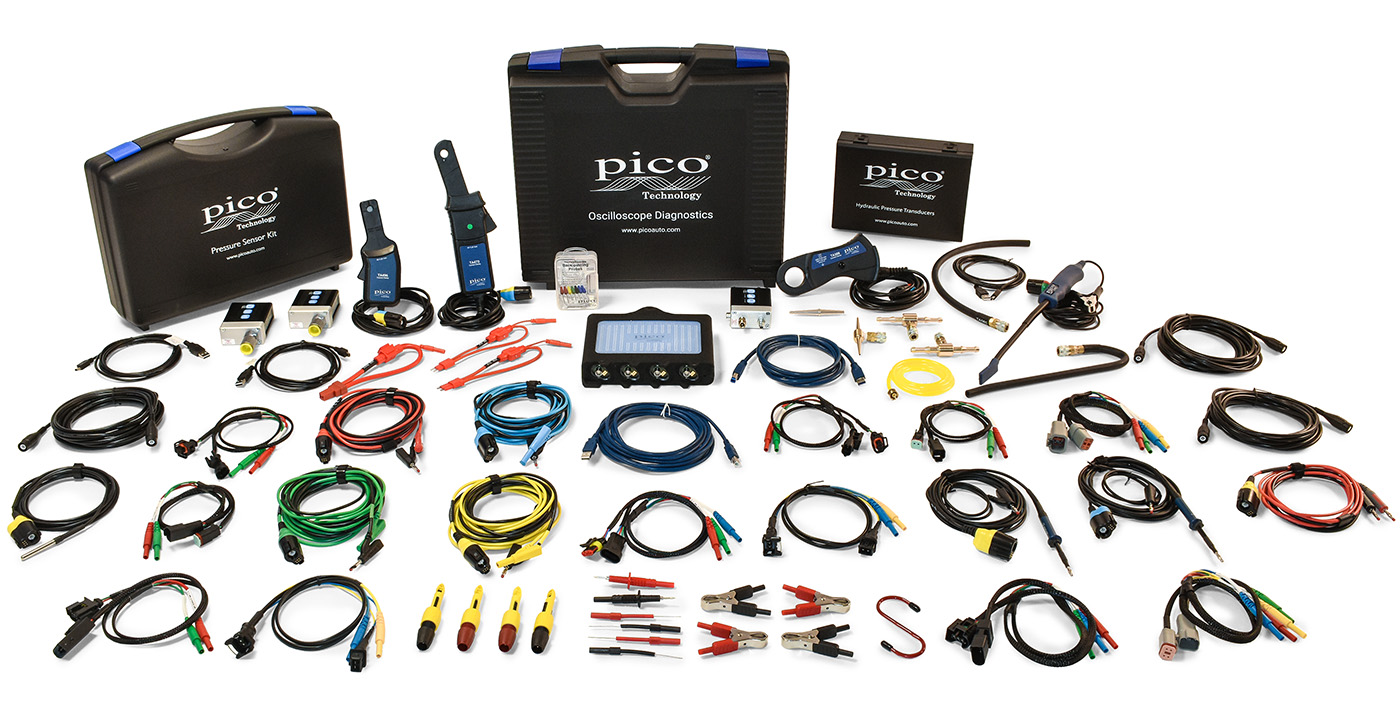

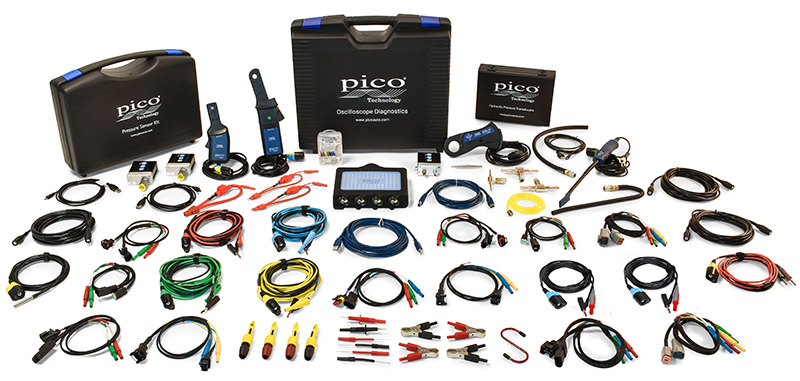

4425A-099 4-Channel Off-Highway Elite Kit

PICO-PQ332

The off-highway kits are designed for mining, earthmoving and agricultural applications and feature the even more rugged off-highway PicoScope. The Elite Kit is an upgrade of the Expert Kit and has two WPS600C 600 bar hydraulic pressure sensors in a separate case and even more accessories. It is supplied in a case for portability.

R 134,760.00 ex VAT

R 20,214.00 VAT

R 154,974.00 inc VAT

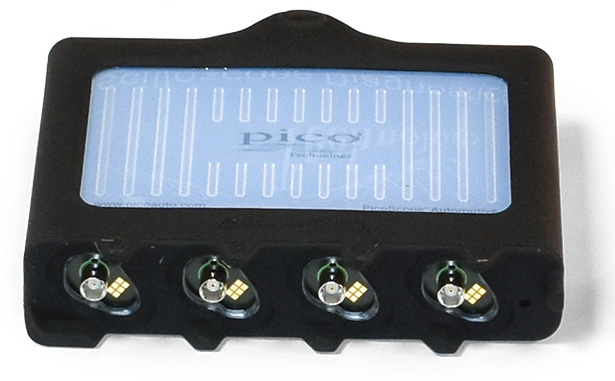

4425A-099 4-Channel Off-Highway PicoScope Only

PICO-PQ333

The off-highway PicoScope is functionally identical to the standard 4425A but is enclosed in a stronger rubber surround.

R 30,616.00 ex VAT

R 4,592.40 VAT

R 35,208.40 inc VAT

We are particularly pleased to have launched a set of Off-Highway Kits suitable for Heavy-Duty vehicle and Off-Highway (HD-OH) equipment testing.

We have added five Off-Highway videos to our PicoScope training website, which show how invaluable a PicoScope is for off-road diagnostics.

These kits have been created for fault diagnosis on trucks, tractors, forklifts, boats, combine harvesters, excavators and more. The successful application of our products to these vehicles has been widely demonstrated by the many related case studies published on our website and in our newsletters, as well as by our growing HD-OH support forum and community.

A more robust PicoScope

The kits contain a modified PS4425A PicoScope (PICO-PR437), which has additional protection to better withstand off-highway conditions. The included accessories help users to connect quickly and carry out non-intrusive and non-invasive measurements easily on a wide variety of systems and components found in these vehicles.

10 New Guided Tests

In support of these Off-Highway Kits, we will be releasing an initial set of ten HD-OH Guided Tests in our PicoScope software. The tests include information and materials to help HD-OH technicians start their oscilloscope diagnostics journey. Specifically, the tests cover 24 V battery, Bosch Denoxtronic, J1939 communications, engine and hydraulic system and component testing.

Off-Highway Kit Contents

Item	Description	Scope	Entry	Expert	Elite
DO336	PicoScope 4225A and 4425A Safety Guide	1	1	1	1
PR437	Off-Highway PS4425A-099	1	1	1	1
TA155	USB 3 Cable Blue 1.8 m	1	1	1	1
PA052	Small Carton - Printed with Pico branding	1	0	0	0
PA038	Telescopic Pack: 45x45mm, Length 80-120 mm	0	2	2	2
TA157	Battery clip 4mm socket (red)	0	2	2	2
TA158	Battery clip 4 mm socket (black)	0	2	2	2
TA161	Flexible back-pinning probe (black)	0	2	2	2
TA162	Flexible back-pinning probe (red)	0	2	2	2
TA012	2-pin Breakout Lead	0	1	2	2
TA190	Breakout Lead 2-pin ACS	0	1	2	2
TA192	Breakout Lead 2-pin Deutsch DTxx-2	0	1	2	2
TA499	PicoBNC+ Automotive 10:1 Scope Probe	0	1	2	2
TA007	Insulation Piercing Clip Set — Red and Black	0	1	1	2
MI121	USB2 4.5 m Cable	0	1	1	1
MI168	S Hook	0	1	1	1
PA209	4425A Standard Kit Carry Case	0	1	1	1
TA001	Multimeter-style Test Probe (Black)	0	1	1	1
TA002	Multimeter-style Test Probe (Red)	0	1	1	1
TA008	Electronics Acupuncture Probes	0	1	1	1
TA034	Breakout Lead for ATC-style Fuses	0	1	1	1
TA035	Extension Lead for Mini-style Fuses	0	1	1	1
TA267	Breakout Lead 3-pin Amp Superseal	0	1	1	1
TA388	PicoBNC+ Current Clamp 200 A/2000 A AC/DC 150 V	0	1	1	1
TA432	PicoBNC+ Resistance Test Lead	0	1	1	1
TA475	PicoBNC+ Test Lead: 4 mm permanent ground 5 m Blue	0	1	1	1
TA476	PicoBNC+ Test Lead: 4 mm permanent ground 5 m Red	0	1	1	1
TA477	PicoBNC+ Test Lead: 4 mm permanent ground 5 m Green	0	1	1	1
TA478	PicoBNC+ Test Lead: 4 mm permanent ground 5 m Yellow	0	1	1	1
TA496	PicoBNC+ 60 A Compact Current Clamp	0	1	1	1
TA142	Foster 2 Series Quick Coupler Female to ¼ NPT Male	0	0	3	3
TA081	Cable: USB A Male to Mini 5-pin 2 m	0	0	1	3
TA130	Cable: Insulated BNC to Insulated BNC 5 m	0	0	1	3
DO157	Manual: WPS500X Pressure Transducer	0	0	1	1
PA094	Carry Case: WPS500X Compression Adaptors	0	0	1	1
TA071	WPS500X Low Pressure Transducer - calibrated & labelled	0	0	1	1
TA085	Vacuum Hose for WPS500X Pressure Transducer	0	0	1	1
TA086	Bleed Hose for WPS500X Pressure Transducer	0	0	1	1
TA087	Exhaust Adaptor for WPS500X Pressure Transducer	0	0	1	1
TA129	Universal Vacuum Adaptor	0	0	1	1
TA168	Extension Lead for JCASE Fuse	0	0	1	1
TA191	Breakout Lead 3-pin Kostal	0	0	1	1
TA193	Breakout Lead 4-pin Deutsch DTxx-4	0	0	1	1
TA194	Breakout Lead 2-pin Kostal	0	0	1	1
TA205	Breakout lead 4-pin Large Deutsch DTPxx-4	0	0	1	1
TA226	Brass Vacuum Tap for WPS500X	0	0	1	1
TA235	Brass Fuel Hose Pressure Tap: small	0	0	1	1
TA236	Brass Fuel Hose Pressure Tap: medium	0	0	1	1
TA395	PicoBNC+ Wide-range Linear Temperature Probe	0	0	1	1
TA398	PicoBNC+ COP Probe	0	0	1	1
TA092	WPS600C Pressure Transducer 60/600 Bar	0	0	0	2
DO187	WPS600 User Guide	0	0	0	1
PA059	Medium Carton — unbranded	0	0	0	1
PA156	Dual WPS600 Small Carry Case	0	0	0	1
TA473	PicoBNC+ Current Clamp: 60 A AC/DC	0	0	0	1
