Features

• 20,000 Counts (4½ digits) e.g. 19.999 V
• Dual, simultaneous readings — e.g. AC voltage and Frequency
• Accurately measures:
  • AC / DC Voltage and Current
  • Resistance
  • Temperature (Thermocouple included)
  • Capacitance
  • Frequency
  • Duty Cycle

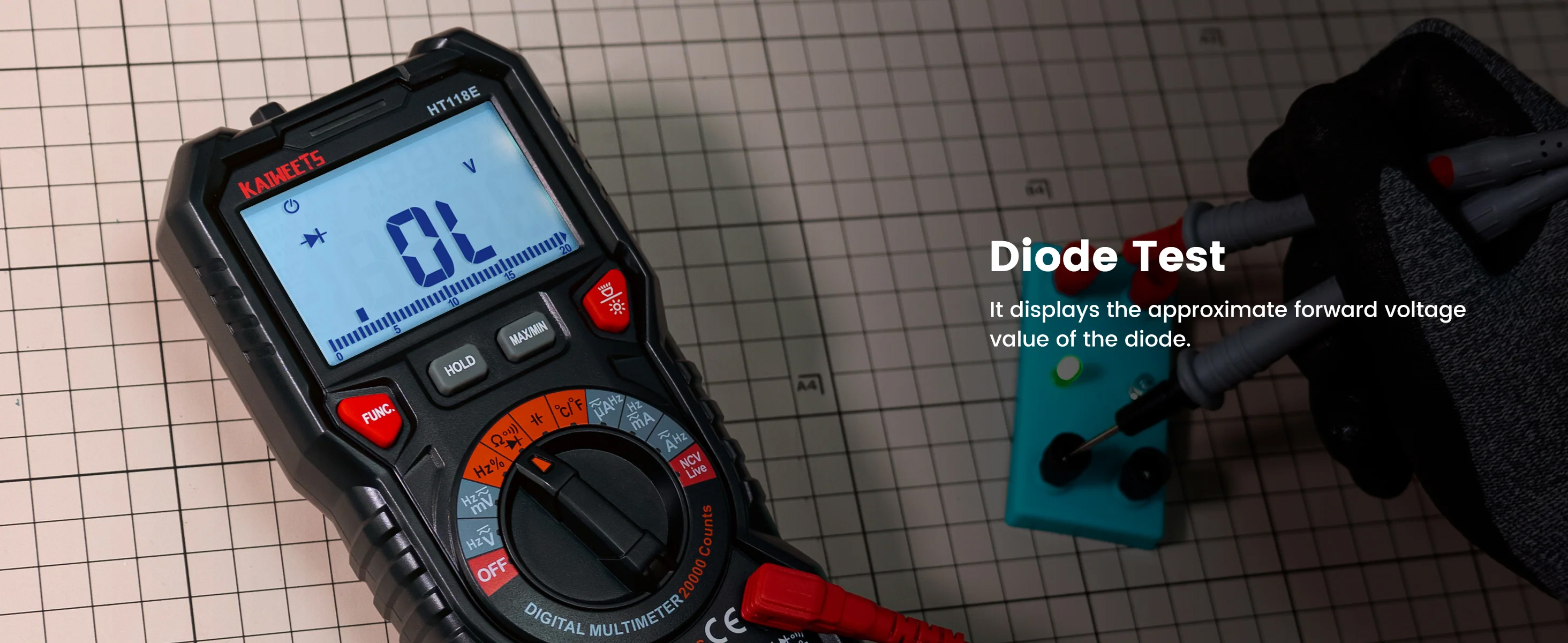

  • Diodes

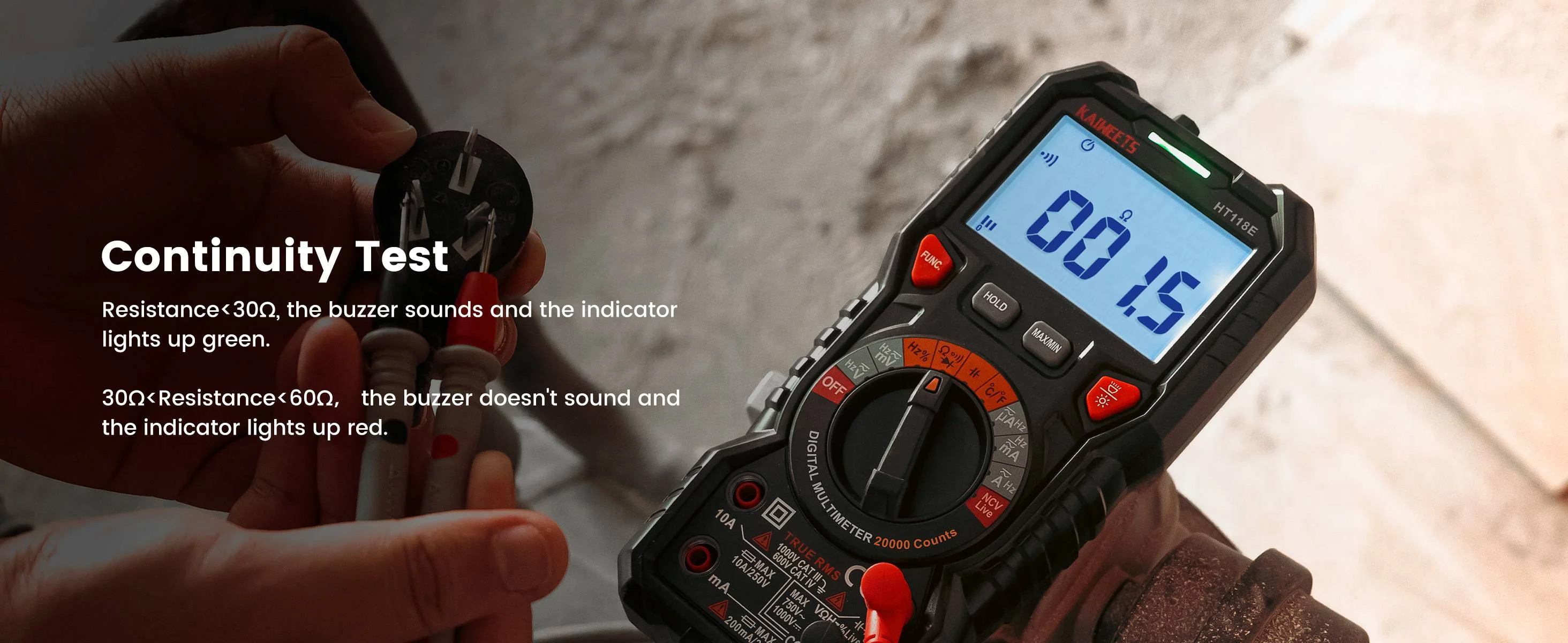

  • Continuity

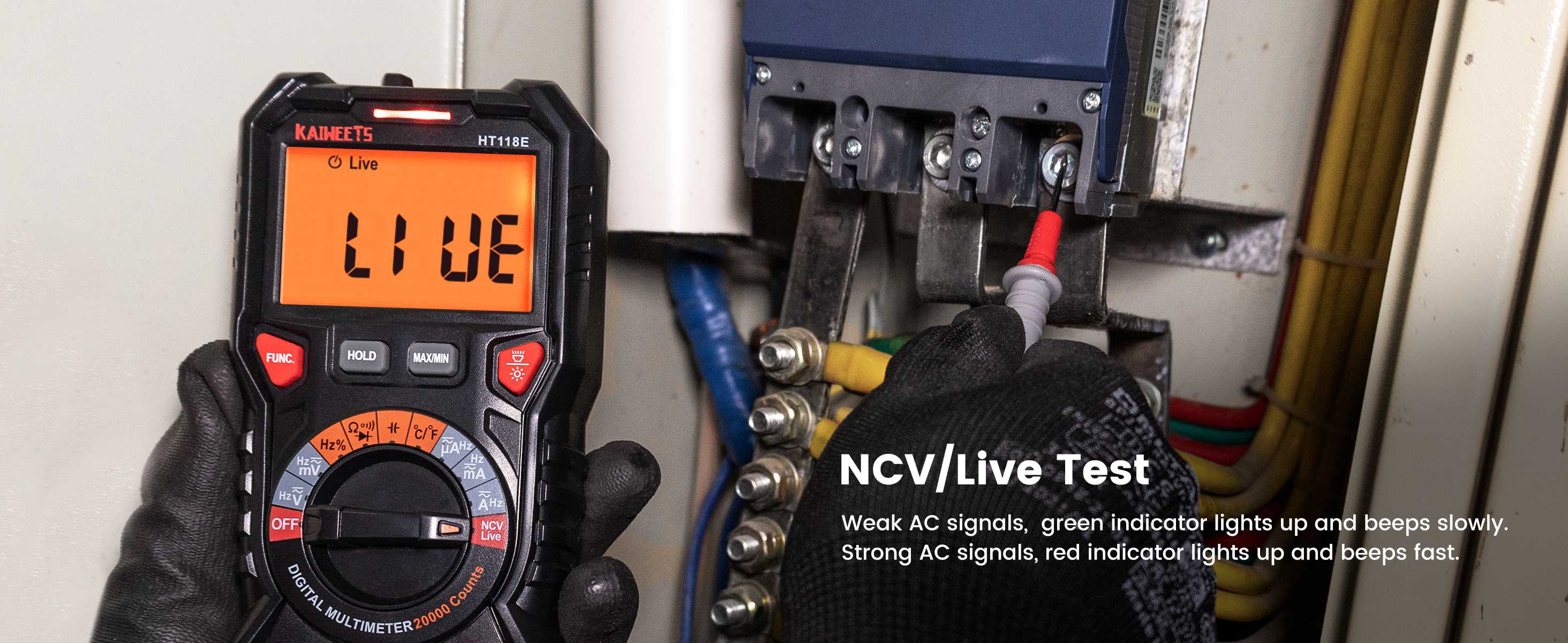

  • NCV with Sound and Light Alarm
• Built-in antenna for contactless detection of AC signals (mains)
• Single Probe AC mains live detection
• Backlit Display changes colour when a high voltage or current is being tested
• Built-in Torch allows testing in dimly lit places
• Sockets light up to indicate Correct Lead Position for Range Selected
• Min / Max to record signal fluctuations
• Stable Kickstand
• Low Battery Prompt
• Data Retention
• Rear probe holders
• Auto Power-off
• Silicon protective surround

• IEC Rated CAT III 1000V, CAT IV 600V, CE, RoHS certified
• Anti-Burn with double ceramic fuse and thermistor protection circuit
• High Voltage Protection is active on all ranges
• Double-insulated

General Specifications

Display Measurements	20000 counts, True RMS
Safety / Compliance	CAT III 1,000 V; CAT IV 600 V
Maximum Voltage	DC 1,000 V / AC 750 V
Fuse protection	μA / mA: F200mA / 250V Fuse
	1O A: F1OA / 250V fuse
Measurement Speed	Three times per second
Range	Auto
Battery	2 x 1.5 V AA Batteries
Temperature & Humidity	Operating: 0°C ~ 40°C, < 80% RH, < 10-C non-condensing
	Storage:-10~60 °C, < 70% RH, batteries removed

Accuracy, Range and Resolution Specifications

Reference condition: environment temperature 18°C to 28°C, relative humidity not above 80%.
Accuracy: ± (% reading plus digit increments).

DC and AC Voltage

Voltage	Range	Resolution	Accuracy	Input Impedance	Max Input Voltage
DC Voltage	200 mV	10 μV	±(0.08%+5)	10MΩ	1,000 V DC
	2 V	100 μV
	20 V	1 mV
	200 V	10 mV
	1000 V	100 mV
AC Voltage	200 mV	10 μV	±(0.05%+25)	10MΩ	750 V AC
	2 V	100 μV
	20 V	1 mV
	200 V	10 mV
	1000 V	100 mV
	Frequency Response: 40Hz - 1kHz True RMS

DC and AC Current

Current	Range	Resolution	Accuracy	Overload Protection	Max Input Current
DC Current	200 μA	10 pA	±(0.5%+5)	μA / mA: F200mA / 250 V fuse	200 mA
	2 mA	100 pA
	20 mA	1 μA
	200 mA	10 μA
	10 A	1 mA	±(0.8%+15)	10 A: F10A / 250 V fuse	10 A
AC Current	200 μA	10 pA	±(0.8%+5)	μA / mA: F200mA/250 V fuse	200 mA
	2 mA	100 pA
	20 mA	1 μA
	200 mA	10 μA
	10 A	1 mA	±(1.0%+25)	10 A: F10A / 250 V fuse	10 A
	Frequency Response: 40Hz - 1kHz True RMS
Note: When measuring more than 1 A, the measurement time may not exceed 30 seconds

Resistance and Capacitance

	Range	Resolution	Accuracy	Overload Protection
Resistance	200 Ω	10 mΩ	±(1.0%+15)	250 V
	2 kΩ	100 mΩ
	20kΩ	1 Ω
	200 kΩ	10Ω
	2 MΩ	100 Ω
	20 MΩ	1 kΩ
	100 MΩ	10 kΩ	±(3.0%+25)
Capacitance	2 nF	100 fF	±(4.0%+50)
	20 nF	1 pF
	200 nF	10 pF
	2 μF	100 pF
	20 μF	1 nF
	200 μF	10 nF
	2 mF	100 nF
	20 mF	1 μF

Frequency and Duty

	Range	Resolution	Accuracy	Voltage Sensitivity	Overload Protection	Minimum Frequency
Frequency	200Hz	10 mHz	±(1.0%+30)	100 mV RMS	250 V	5 Hz
	2kHz	10 mHz
	20kHz	10 mHz
	200kHz	10 mHz
	2MHz	10 mHz		800 mV RMS
	10MHz	10 mHz	±(3.0%+30)
Duty	1%~99%	0.1%	±(3.0%+30)

Temperature

Temperature	Range	Resolution	Accuracy
°C	-40 °C - 0 °C	0.1 °C	±3 °C
	0 °C - 400 °C		±(1.0%+2°C)
	400 °C - 1,000 °C		±2.0 °C)
°F	-40 °F - 32 °F	1 °F	±6.0 °F)
	32 °F - 752 °F		±(1.0%+4°F)
	752 °F - 1,872 °F		±2.0%
