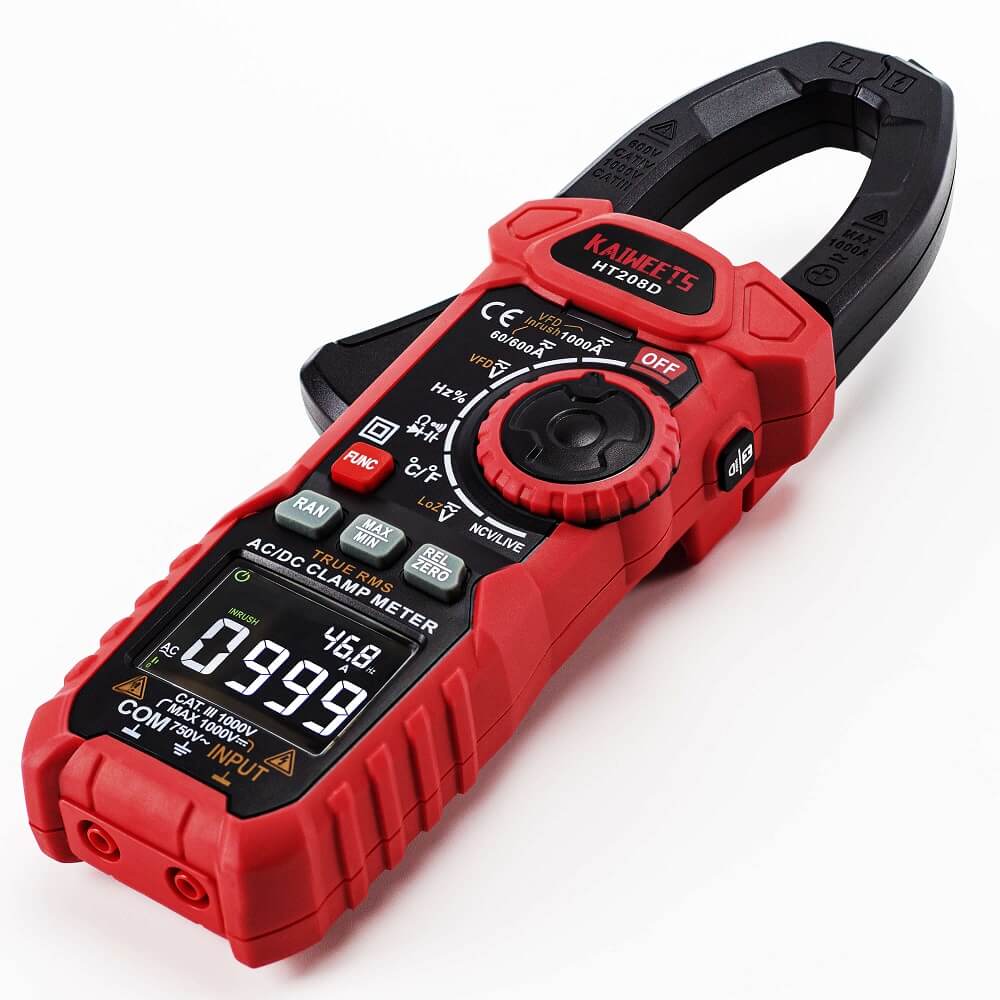

KAiWEETS HT208D 1000A Clamp Meter
The HT208D Clamp Meter Price will be added shortly.
This product is currently unavailable.
Please contact us for a quote.
This clamp meter can accurately measure 1000 Amp AC/DC Current, 1000 V AC/DC Voltage, Frequency, Duty Cycle, Resistance, Capacitance, Diode, Continuity, and Temperature. Easy-to-use for labs, factories, and households.
True-RMS, Inrush Clamp Meter
Knowing the value of inrush current can help you locate a startup problem quickly. Determine whether it is in the motor or in the starting circuit. The measuring time of the inrush current is about 100ms. The inrush function works best when the current is greater than 10 A.
The inrush function is only available in AC mode, DC current does not have the inrush function.
Specifications
| Specification | Ranges | Accuracy |
|---|---|---|
| DC Voltage | 600 mV 6 V 60 V 600 V 1000 V | ±(0.5%+3) |
| AC Voltage (True RMS) | 600 mV 6 V 60 V 600 V 750 V | ±(0.8%+3) |
| DC Current | 60 A 600 A 1000 A | ±(2.5%+5) |
| AC Current (True RMS) | 60 A 600 A 1000 A | ±(2.5%+5) |
| Resistance | 600 Ω 6k Ω 60 KΩ 600 KΩ 6 MΩ 60 MΩ | ±(0.8%+3) |
| Capacitance | 10 nF 100 nF 1 μF 10 uF 100 uF 1 mF 10 mF 100 mF | ±(3.0%+3) |
| Frequency | 10 Hz 100 Hz 1 kHz 10 kHz 100 kHz 1 MHz 10 MHz | ±(0.5%+5) |
| Duty | 1%~99% | ±(1.0%+2) |
| Temperature | -40°C-1000°C | ±(1.0%+2) |
| -40°F~1832°F | ||
| Counts | 6000 | |

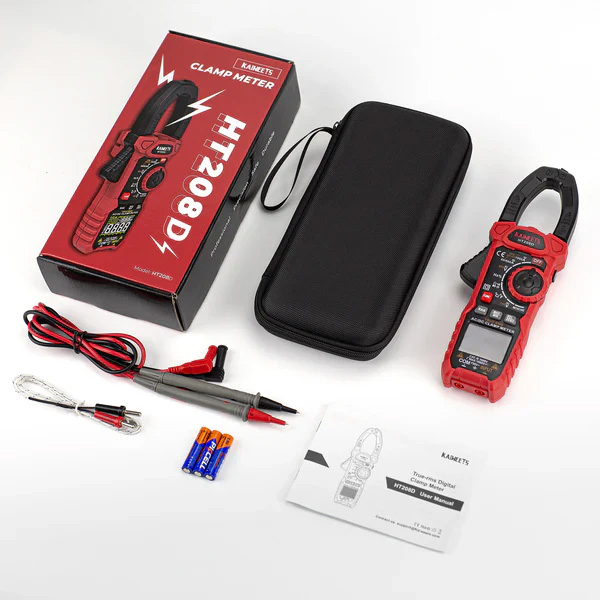

Kit Contents

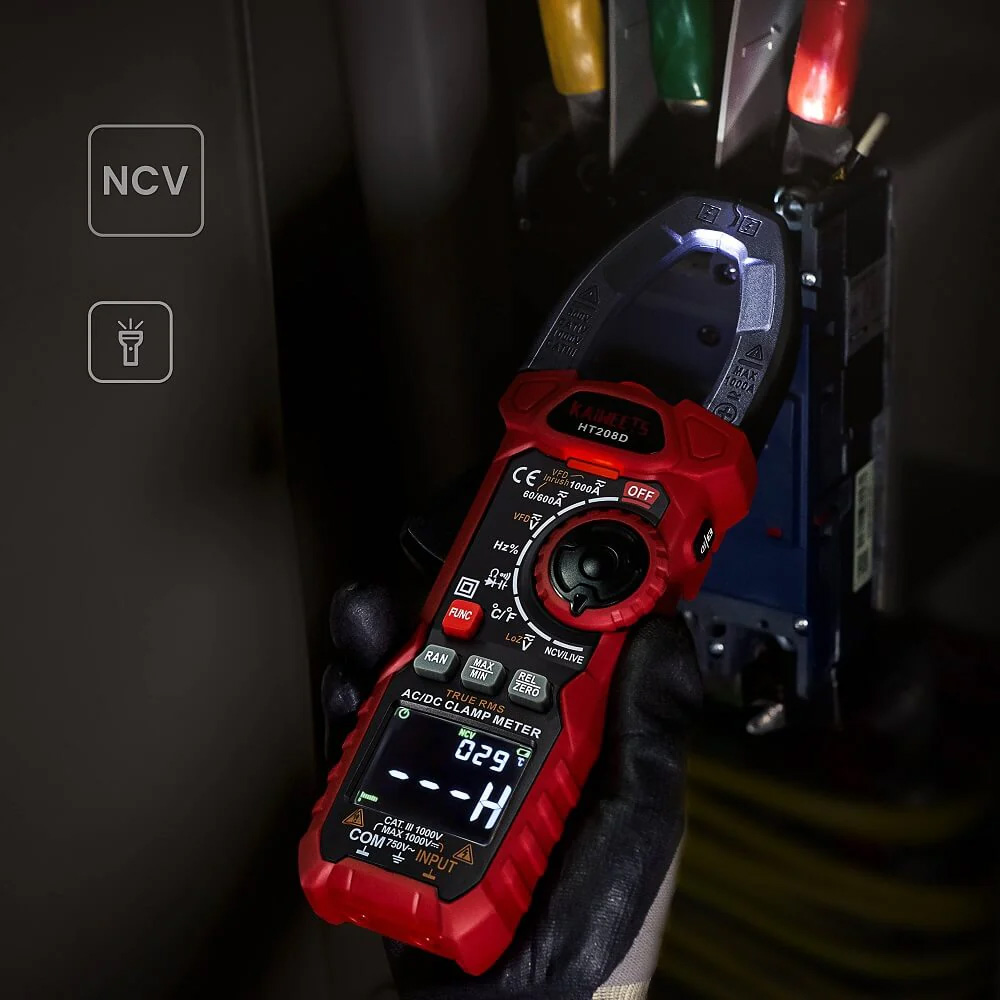

NCV Detection & LED Torch
The built-in Non-Contact Voltage (NCV) Detector can easily and quickly determine whether there is a voltage. A convenient LED torch illuminates a dimly lit area.
Advanced Functions
The Inrush Clamp Meter has Variable Frequency Drive Filtering (VFD) and low Input Impedance (LoZ) modes to suppress "phantom voltages". These features provide more reliable and higher accuracy readings, especially in industrial applications.
Perfect Choice for Car Service
KAIWEETS HT208D Clamp Meter can be a perfect choice for car service workshops or other places with challenging environmental conditions. It has basic functions which enable the measurement of AC/DC voltage, AC/DC current, resistance, capacitance, frequency, temperature, and inrush current (e.g. starter motor maximum current up to 1000 A).
Safety Service
Safety standard IEC 61010–1, CAT IV 600V, CAT III 1000V. Double insulation. Use high-quality material to prevent electric shock harm. 36-Month product service provided. 7/24 Customer Service.
Multi-Function
Accurately measure resistance, capacitance, diode, and continuity. Easy-to-use in laboratories, factories, and homes.
Range (RAN) Function
Switches to manual mode and cycles through all ranges. Auto-ranging is restored when pressed for two seconds.
AC/DC Voltage Test
Use the test leads to get the reading quickly and accurately. (Max 1000 V).
NCV Detection & LED Torch
Built-in Non-Contact Voltage (NCV) Detector can easily and quickly determine whether there is a voltage. A convenient LED torch illuminates a dimly lit area.

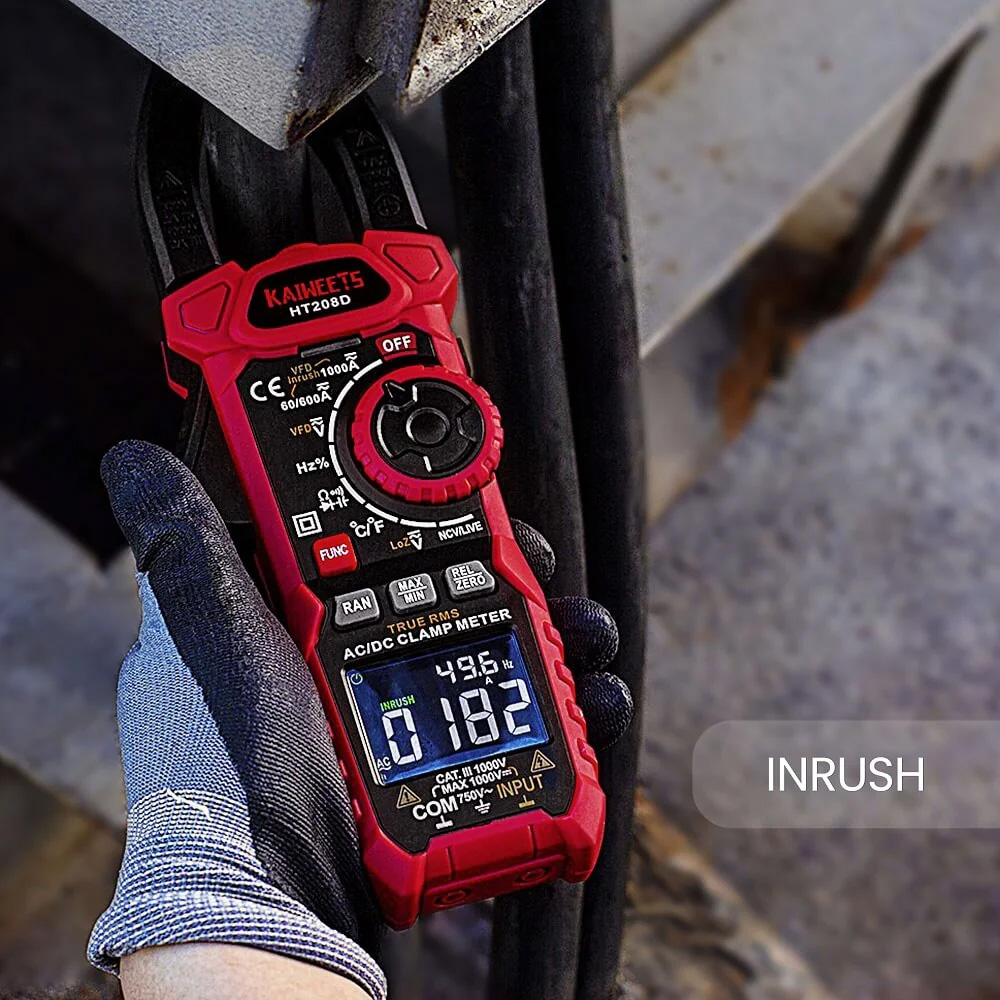

Inrush Function
Being able to measure the inrush current can help you locate a startup problem quickly, whether it's in the motor or in the starting circuit. The measuring time of the inrush current is about 100 ms.
