Insulated Torque Wrenches

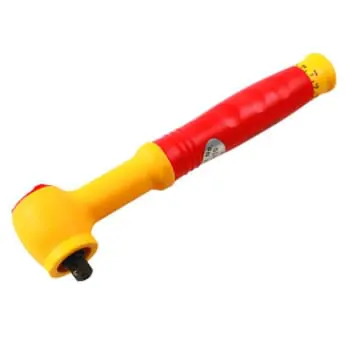

Insulated Torque Wrench 3/8" Drive 5-25Nm – VDE Certified
A fully insulated torque wrench manufactured to IEC60900 standards for 1000vAC / 1500vDC live working. Ideal for use on hybrid and electric vehicles.
- Range: 5 – 25Nm (4 – 18lb-ft).
- 43 teeth ratchet mechanism; 3/8″D x 265mm long.
- Reversible ratchet with quick release function, suitable for both RH & LH applications.
- Accuracy: ±6% tolerance from the set scale value.
- Supplied in blow mould case with calibration certificate.
- Supplied with a certificate of conformance & calibration produced at point of manufacture, as per ISO6789-1:2017

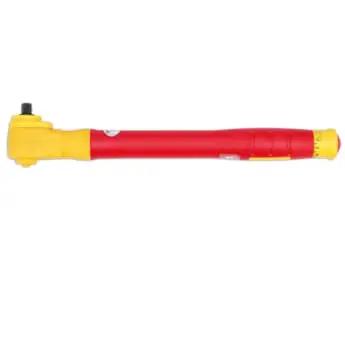

Insulated Torque Wrench 3/8" Drive – 10-60Nm
A fully insulated click type torque wrench, manufactured to IEC60900 standards for 1000vAC / 1500vDC live working, ideal for use on hybrid and electric vehicles. It features an easy to read scale, has a range of 10-60Nm, and is adjusted by a pull-out collar at the base of the handle in 0.25Nm increments.
- Range: 10 – 60Nm (0.25Nm Increments) Tolerance 4%.
- 3/8″D x 350mm long.
- Safe operator use for live voltages up to 1000V AC / 1500V DC (VDE / IEC60900 approved).
- Supplied in blow mould case with calibration certificate.
- Supplied with a certificate of conformance & calibration produced at point of manufacture, as per ISO6789-1:2017

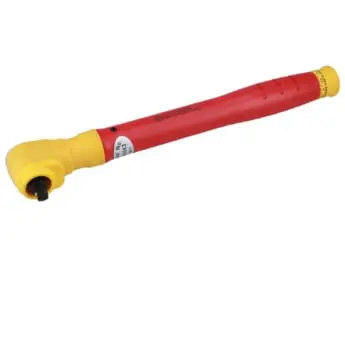

Insulated Torque Wrench 3/8" Drive – 20-100Nm
A fully insulated click type torque wrench, manufactured to IEC60900 standards for 1000vAC / 1500vDC live working, ideal for use on hybrid and electric vehicles. It features an easy to read scale, has a range of 20-100Nm, and is adjusted by a pull-out collar at the base of the handle in 0.25Nm increments.
- Range: 20 – 100Nm in 0.25Nm increments; tolerance ±4%.
- 3/8″D x 403mm long.
- Safe operator use for live voltages up to 1000V AC / 1500V DC (VDE / IEC60900 approved).
- Supplied in blow mould case with calibration certificate.
- Supplied with a certificate of conformance & calibration produced at point of manufacture, as per ISO6789-1:2017
