KAiWEETS HT208D 1000A True-RMS AC/DC Inrush Clamp Meter
KWET-HT208D Clamp Meter R 1,550.00 ex VAT
This clamp meter can accurately measure 1000 Amp AC/DC Current, 1000V AC/DC Voltage, Frequency, Duty Cycle, Resistance, Capacitance, Diode, Continuity, and Temperature. Easy to use for labs factories and households.
True-RMS, Inrush Clamp Meter
Knowing the value of inrush current can help you locate a startup problem quickly. Determine whether it is in the motor or in the starting circuit. The measuring time of the inrush current is about 100ms. The inrush function works best when the current is greater than 10A. The inrush function is only available in AC mode, DC current does not have the inrush function.
Specifications
| Specification | Ranges | Accuracy |
|---|---|---|
| DC Voltage | 600mV 6V 60V 600V 1000V | ±(0.5%+3) |
| AC Voltage (True RMS) | 600mV 6V 60V 600V 750V | ±(0.8%+3) |
| DC Current | 60A 600A 1000A | ±(2.5%+5) |
| AC Current (True RMS) | 60A 600A 1000A | ±(2.5%+5) |
| Resistance | 600Ω 6kΩ 60KΩ 600KΩ 6MΩ 60MΩ | ±(0.8%+3) |
| Capacitance | 10nF 100nF 1μF 10uF 100uF 1mF 10mF 100mF | ±(3.0%+3) |
| Frequency | 10Hz 100Hz 1kHz 10kHz 100kHz 1MHz 10MHz | ±(0.5%+5) |
| Duty | 1%~99% | ±(1.0%+2) |
| Temperature | -40°C-1000°C | ±(1.0%+2) |
| -40°F~1832°F | ||
| Counts | 6000 | |
Kit Contents
NCV Detection & LED Flashlight
The built-in Non-Contact Voltage (NCV) Detector can easily and quickly determine whether there is a voltage. A convenient LED flashlight illuminates a dimly lit area.
Advanced Functions
The Inrush Clamp Meter has Variable Frequency Drive Filtering (VFD) and low Input Impedance (LoZ) modes to supress "phantom voltages". These features provide more reliable and higher accuracy readings, especially in industrial applications.
Perfect Choice for Car Service
KAIWEETS HT208D Clamp Meter can be a perfect choice for car service workshops or other places with difficult environmental conditions. It has basic functions which enable the measurement of AC/DC voltage, AC/DC current, resistance, capacitance, frequency, temperature, and inrush current (e.g. starter motor maximum current up to 1000A).
Safety Service
Safety standard IEC 61010-1, CAT IV 600V, CAT III 1000V. Double insulation. Use high-quality material, to prevent electric shock harm. 36-Month product service provided. 7/24 Customer Service.
Multi-Function

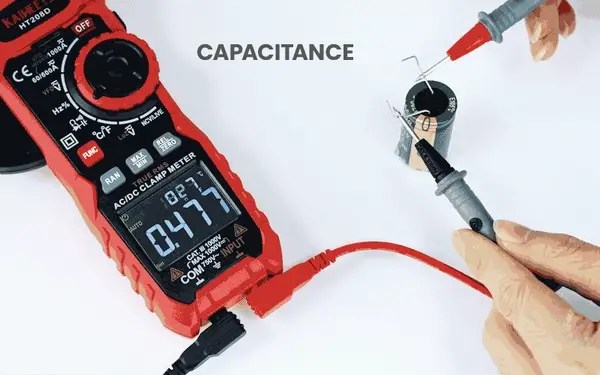

Accurately measure resistance, capacitance, diode, and continuity. Easy to use in laboratory factories and homes.
Range (RAN) Function
Switches to manual mode and cycles through all ranges. Auto-ranging is restored when pressed for two seconds.
AC/DC Voltage Test
Use the test leads to get the reading quickly and accurately. (Max 1000V).
NCV Detection & LED Flashlight
Built-in Non-Contact Voltage (NCV) Detector can easily and quickly determine whether there is a voltage. A convenient LED flashlight illuminates a dimly lit area.
Inrush Function
Bein able to measure the inrush current can help you locate a startup problem quickly, whether it's in the motor or in the starting circuit. The measuring time of the inrush current is about 100ms.
