Oscilloscope Probes

The brand new PicoBNC+™ 10:1 Scope Probe and Adaptor has a fixed x10 attenuation and is intended for both high-speed signals like CAN and FlexRay as well as for higher voltage signals, such as primary ignition.

The Probe works with the all-new, 2 and 4-Channel 4X25A PicoScopes and is automatically recognised by the PicoScope software when connected.

60MHz & 100MHz Oscilloscope Probes

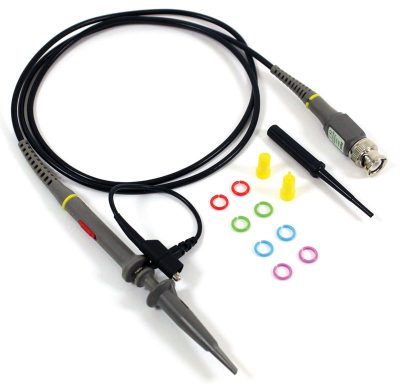

PICO-MI007 60Mhz Oscilloscope Probe

These high-quality, general purpose oscilloscope probes have sufficient bandwidth to examine high speed signals such as the control and communication busses in modern vehicles. A two-position slide switch allows attenuation of either x1 or x10 to be selected.

They are supplied with a range of accessories such as a clip used to attach the probe to the wire you are probing, a ground clip, a screwdriver used to adjust probe compensation and coloured identifiers.

This probe is particularly useful if you want to probe CAN bus and FlexRay signals.

Documentation

PICO-MI007 60MHz Oscilloscope Probe User’s Guide

25MHz 700V Differential Oscilloscope Probe x10/x100

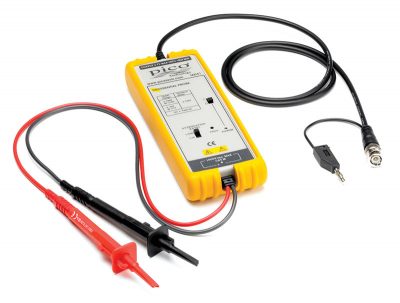

PICO-TA041 Differental Probe

The PICO-TA041 active differential oscilloscope probe lets you use a standard earthed oscilloscope to measure signals that are not referenced to ground.

Specifications
Attenuation ranges 10:1 / 100:1
Differential voltage range ±70 V (DC + peak AC)
or 70 V RMS (1/10)
±700 V (DC + peak AC)
or 700 V RMS (1/100)
Common-mode voltage range ±700 V (DC + peak AC)
or 700 V RMS (1/10 and 1/100)
Absolute maximum voltage (Differential or common-mode) ±1400 V (DC + peak AC)
or 1000 V RMS CAT III (1/10 and 1/100)
Bandwidth DC to 25 MHz (–3 dB)
Accuracy ± 2%
Rise time 14 ns
Input impedance 4 MΩ / 5.5 pF  each side to ground
Power requirements 4 x AA cells
or 6 V  / 60 mA  DC mains adaptor
Documentation

PICO-TA041 25MHz 700V Active Differential Probe User’s Guide

25MHz 1400V Differential Oscilloscope Probe x20/x200
PICO-TA057 25MHz 1400V Differential Oscilloscope Probe

The PICO-TA057 active differential oscilloscope probe lets you use a standard earthed oscilloscope to measure signals that are not referenced to ground.

Specifications
Attenuation ranges 20:1 / 200:1
Differential voltage range ±140 V (DC + peak AC)
or 140 V RMS (1/20)
±1400 V (DC + peak AC)
or 1400 V RMS (1/200)
Common-mode voltage range ±1400 V (DC + peak AC)
or 1400 V RMS (1/20 and 1/200)
Absolute maximum voltage (Differential or common-mode) ±1400 V (DC + peak AC)
or 1000 V RMS CAT III (1/20 and 1/200)
Bandwidth DC to 25 MHz (–3 dB)
Accuracy ± 2%
Rise time 14 ns
Input impedance 4 MΩ / 5.5 pF  each side to ground
Power requirements 4 x AA cells
or 6 V  / 60 mA  DC mains adaptor
Documentation

PICO-TA057 25MHz 1400V Active Differential Probe User’s Guide

PICO-MI007 60Mhz Oscilloscope Probe
60MHz Oscilloscope Probe x1/x10
Price (ex VAT):
 R 422.96
1:1/10:1 Switchable 100 MHz BNC Probe
Price (ex VAT):
 R 399.47
PICO-TA057 25MHz 1400V Differential Oscilloscope Probe
PICO-TA041 25MHz 700V Differential Probe
25MHz 700V Differential Probe x10/x100
Price (ex VAT):
 R 6,290.17
25MHz 400V Differential Probe x20/x200
Price (ex VAT):
 R 6,290.17
