Pressure School Part 1
Introduction to the Pressure Transducer

by Pico Technology
The WPS500X Pressure Transducer

As automotive technology marches relentlessly on, the demand for equally advanced test equipment (such as the WPS500X pressure transducer) and measurement techniques has increased in direct proportion.

PicoScope automotive scopes are one such example. They sit alongside any Scantool to support the diagnostic route taken by a technician to an accurate and cost effective conclusion.

Integrating the scope throughout the diagnostic journey requires yet another new skill set for the technician to grasp but the rewards pay dividends once the skills are mastered.

Whilst PicoScope and the associated software remains an essential diagnostic tool, applying the relevant accessories to any PicoScope opens up another set of applications that were once reserved to gauge sets or pressure kits. I am referring to the WPS500X Pressure Transducer.

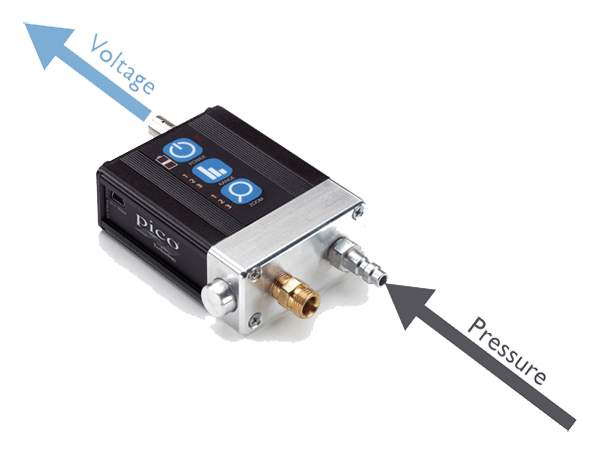

The Pico Technology pressure transducer simply converts pressure values to voltage which are then relayed to the PicoScope, allowing pressure to be displayed against time.

Think about the number of pressure gauges we keep in our typical workshop environment:

  • Vacuum, Coolant, Compression (Petrol and Diesel), Oil pressure, Boost pressure and Fuel pressure gauges, to name but a few.

The WPS500X Pressure Transducer (with an array of adaptors) has the potential to not only replace these gauges but far exceed their accuracy and reveal infinite detail about the transitions in pressure that were never visible with our typical mechanical gauges.

The compression test is one such example where using the WPS500X coupled to our PicoScope will reveal far more than the maximum compression pressure.

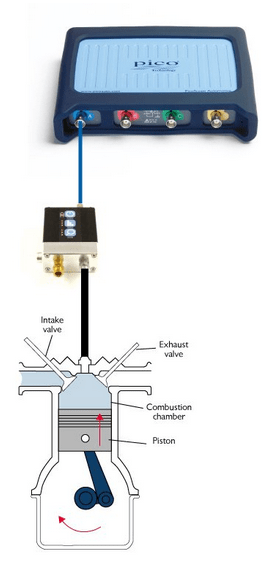

Connecting the WPS500X to a compression hose will allow for a compression measurement to be taken identical to our typical Compression tester, but with the results displayed on our scope screen rather than reading from a mechanical gauge. Setting up PicoScope to measure compression is straight forward using the Guided Tests built into the PicoScope software.

While this all sounds very clever, what are the advantages? In order to answer this question, we need to understand the waveform acquired during a typical compression test.

Test conditions:

Spark plug (Glow plug) removed, injectors disconnected and wide open throttle.

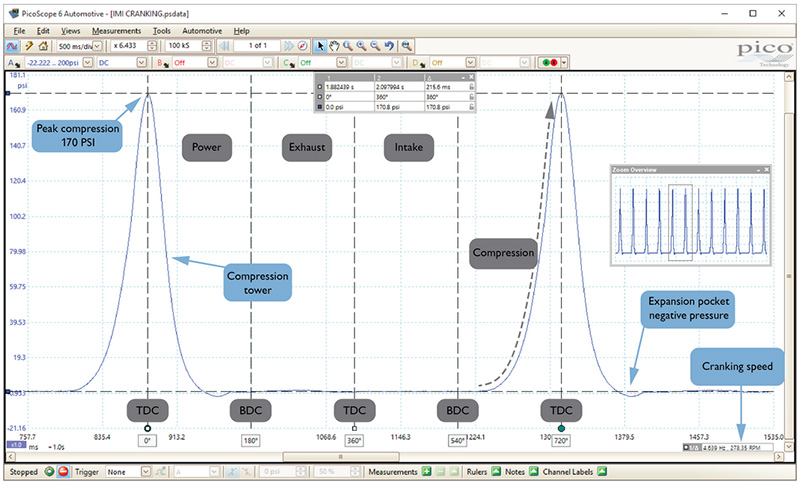

Good Compression Waveform – (Cranking WOT)

The waveform above reveals the compression peaks at 170psi as would a typical compression tester. However, we can now see repeated even compression peaks (towers) as the crankshaft rotates, and more importantly events taking place between compressions that would not be visible with a standard compression tester.

Using PicoScope we can equally divide the distance between compression events to reveal the position of the crankshaft (degrees of rotation) using our rotation markers. If we know the position of the crankshaft, we can identify each of the four stroke cycles between compressions.

Look closely at the base of each compression tower, you can see the expansion pocket dropping below the zero psi rule indicating the cylinder pressure momentarily dropped to negative (vacuum). This indicates both intake and exhaust valves remain closed with adequate sealing as the piston descends down the cylinder towards the end of the power stroke. The power stroke is referred to here as the expansion stroke as there is no combustion (the integrity of the piston compression rings and cylinder face can also be confirmed via the expansion pocket).

Using the time rulers we can also measure the time it takes (frequency) for the crankshaft to rotate 360 degrees and multiply this value by 60 to reveal the cranking speed (278 RPM).

So let’s take a step back and look at what we have discovered from a routine compression test.

As with a conventional gauge, we can confirm peak pressure to be correct for the engine under test. This is where the similarities with a conventional gauge end!

  • By using the pressure transducer, we can see uniform compression towers confirming cylinder efficiency, not only as the pressure builds but also as it naturally decays during the expansion stroke. For the compression towers to be symmetrical, the mechanical integrity of the piston/cylinder and valve gear must be efficient.
  • The presence of the expansion pocket confirms our cylinder can hold a vacuum and must, therefore, be air tight (valve seat and piston ring integrity OK).
  • Sufficient cranking speed.
  • Adequate intake and exhaust flow so achieving the correct peak pressure (no restrictions).
  • Repeatability of peak compression for every completion of the four stroke cycle.

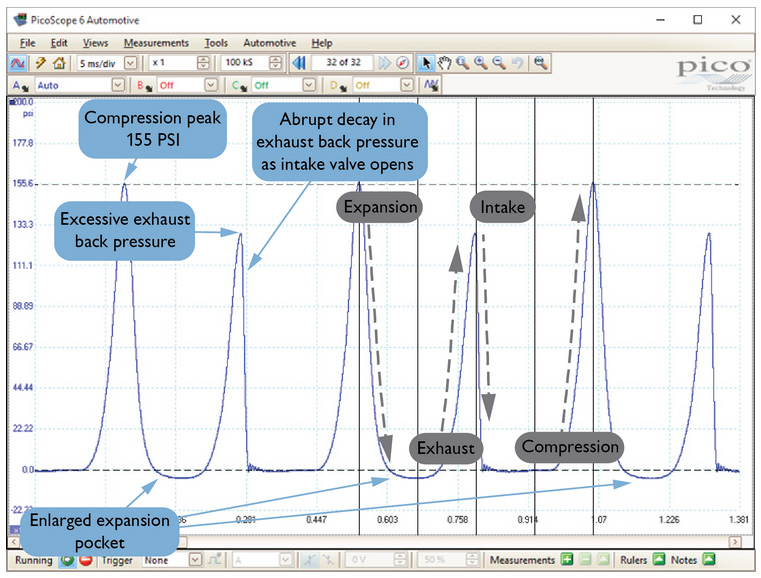

Faulty Compression Waveform

Above we can see an additional pressure peak during the exhaust event that should not be present. As the piston rises from BDC (bottom dead centre) of the expansion stroke, the exhaust valve will open to release the cylinder pressure out to the atmosphere (atmospheric pressure) via the exhaust system. The waveform indicates a pressure increase to 125 psi approximately during the exhaust stroke because the exhaust valve is not opening! In effect what we have here is another compression stroke during the 4 stroke cycle: Compression-Expansion-Compression-Intake.

Our typical compression tester cannot detect this condition and would read a normal compression value, so leading the technician away from the fault.

Looking a little deeper at the exhaust stroke we can see what looks to be another compression tower as a result of the exhaust valve remaining closed, only this time the tower is no longer symmetrical, why?

The answer lays in our knowledge of the four-stroke cycle; What stroke takes place immediately after the exhaust stroke? The intake stroke. In this scenario we have approximately 125 psi present inside our cylinder when the intake valve opens, abruptly releasing this pressure into the intake manifold, hence the rapid drop in pressure and asymmetric tower. Such an event would manifest itself as a popping sound via the intake manifold.

To conclude, the examples above highlight just a small number of the major advantages when viewing pressure against time given the accuracy and responsiveness of the transducer. The possibilities are endless given the numerous automotive applications, utilising pressure fittings we already carry in our workshops today.

In the next chapter of Pressure School, we will take a deeper look at cylinder pressure analysis but with the engine running. We will also present a number of faults revealed using the pressure transducer to assist with non-intrusive diagnosis. Saving us all time, money and tears!
